Hot offer Electronic Components 2SC5296 TO-3PF Original Transistor C5296 Intergrated Circuits In-stock 2SC5296
Manufacturer
Manufacturer Product Number
2SC5296
Description
2SC5296 Power Bipolar Transistor, 8A I(C), 800V V(BR)CEO, 1-Element, NPN
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Ultrahigh-Definition CRT Display Horizontal Deflection Output Applications Features • High speed : tf=100ns typ. • High breakdown voltage : VCBO=1500V. • High reliability (Adoption of HVP process). • Adoption of MBIT process. • On-chip damper diode. |
Product Description
| Type# | Description |
| PART# | 2SC5296 |
| Part Package Code | TO-3PML |
| Package Description | Flange Mount, R-Psfm-T3 |
| Pin Count | 3 |
| Reach Compliance Code | Unknown |
| ECCN Code | EAR99 |
| Additional Feature | High Reliability |
| Case Connection | Isolated |
| Collector Current-Max (IC) | 8 A |
| Collector-Emitter Voltage-Max | 800 V |
| Configuration | Single With Built-In Diode And Resistor |
| DC Current Gain-Min (hFE) | 4 |
| JESD-30 Code | R-PSFM-T3 |
| JESD-609 Code | e0 |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| Operating Temperature-Max | 150 °C |
| Package Body Material | Plastic/Epoxy |
| Package Shape | Rectangular |
| Package Style | Flange Mount |
| Polarity/Channel Type | Npn |
| Power Dissipation-Max (Abs) | 60 W |
| Qualification Status | Not Qualified |
| Surface Mount | No |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | Through-Hole |
| Terminal Position | Single |
| Transistor Application | Switching |
| Transistor Element Material | Silicon |

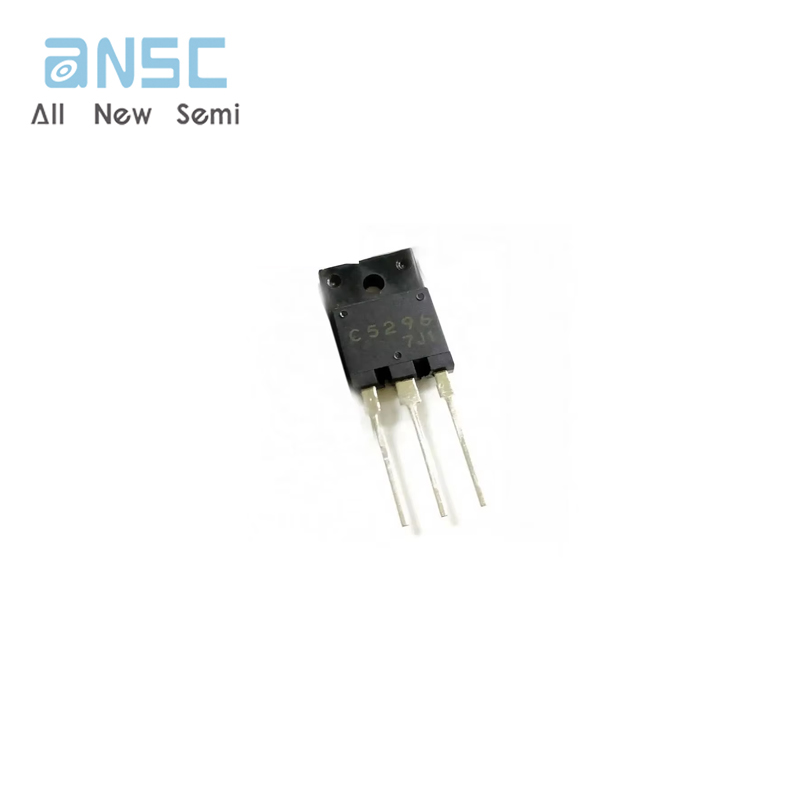

Actual image of the product
