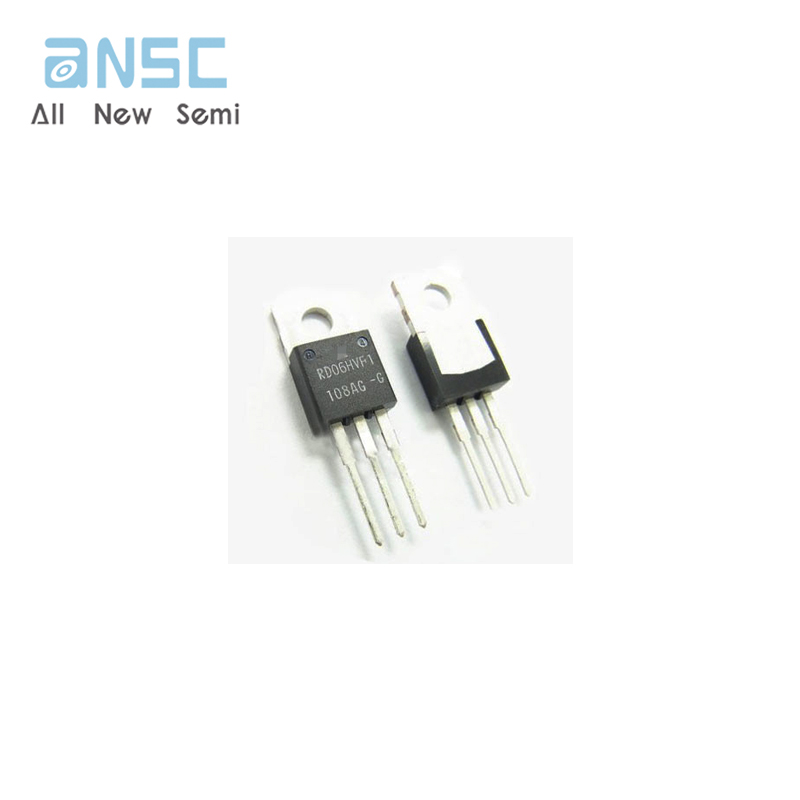

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
You can contact me for the best price electronic components BOM (Silicon MOSFET Power 175MHz 6W) RD06HVF1
Manufacturer Product Number
RD06HVF1
Description
RD06HVF1 Transistor 1-Element Very High Frequency Band Silicon N-Channel Metal-oxide Semiconductor FET
Package Condition
Original
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
DESCRIPTION
RD06HVF1 is a MOS FET type transistor specifically designed for VHF RF power amplifiers applications.
FEATURES
High power gain:
Pout>6W, Gp>13dB @Vdd=12.5V,f=175MHz
APPLICATION
For output stage of high power amplifiers in VHF band mobile radio sets.
Product Description
| Type# | Description |
| PART# | RD06HVF1 |
| Manufacturer | / |
| Package Description | FLANGE MOUNT, R-PSFM-T3 |
| Case Connection | SOURCE |
| Configuration | SINGLE |
| DS Breakdown Voltage-Min | 50 V |
| Drain Current-Max (ID) | 3 A |
| FET Technology | METAL-OXIDE SEMICONDUCTOR |
| Highest Frequency Band | VERY HIGH FREQUENCY BAND |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| Operating Mode | ENHANCEMENT MODE |
| Operating Temperature-Max | 150 °C |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Polarity/Channel Type | N-CHANNEL |
| Power Dissipation-Max (Abs) | 27.8 W |
| Qualification Status | Not Qualified |
| Surface Mount | NO |
| Terminal Form | THROUGH-HOLE |
| Terminal Position | SINGLE |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Transistor Application | AMPLIFIER |
| Transistor Element Material | SILICON |
Actual image of the product
