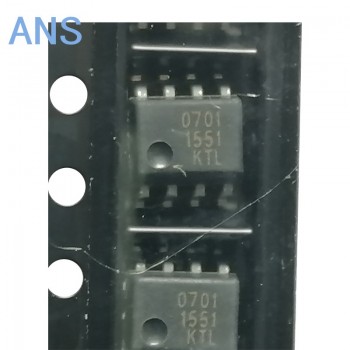

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
One-Stop New Original IC HCPL-0701-500E SOP8 Low Input Current, High Gain Optocouplers Integrated Circuits
Manufacturer Product Number
HCPL-0701-500E
Description
Low Input Current, High Gain Optocouplers
Package Condition
REEL
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
| Part# | HCPL-0701-500E |
| Category | Isolators |
| Optoisolators | |
| Transistor, Photovoltaic Output Optoisolators | |
| Mfr | - |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 500% @ 1.6mA |
| Current Transfer Ratio (Max) | 2600% @ 1.6mA |
| Turn On / Turn Off Time (Typ) | 200ns, 2µs |
| Rise / Fall Time (Typ) | - |
| Input Type | DC |
| Output Type | Darlington with Base |
| Voltage - Output (Max) | 18V |
| Current - Output / Channel | 60mA |
| Voltage - Forward (Vf) (Typ) | 1.4V |
| Current - DC Forward (If) (Max) | 20 mA |
| Vce Saturation (Max) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO |
| Base Product Number | HCPL-0701 |
