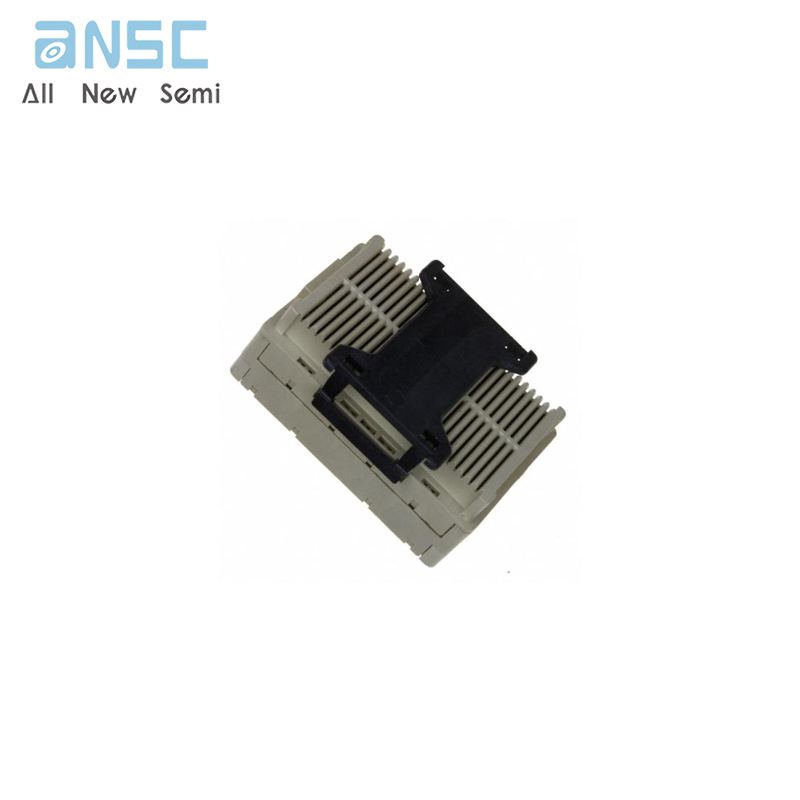

10081496-001LF 200 Signal (100 Pair) Position Connector Differential Pair Array spot stock
Manufacturer Product Number
10081496-001LF
Description
10081496-001LF 200 Signal (100 Pair) Position Connector
Package Condition
Tray
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-10081496-001LF |
| Category | Connectors, Interconnects |
| Rectangular Connectors | |
| Arrays, Edge Type, Mezzanine (Board to Board) | |
| Manufacturer | - |
| Series | GIG-Array®, MezzSelect™ |
| Packaging | Tray |
| Part Status | Active |
| Connector Type | Differential Pair Array, Female |
| Number of Positions | 200 Signal (100 Pair) |
| Pitch | 0.051" (1.30mm) |
| Number of Rows | 18 |
| Mounting Type | Surface Mount |
| Contact Finish | Gold or Gold, GXT™ |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Mated Stacking Heights | 21mm, 23mm, 24mm, 26mm, 31mm, 36mm |
| Height Above Board | 0.414" (10.51mm) |
| Base Product Number | 10081496 |
Product Photos
For more product information, please download the PDF
Other Products In The same category:
10081496-001LF 200 Signal (100 Pair) Position Connector
23In stock:
Can ship immediately
