Hot sale Original ES1D Rectifiers Single Diode GEN PURP 200V 1A DO214AC Diode 200 V 1A Surface Mount DO-214AC
Manufacturer Product Number
ES1D
Description
ES1D DIODE GEN PURP 200V 1A DO214AC Diode 200 V 1A Surface Mount DO-214AC (SMA)
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Overview
A reasonable reverse voltage is 200V.The average rectified current for this device is 1A volts.The primary action of this electronic or electrical device produces no heat as an unwanted side effect.When the forward current reaches 1A, it is allowed.Having a current rating of 1A, it can carry an indefinite amount of current without deterioration.The maximum surge current is 30A.This device can deliver a value of 7pF depending on the capacitance.A data chart shows that the peak reverse is 5μA in the datasheets.
Product Features
an average rectified current of 1A volts
a current rating of 1A
the peak reverse is 5μA
Product Applications
ES1D applications of single-phase diode rectifier.
-
DC motor control and drives
-
Battery chargers
-
Welders
-
Power converters
-
Reverse Polarity Protection
-
Ultra High-Speed Switching
-
Freewheeling
-
Polarity Protection Diode
-
Recirculating Diode
-
Switching Diode
Product Description
| Type | Description |
| ANSC PART# | ANSC - ES1D |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 920 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 15 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 200 V |
| Capacitance @ Vr, F | 7pF @ 4V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Base Product Number | ES1 |

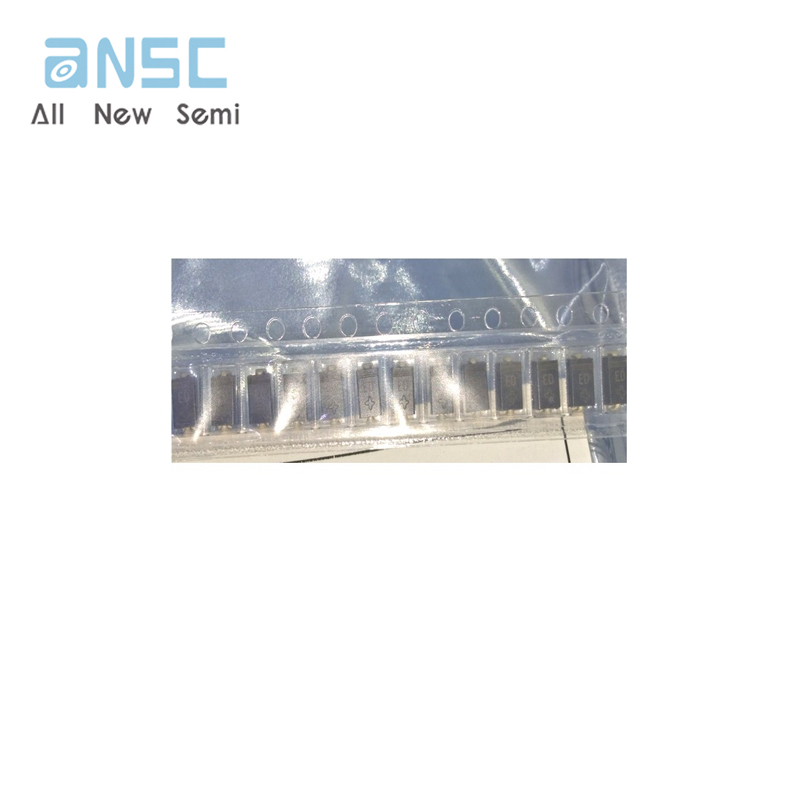

Actual image of the product

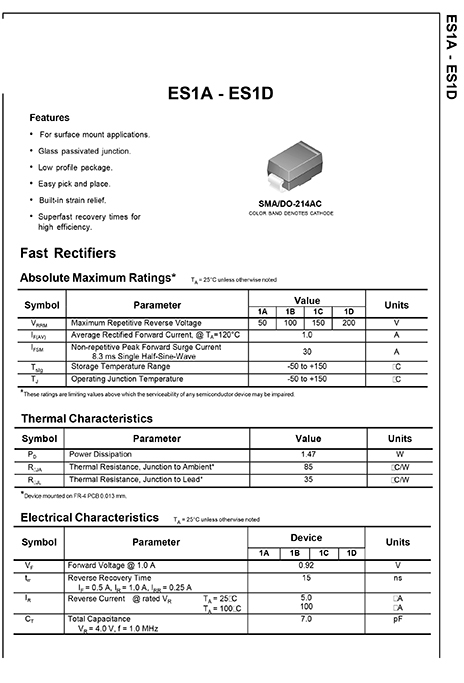

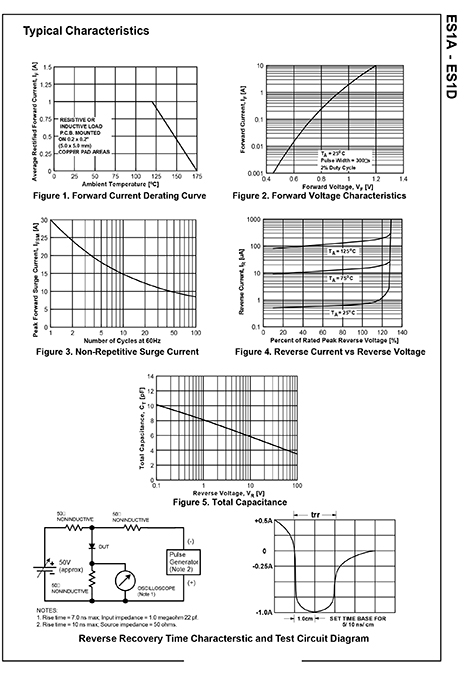

Product datasheet
For more information, please download
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
Welcome to visit our company
Warehouse Real Shot
