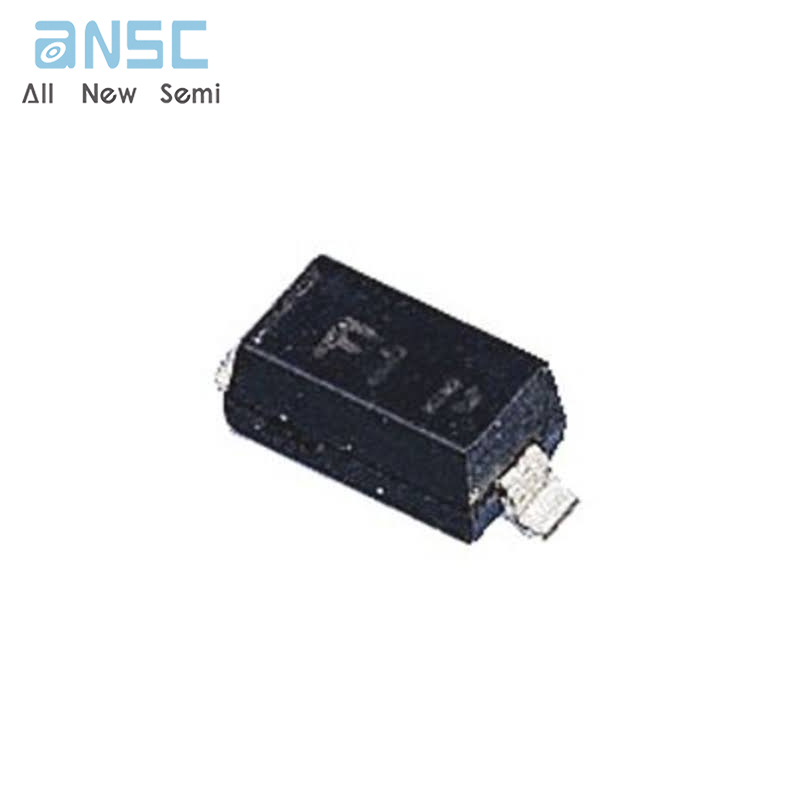

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce MMSZ5257B-7-F 500mW SURFACE MOUNT ZENER DIODE SOD123 spot stock
Manufacturer Product Number
MMSZ5257B-7-F
Description
MMSZ5257B-7-F 500mW SURFACE MOUNT ZENER DIODE SOD123 spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
500mW Power Dissipation
General Purpose, Medium Current
Ideally Suited for Automated Assembly Processes
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free.“Green” Device
Qualified to AEC-Q101 Standards for High Reliability
Product Descriptions
Case: SOD123
Case Material: Molded Plastic,“Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 0.01 grams (Approximate)
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MMSZ5257B-7-F |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Zener | |
| Single Zener Diodes | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Voltage - Zener (Nom) (Vz) | 33 V |
| Tolerance | ±5% |
| Power - Max | 500 mW |
| Impedance (Max) (Zzt) | 58 Ohms |
| Current - Reverse Leakage @ Vr | 100 nA @ 25 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA |
| Operating Temperature | -65°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | SOD-123 |
| Supplier Device Package | SOD-123 |
| Base Product Number | MMSZ5257 |
Product Photos
For more product information, please download the PDF
