Hot sale Original ADUM1402ARWZ Isolators General Purpose Digital Isolator 2500Vrms 4 Channel 1Mbps 25kV/µs CMTI 16-SOIC

Manufacturer Product Number

ADUM1402ARWZ

Description

Original ADUM1402ARWZ Isolators General Purpose Digital Isolator 2500Vrms 4 Channel 1Mbps 25kV/µs CMTI 16-SOIC

Package Condition

Tube

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Description

The ADUM1402ARWZ is a high-performance, unidirectional digital isolator from .

This isolator is designed to provide reliable and efficient signal isolation in a variety of applications.

With its compact 16-SOIC package and surface mount design, it is ideal for use in space-constrained

systems.

Product Features

Unidirectional digital isolator with a data rate of 1Mbps

High common mode transient immunity of 25kV/μs

Isolation voltage of 2500Vrms

Operating temperature range of -40°C to 105°C

Nominal supply current of 11mA

Output current of 22mA

Propagation delay of 100ns

Pulse width distortion of 40ns

Rise and fall times of 2.5ns and 3ns, respectively

Product Applications

Industrial automation and control systems

Medical devices and equipment

Automotive systems and components

Aerospace and defense applications

Industrial sensors and transducers

Product Description

Type	Description
ANSC PART#	ANSC - ADUM1402ARWZ
Category	Isolators
Category	Digital Isolators
Mfr	Original
Series	iCoupler®
Packaging	Tube
Part Status	Active
Technology	Magnetic Coupling
Type	General Purpose
Isolated Power	No
Number of Channels	4
Inputs - Side 1/Side 2	3/1
Channel Type	Unidirectional
Voltage - Isolation	2500Vrms
Common Mode Transient Immunity (Min)	25kV/µs
Data Rate	1Mbps
Propagation Delay tpLH / tpHL (Max)	100ns, 100ns
Pulse Width Distortion (Max)	40ns
Rise / Fall Time (Typ)	2.5ns, 2.5ns
Voltage - Supply	2.7V ~ 5.5V
Operating Temperature	-40°C ~ 105°C
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.295", 7.50mm Width)
Supplier Device Package	16-SOIC
Base Product Number	ADUM1401

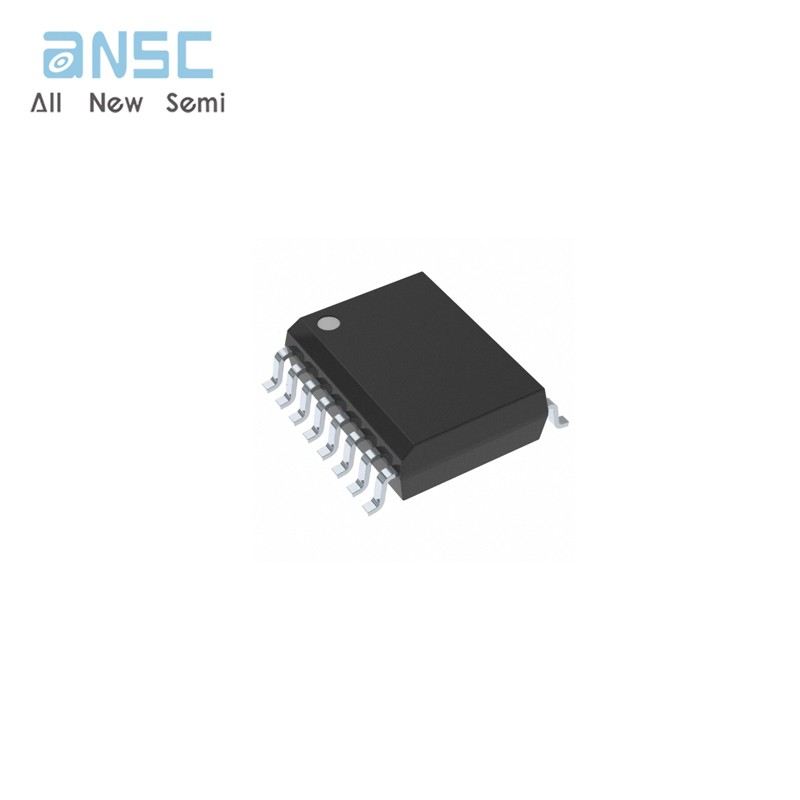

Product Photos

ADUM1402ARWZ

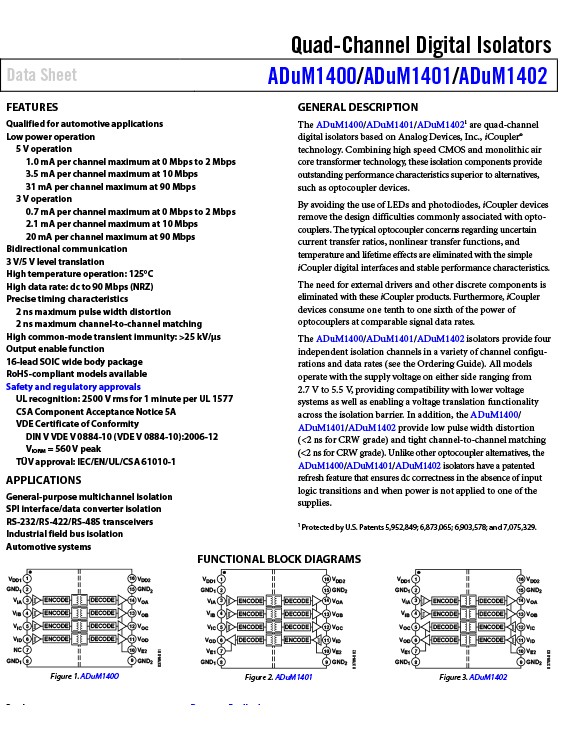

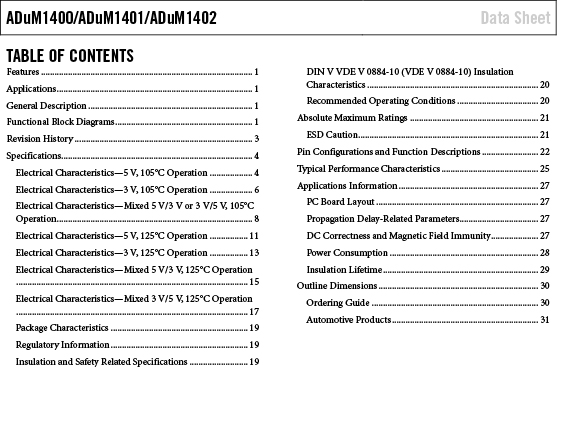

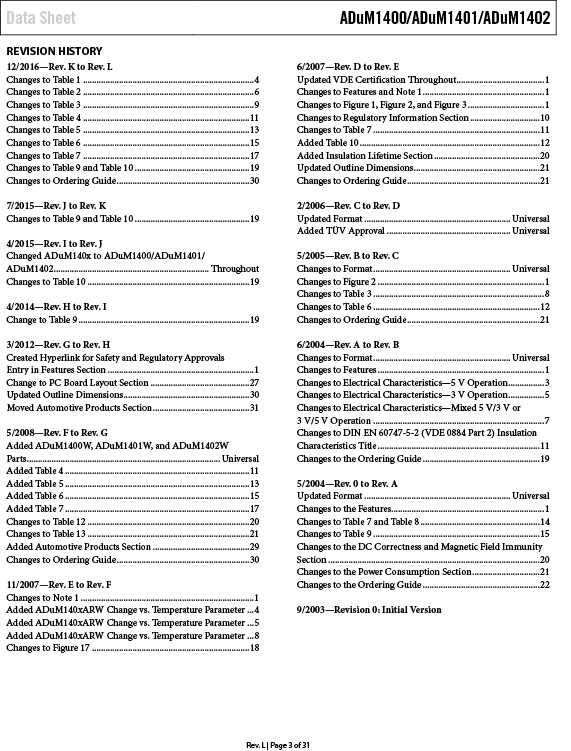

Product datasheet

For more information, please download
