Hot sale Original MGFC40V6472 RF Power Field-Effect Transistor, 1-Element, C Band, Gallium Arsenide, N-Channel
Manufacturer Product Number
MGFC40V6472
Description
MGFC40V6472 RF Power Field-Effect Transistor, 1-Element, C Band, Gallium Arsenide, N-Channel, Junction FET, HERMETIC SEALED, METAL CERAMIC
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| DESCRIPTION The MGFC40V6472A is an internally impedance matched GaAs power FET especially designed for use in 6.4 - 7.2 GHz band amplifiers. The hermetically sealed metal-ceramic package guarantees high reliability. FEATURES Internally matched to 50 ohm system High output power P1dB = 10W (TYP.) @ f=6.4 - 7.2 GHz High power gain GLP =9 dB (TYP.) @ f=6.4 - 7.2 GHz High power added efficiency P.A.E. = 32 % (TYP.) @ f=6.4 - 7.2 GHz Low Distortion[Item-51] IM3=-45 dBc(TYP.)@Po=29 dBm S.C.L. APPLICATION item 01 : 6.4 - 7.2 GHz band power amplifier item 51 : 6.4 - 7.2 GHz band digital radio communication |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- MGFC40V6472 |
| Ihs Manufacturer | Original |
| Package Description | FLANGE MOUNT, R-CDFM-F2 |
| Pin Count | 2 |
| Additional Feature | HIGH RELIABILITY |
| Case Connection | SOURCE |
| Configuration | SINGLE |
| DS Breakdown Voltage-Min | 10 V |
| Drain Current-Max (ID) | 2.4 A |
| FET Technology | JUNCTION |
| Highest Frequency Band | C BAND |
| JESD-30 Code | R-CDFM-F2 |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Operating Mode | DEPLETION MODE |
| Operating Temperature-Max | 175 °C |
| Package Body Material | CERAMIC, METAL-SEALED COFIRED |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT |
| Polarity/Channel Type | N-CHANNEL |
| Power Dissipation Ambient-Max | 43 W |
| Qualification Status | Not Qualified |
| Surface Mount | YES |
| Terminal Form | FLAT |
| Terminal Position | DUAL |
| Transistor Application | AMPLIFIER |
| Transistor Element Material | GALLIUM ARSENIDE |

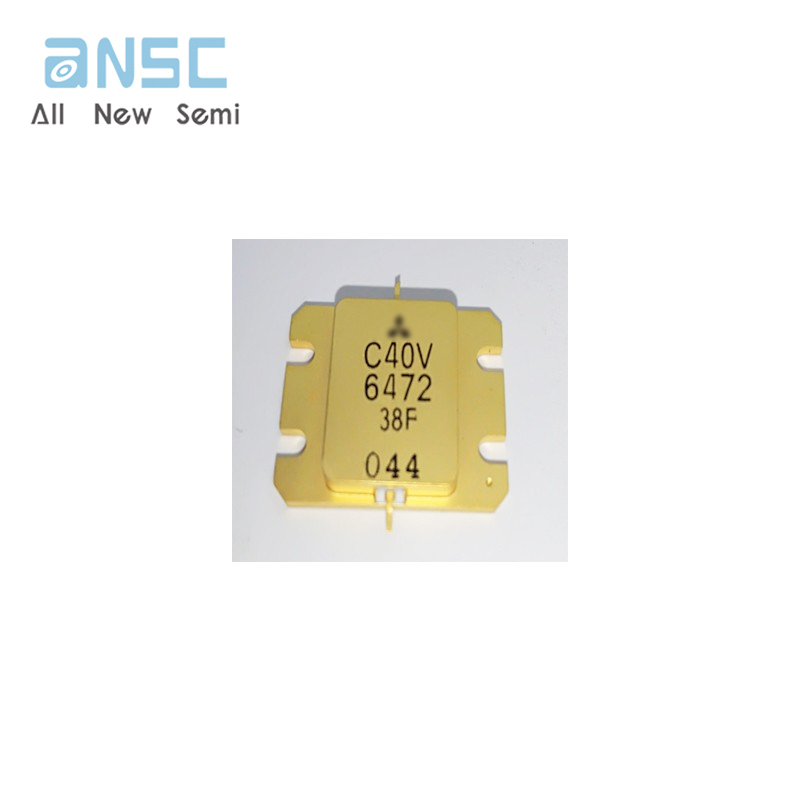

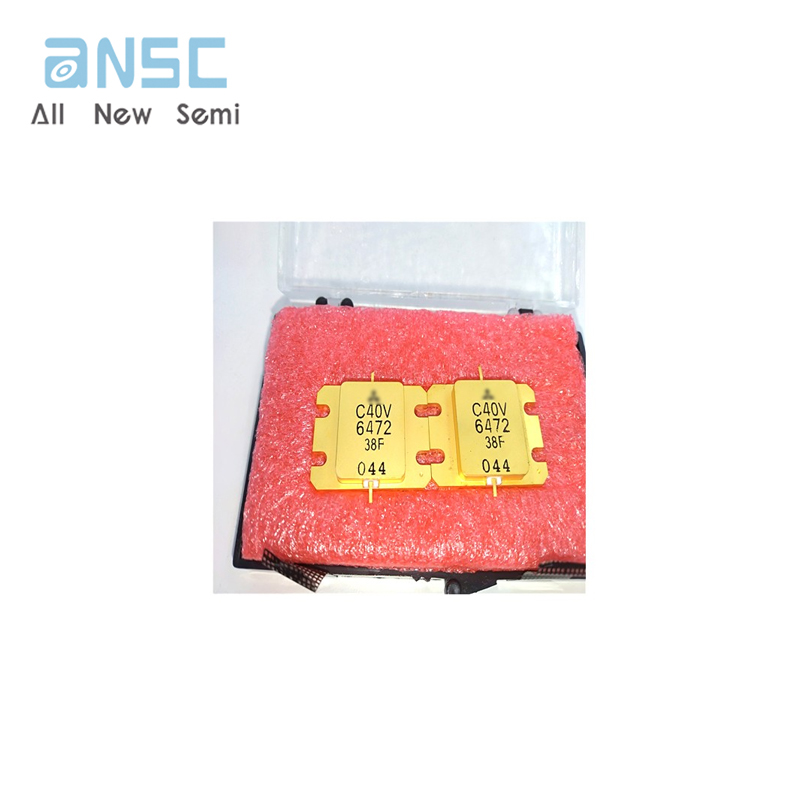

Product Photos

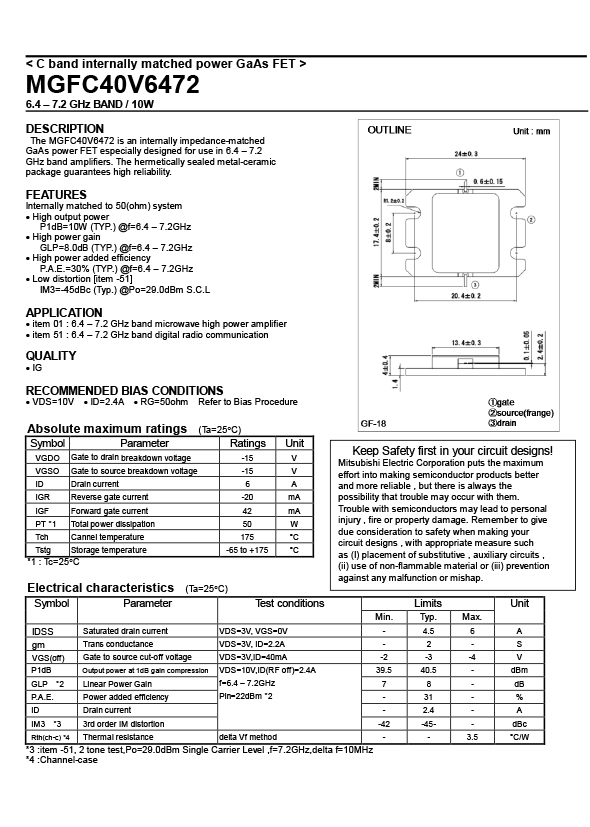

Product datasheet
For more information, please download
