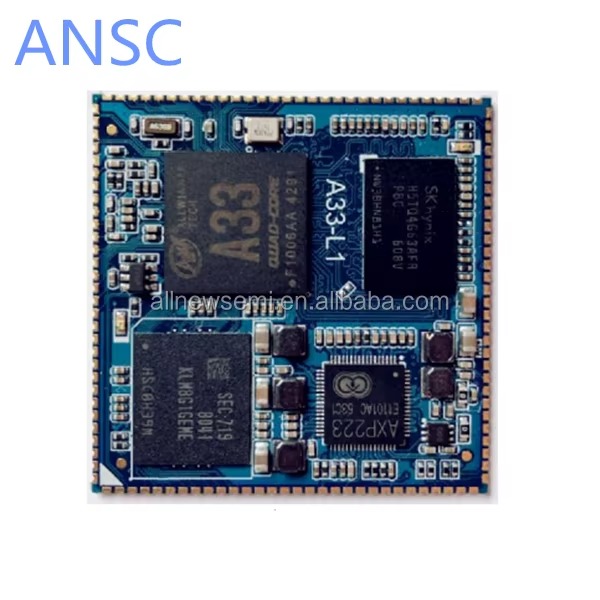

4 Core 1.2G Android A33 core development board, ARM11 industrial control board, drive LCD screen

Processor

A33 Cortex A7 Quad-Core 1.2G

Memory

SSR3 512M1G, standard 512M

Storage

EMMC 4G8G16G' Standard 4GB

Power Management

Powerful Standalone PMICPMUAXP223

A33 core board interface parameters

Display output interface

LVDS 1 channel, RGB 1 channel

Video input interface

CSI camera interface, support for USB camera

Touch screen interface

multi-point capacitance, resistive screen

USB interface

USB2.0 specification, support OTG 1 way, USB-HOST 1 way

SDTF card interface

1

Audio Interface

MIC 1 Road, Speaker 1 Road, Headphone 1 Road

Keyboard Interface

Matrix KeyboardPIO KeyboardADC Keyboard

SPI interface

1

ADC interface

1 way

I2C interface

3 way

UART serial port

4 channels

I2S interface

1

MMC interface

3 way

A33 core board electrical parameters

Power consumption

less than 5W

Storage temperature

-40°C~80°C

Working temperature

-20°C~60°C

Standby current

less than 10mA

A33 core board structure parameters

Size

40*40MM

Stamp hole

 1.27MM

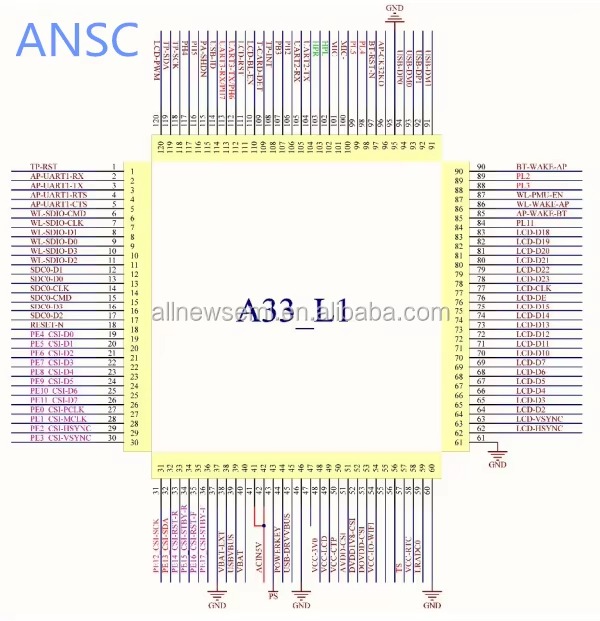

Number of pins

120

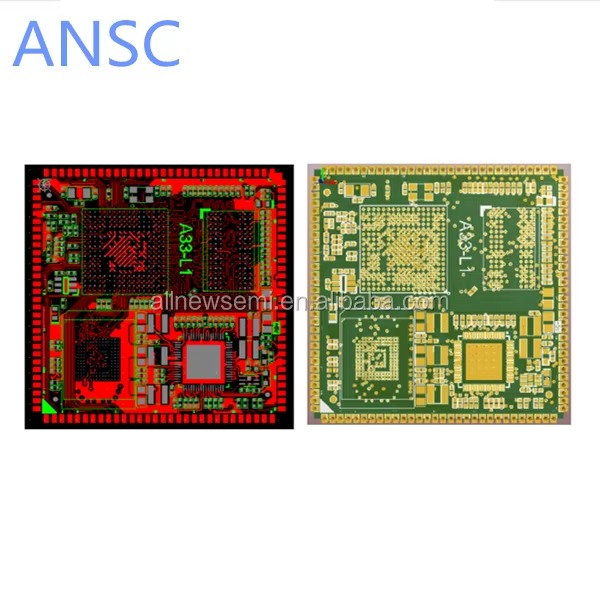

PCB Process

Six-layer board, Immersion gold process
