Original Photoelectric sensor FHDK 14N5101/S35A

Manufacturer
Original
Manufacturer Product Number
14N5101/S35A
Description

Original Photoelectric sensor FHDK 14N5101/S35A

Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Description

Basic parameters
Type Background suppression
Sensing distance Tw 20 … 350 mm
Sensing range Tb (Tw max) 20 … 350 mm
Sensing range Tb (Tw min) 5 … 20 mm
Repeat accuracy < 0,2 mm (at laser focus)
Power-on indicator Green LED
Indicator Yellow LED
Sensing distance adjustment Mechanical, 9 turns
Focal length 115 mm
Light source
Light source Pulsed red laser diode
Laser level 2
Wavelength 650 nm
Electrical parameters
Response time / release time < 0,5 ms
Power supply voltage range +Vs 10 … 30 VDC
Maximum current consumption (no load) 35 mA
Typical current consumption 25 mA
Voltage drop Vd <2,2 VDC
Output function Light On/Dark On
Output circuit NPN
Output current 100 mA
Short circuit protection Yes
Reverse polarity protection Yes
Mechanical parameters
Width / diameter 14,8 mm
Height / length 43 mm
Depth 31 mm
Type Rectangular
Housing material Plastic (ASA, MABS)
Front-end optical element PMMA
Connection method M8 connector, 4-pin
Environmental conditions
Protection level IP 67
Operating temperature -10 … +50 °C

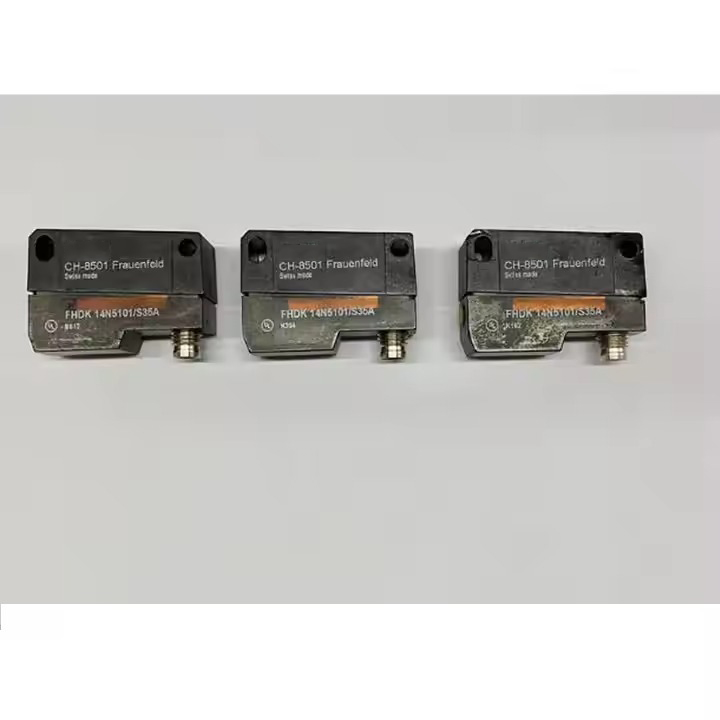

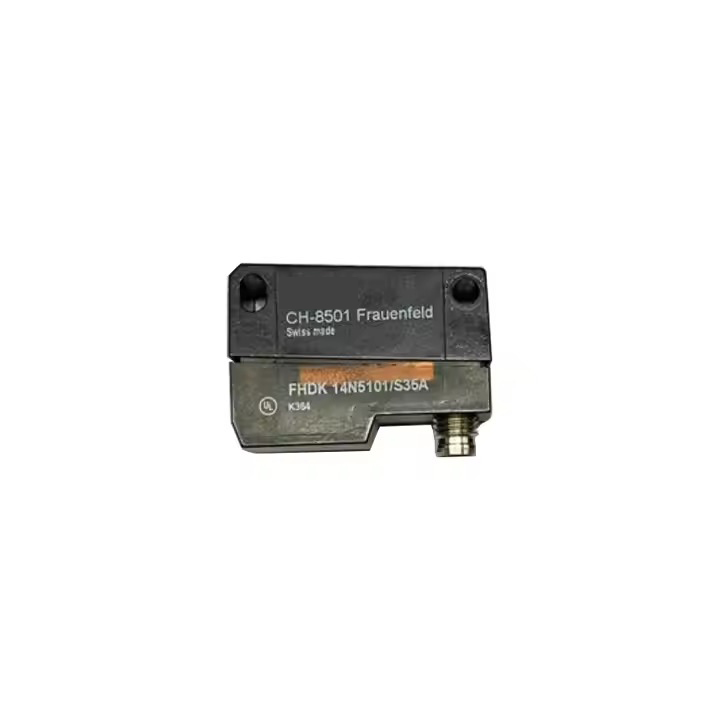

 Actual image of the product

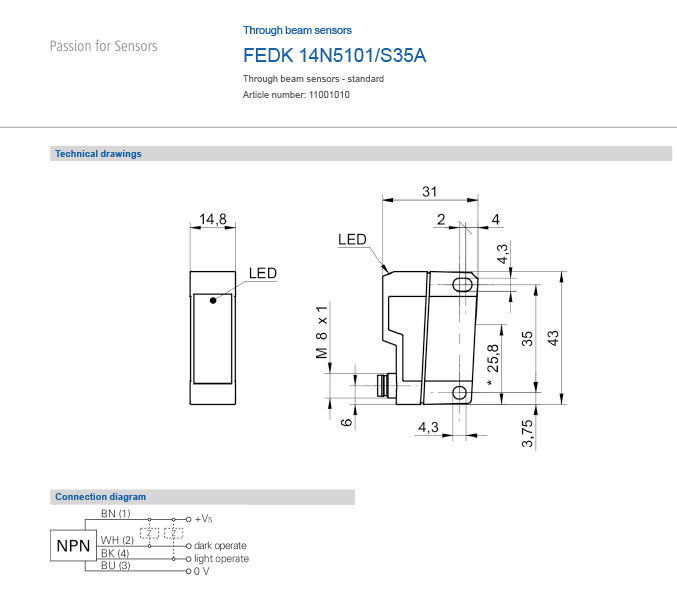

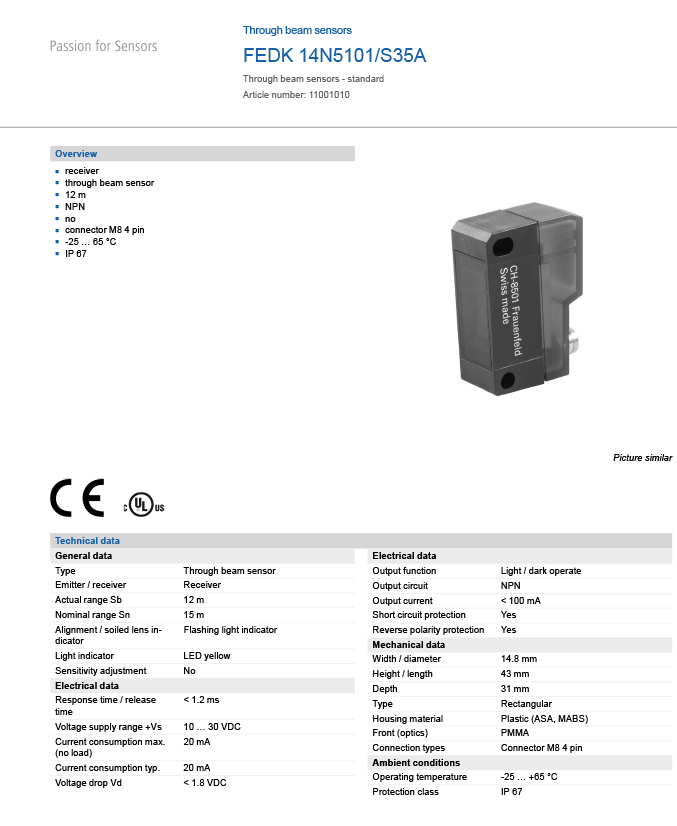

Product datasheet
