Original PS2801-1-K-A Optoisolator Transistor Output 2500Vrms 1 Channel 4-SSOP

Manufacturer Product Number
PS2801-1-K-A
Description

PS2801-1-K-A OPTOISO 2.5KV 1CH TRANS 4-SSOP

Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

DESCRIPTION

The PS2801-1 and PS2801-4 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon phototransistor in a plastic SSOP for high density applications.
This package has shield effect to cut off ambient light.

FEATURES

• High isolation voltage (BV = 2 500 Vr.m.s.)
• Small and thin package (4,16-pin SSOP, Pin pitch 1.27 mm)
• High collector to emitter voltage (VCEO = 80 V)
• High-speed switching (tr = 3 µs TYP., tf = 5 µs TYP.)
• Ordering number of tape product: PS2801-1-F3, F4, PS2801-4-F3, F4
• Pb-Free product
• Safety standards: PS2801-1, -4
• UL approved: No. E72422
• BSI approved: No. 8188, 8189
• CSA approved: No. CA 101391
• DIN EN60747-5-2 (VDE0884 Part2) approved: No. 40008902 (Option)

APPLICATIONS

• Programmable logic controllers
• Measuring instruments
• Power supply
• Hybrid IC

Product Description

Type

Description
PART# PS2801-1-K-A

Category

Isolators

Optocouplers, Optoisolators

Transistor, Photovoltaic Output Optoisolators

Manufacturer

/

Series

-

Packaging

Tube

Part Status

Active

Number of Channels

1

Voltage - Isolation

2500Vrms

Current Transfer Ratio (Min)

300% @ 5mA

Current Transfer Ratio (Max)

600% @ 5mA

Turn On / Turn Off Time (Typ)

6µs, 5µs

Rise / Fall Time (Typ)

3µs, 5µs

Input Type

DC

Output Type

Transistor

Voltage - Output (Max)

80V

Current - Output / Channel

50mA

Voltage - Forward (Vf) (Typ)

1.1V

Current - DC Forward (If) (Max)

50 mA

Vce Saturation (Max)

300mV

Operating Temperature

-55°C ~ 100°C

Mounting Type

Surface Mount

Package / Case

4-SOIC (0.173", 4.40mm Width)

Supplier Device Package

4-SSOP

Base Product Number

PS2801

Actual image of the product

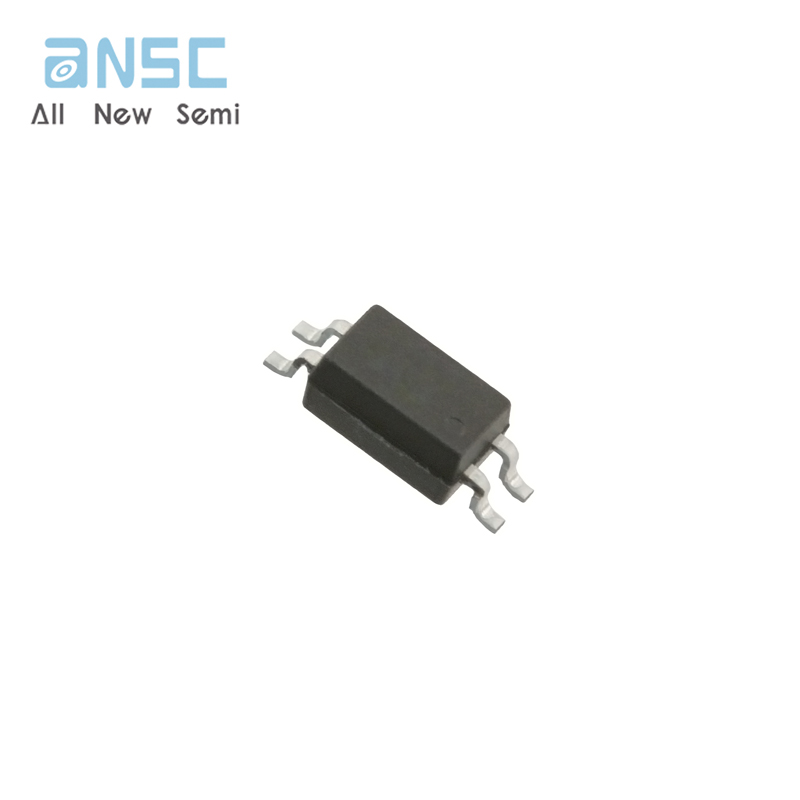

PS2801-1-K-A​
