One stop supply of electronic components MF-LSMF300X-2 Polymeric PTC Resettable Fuse 6V 3 A Ih Surface Mount 2920 Concave
Manufacturer Product Number
MF-LSMF300X-2
Description
MF-LSMF300X-2 Polymeric PTC Resettable Fuse 6V 3A Ih Surface Mount
Package Condition
Tape&Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
Features
■ Compliant with AEC-Q200 Rev-C- Stress Test Qualification for Passive Components in Automotive Applications
■ 100 % electrically compatible with all previous generations of 1812 SMT devices
■ Compatible with Pb and Pb-free solder reflow profiles
■ RoHS compliant* and halogen free**
■ Surface mount packaging for automated assembly
■ Agency recognition:
■ Standard 4532 mm (1812 mils) footprint
■ Patents pending
Applications
■ Overcurrent and overtemperature protection of automotive electronics
■ Hard disk drives
■ PC motherboards
■ PC peripherals
■ Point-of-sale (POS) equipment
■ PCMCIA cards
■ USB port protection - USB 2.0, 3.0 & OTG
■ HDMI 1.4 Source protection
Product Description
|
Type |
Description |
|---|---|
|
Category |
Circuit Protection PTC Resettable Fuses |
|
Manufacturer |
/ |
|
Series |
Multifuse®, MF-LSMF |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Active |
|
Type |
Polymeric |
|
Voltage - Max |
6V |
|
Current - Hold (Ih) (Max) |
3 A |
|
Current - Trip (It) |
5 A |
|
Current - Max |
40 A |
|
Time to Trip |
20 s |
|
Resistance - Initial (Ri) (Min) |
15 mOhms |
|
Resistance - Post Trip (R1) (Max) |
48 mOhms |
|
Operating Temperature |
-40°C ~ 85°C |
|
Grade |
Automotive |
|
Qualification |
AEC-Q200 |
|
Ratings |
- |
|
Mounting Type |
Surface Mount |
|
Package / Case |
2920 (7351 Metric), Concave |
|
Size / Dimension |
0.290" L x 0.202" W (7.36mm x 5.12mm) |
|
Height - Seated (Max) |
- |
|
Thickness (Max) |
0.033" (0.85mm) |
|
Lead Spacing |
- |
|
Approval Agency |
cURus, TUV |
|
Base Product Number |
MF-LSMF |

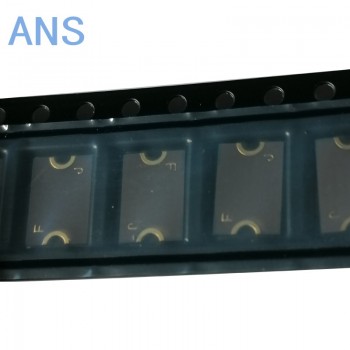

Product Photos
