One stop supply of electronic components 1812L014DR Polymeric PTC Resettable Fuse 60V 140mA Ih Surface Mount 1812 Concave
Manufacturer Product Number
1812L014DR
Description
Polymeric PTC Resettable Fuse 60V 140mA Ih Surface Mount 1812 Concave
Package Condition
Tape & Reel (TR)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| POLYFUSE® Resettable PTCs Surface Mount > 1812L Series Description The 1812L Series PTC provides surface mount overcurrent protection for applications where resettable protection is desired. Features • RoHS compliant, lead-free and halogen-free1 • Fast response • Compact design • Low resistance • Low-profile • Compatible with high temperature solders Applications • Plug and play protection for motherboards and peripherals • USB peripherals • PCI cards • Game console port protection |
Product Description
| Type | Description |
| PART# | 1812L014DR |
| Category | Circuit Protection |
| PTC Resettable Fuses | |
| Manufacturer | Original |
| Series | POLY-FUSE®, 1812L |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Type | Polymeric |
| Voltage - Max | 60V |
| Current - Hold (Ih) (Max) | 140 mA |
| Current - Trip (It) | 340 mA |
| Current - Max | 10 A |
| Time to Trip | 150 ms |
| Resistance - Initial (Ri) (Min) | 1.5 Ohms |
| Resistance - Post Trip (R1) (Max) | 6 Ohms |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric), Concave |
| Size / Dimension | 0.179" L x 0.128" W (4.55mm x 3.24mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.077" (1.95mm) |
| Lead Spacing | - |
| Approval Agency | cURus, TUV |

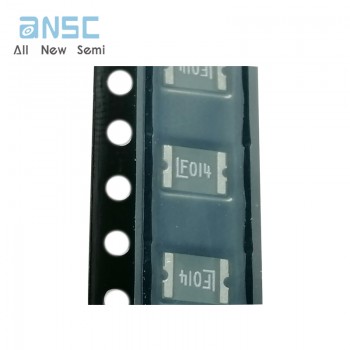

Actual image of the product
