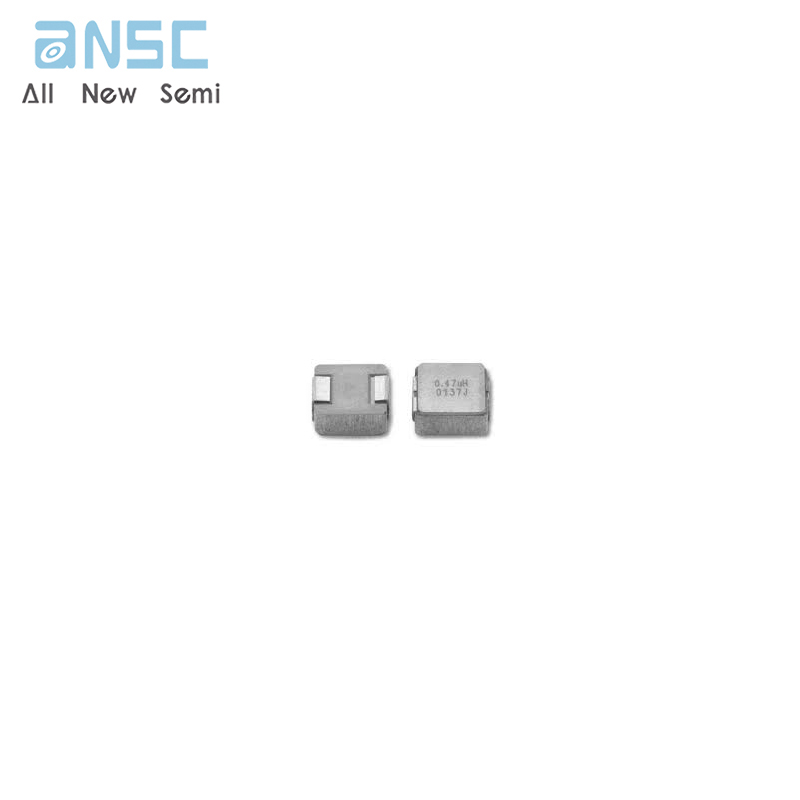

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce IHLP2525CZER1R0MA1 Automotive Inductors, High Saturation SMD spot stock
Manufacturer Product Number
IHLP2525CZER1R0MA1
Description
IHLP2525CZER1R0MA1 Automotive Inductors, High Saturation SMD spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
• Lowest height (3.0 mm) in this package footprint
• Shielded construction
• Excellent DC/DC energy storage up to 5 MHz .
Filter inductor applications up to SRF
• Lowest DCR/μH, in this package size
• Handles high transient current spikes without hard saturation
• Ultra low buzz noise, due to composite construction
• AEC-Q200 qualified
Product Applications
• Engine and transmission control units
• Diesel injection drivers
• DC/DC converters for entertainment / navigation systems
• Noise suppression for motors
- Windshield wipers
- Power seats
- Power mirrors
- Heating and ventilation blowers
- HID lighting
• LED drivers
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-IHLP2525CZER1R0MA1 |
| Category | Inductors, Coils, Chokes |
| Fixed Inductors | |
| Mfr | - |
| Series | IHLP-2525CZ-A1 |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Type | Molded |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 11 A |
| Current - Saturation (Isat) | 22A |
| Shielding | Shielded |
| DC Resistance (DCR) | 10mOhm Max |
| Frequency - Self Resonant | 55MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.270" L x 0.255" W (6.86mm x 6.47mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Product Photos
For more product information, please download the PDF
