Hot sale Original MC33063ADR PMIC IC Buck Boost Switching Regulator IC Positive or Negative Adjustable 1.25V 1Output 1.5A 8-SOIC
Manufacturer Product Number
MC33063ADR
Description
MC33063ADR PMIC IC Buck Boost Switching Regulator IC Positive or Negative Adjustable 1.25V 1Output 1.5A 8-SOIC
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
The MC33063ADR is a surface-mount, 8-pin, 8-SOIC packaged, switching regulator from Texas Instruments. This voltage regulator is designed to operate in a voltage-mode, pulse-width modulation (PWM) control technique, making it suitable for a wide range of applications. The device is capable of step-up and step-down conversions, allowing it to regulate output voltages from 1.25V to 40V.
Product Features
High Efficiency: The MC33063ADR operates at a high efficiency, making it suitable for battery-powered applications.
Wide Input Voltage Range: The device can operate with an input voltage range of 3V to 5V, making it versatile for various applications.
High Output Current: The regulator can deliver up to 750mA of output current, making it suitable for high-current applications.
Adjustable Output Voltage: The output voltage is adjustable, allowing users to set the desired output voltage within the specified range.
Low Quiescent Current: The device has a low quiescent current of 4mA, making it suitable for battery-powered applications.
Product Applications
Primary Applications:
Power supplies for electronic devices
Battery-powered devices
Automotive systems
Secondary Applications:
Medical devices
Industrial control systems
Aerospace systems
Embedded Modules:
The MC33063ADR is used in various embedded systems, including:
Power supplies for electronic devices
Battery-powered devices
Automotive systems
Product Description
|
Type |
Description |
|---|---|
|
ANSC PART# |
ANSC - MC33063ADR |
|
Category |
Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - DC DC Switching Regulators |
|
Mfr |
Original |
|
Series |
- |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Active |
|
Function |
Step-Up, Step-Down |
|
Output Configuration |
Positive or Negative |
|
Topology |
Buck, Boost |
|
Output Type |
Adjustable |
|
Number of Outputs |
1 |
|
Voltage - Input (Min) |
3V |
|
Voltage - Input (Max) |
40V |
|
Voltage - Output (Min/Fixed) |
1.25V |
|
Voltage - Output (Max) |
40V (Switch) |
|
Current - Output |
1.5A (Switch) |
|
Frequency - Switching |
100kHz |
|
Synchronous Rectifier |
No |
|
Operating Temperature |
-40°C ~ 85°C (TA) |
|
Mounting Type |
Surface Mount |
|
Package / Case |
8-SOIC (0.154", 3.90mm Width) |
|
Supplier Device Package |
8-SOIC |
|
Base Product Number |
MC33063 |

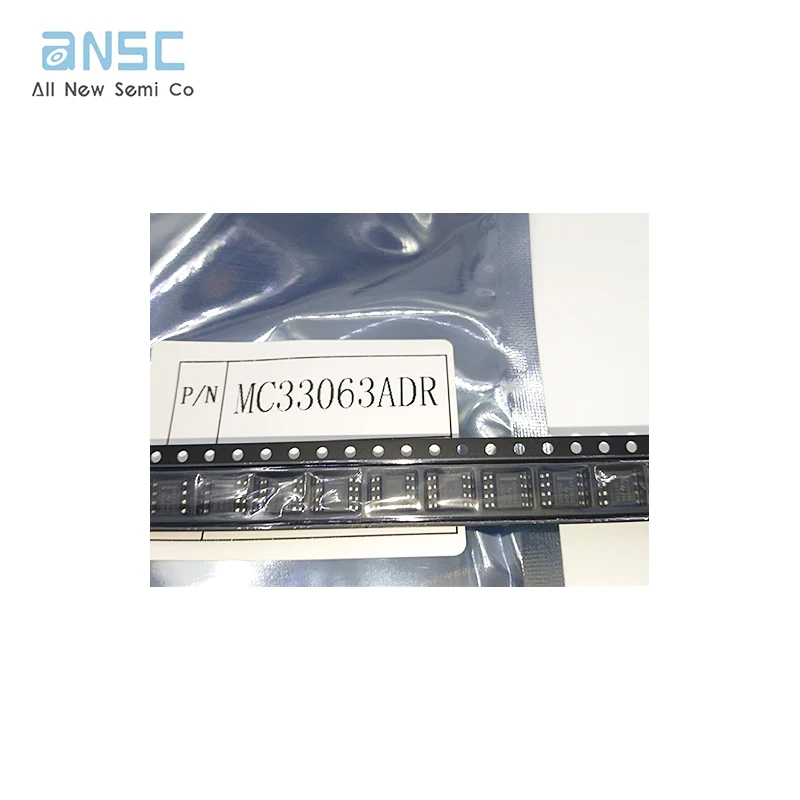

Actual image of the product

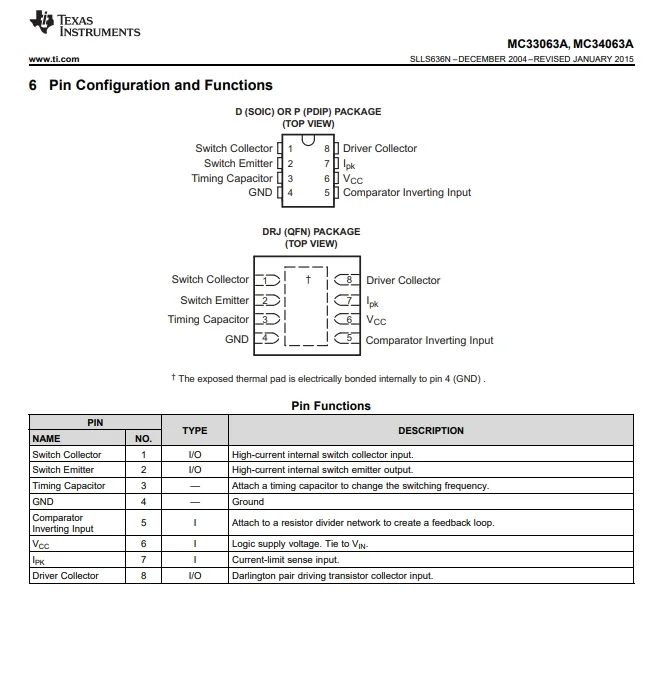

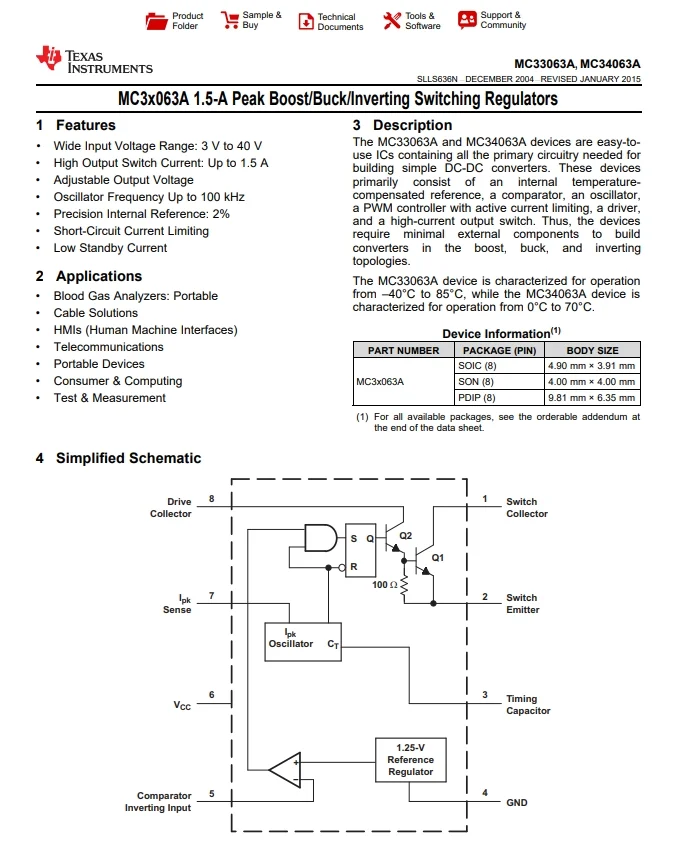

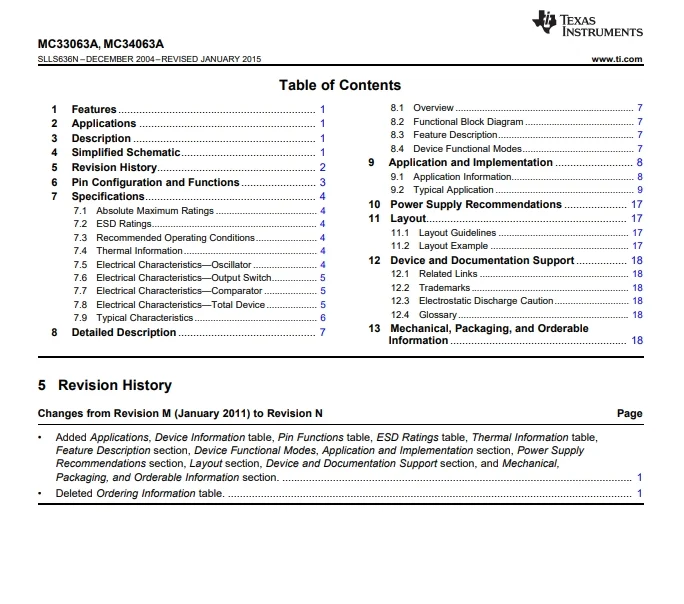

Product datasheet
For more information, please download
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
Welcome to visit our company
Warehouse Real Shot
