Hot sale original electronics MAX3465ESD IC CHIP +5V, Fail-Safe, 40Mbps, PROFIBUS RS-485/RS-422 Transceivers

Manufacturer Product Number
MAX3465ESD
Description

MAX3465ESD IC CHIP +5V, Fail-Safe, 40Mbps, PROFIBUS RS-485/RS-422 Transceivers

Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

General Description
The MAX3460–MAX3464 are high-speed differential bus transceivers for RS-485 and RS-422 communications. They are designed to meet TIA/EIA-422-B,TIA/EIA-485-A, V.11, and X.27 standards. The transceiver complies with the Profibus specification providing +2.1V output level with a 54Ω load, 20Mbps data rate, and output skew less than 2ns. Each part contains one three-state differential line driver and one differential input line receiver. The devices operate from a +5V supply and feature true fail-safe circuitry, which guarantees a logic-high receiver output when the receiver inputs are open or shorted. This enables all receiver outputs on a terminated bus to output logic highs when all transmitters are disabled
Features
♦ Recommended for Profibus Applications
♦ Guaranteed 20Mbps Data Rate
♦ 20ns Transmitter and Receiver Propagation Delay
♦ 2ns Transmitter and Receiver Skew
♦ High Differential Driver Output Level (2.1V on 54Ω)
♦ Hot-Swap Versions
♦ 1µA Shutdown Supply Current
♦ Low Supply Current Requirements (2.5mA typ)
♦ Allow Up to 128 Transceivers on the Bus
♦ True Fail-Safe Receiver while Maintaining EIA/TIA-485 Compatibility
♦ Designed for Multipoint Transmissions on Long or Noisy Bus Lines
♦ Full Duplex and Half Duplex Versions Available
♦ Phase Controls to Correct for Twisted-Pair Reversal for 14-Pin Versions
♦ Current-Limiting and Thermal Shutdown for
Driver Overload Protection
Applications
High-Speed RS-485 Communications
High-Speed RS-422 Communications
Level Translators
Industrial-Control Local Area Networks
Profibus Applications

Product Description

Type# Description
ANSC PART# ANSC- MAX3465ESD
Part Package Code SOIC
Package Description Sop, Sop14,.25
Pin Count 14
Differential Output Yes
Driver Number of Bits 1
Input Characteristics Differential Schmitt Trigger
Interface IC Type Line Transceiver
Interface Standard Eia-422-B; Tia-422-B; Eia-485-A; Tia-485-A; V.11; X.27
JESD-30 Code R-PDSO-G14
JESD-609 Code e0
Length 8.65 Mm
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 14
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Out Swing-Min 2.1 V
Output Low Current-Max 0.004 A
Package Body Material Plastic/Epoxy
Package Code SOP
Package Equivalence Code SOP14,.25
Package Shape Rectangular
Package Style Small Outline
Peak Reflow Temperature (Cel) 245
Qualification Status Not Qualified
Receive Delay-Max 20 Ns
Receiver Number of Bits 1
Seated Height-Max 1.75 Mm
Supply Current-Max 4 Ma
Supply Voltage-Max 5.25 V
Supply Voltage-Min 4.75 V
Supply Voltage-Nom 5 V
Surface Mount Yes
Technology Bicmos
Temperature Grade Industrial
Terminal Finish Tin Lead
Terminal Form Gull Wing
Terminal Pitch 1.27 Mm
Terminal Position Dual
Transmit Delay-Max 15 Ns
Width 3.9 Mm

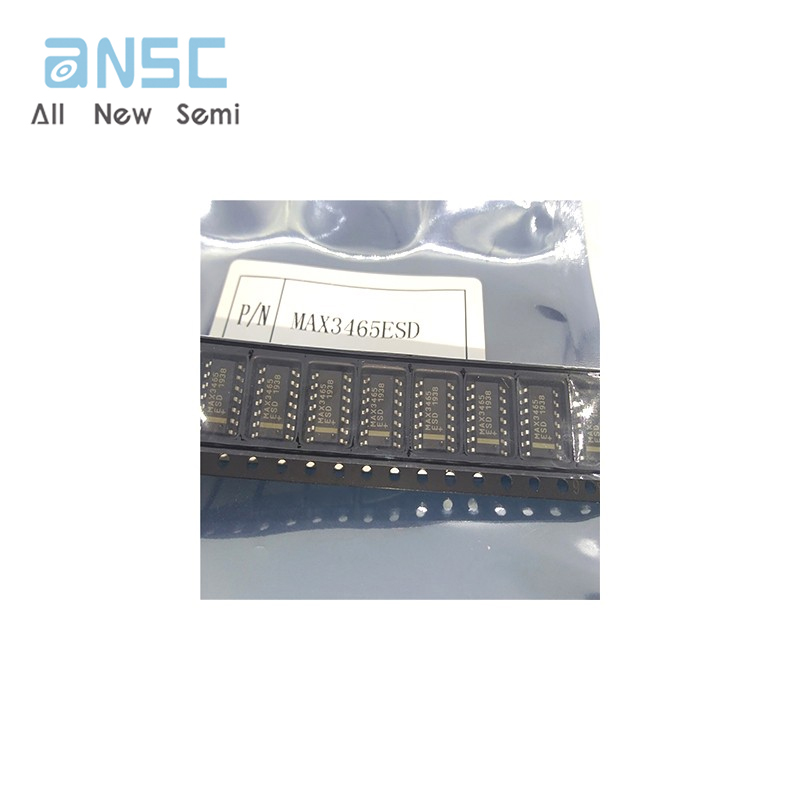

Actual image of the product

MAX3465ESD

Product datasheet

For more information, please download
