Hot sale original LTM4615V Triple Output, Low Voltage DC/DC Module Regulator

Manufacturer Product Number
LTM4615V
Description

LTM4615V Triple Output, Low Voltage DC/DC Module Regulator

Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Description

DESCRIPTION
The LTM®4615 is a complete 4A dual output switching mode DC/DC power supply plus an additional 1.5A VLDO (very low dropout) linear regulator. Included in the package are the switching controllers, power FETs, inductors, a 1.5A regulator and all support components. The dual 4A DC/DC converters operate over an input voltage range of 2.375V to 5.5V, and the VLDO operates from a 1.14V to 3.5V input. The LTM4615 supports output voltages ranging from 0.8V to 5V for the DC/DC converters, and 0.4V to 2.6V for the VLDO. The three regulator output voltages are set by a single resistor for each output. Only bulk input and output capacitors are needed to complete the design.
FEATURES
■ Dual 4A Output Power Supply with 1.5A VLDO™
■ Short-Circuit and Overtemperature Protection
■ Power Good Indicators
Switching Regulators Section—Current Mode Control
■ Input Voltage Range: 2.375V to 5.5V
■ 4A DC Typical, 5A Peak Output Current Each
■ 0.8V Up to 5V Output Each, Parallelable
■ ±2 Total DC Output Error
■ Output Voltage Tracking
■ Up to 95 Efficiency
■ Programmable Soft-Start
VLDO Section
n VLDO, 1.14V to 3.5V Input Range
n VLDO, 0.4V to 2.6V, 1.5A Output
n VLDO, 40dB Supply Rejection at fSW
n ±1 Total DC Output Error
n Small and Very Low Profile Package:
15mm × 15mm × 2.82mm
APPLICATIONS
■ Telecom and Networking Equipment
■ Industrial Power Systems
■ Low Noise Applications
■ FPGA, SERDES Power

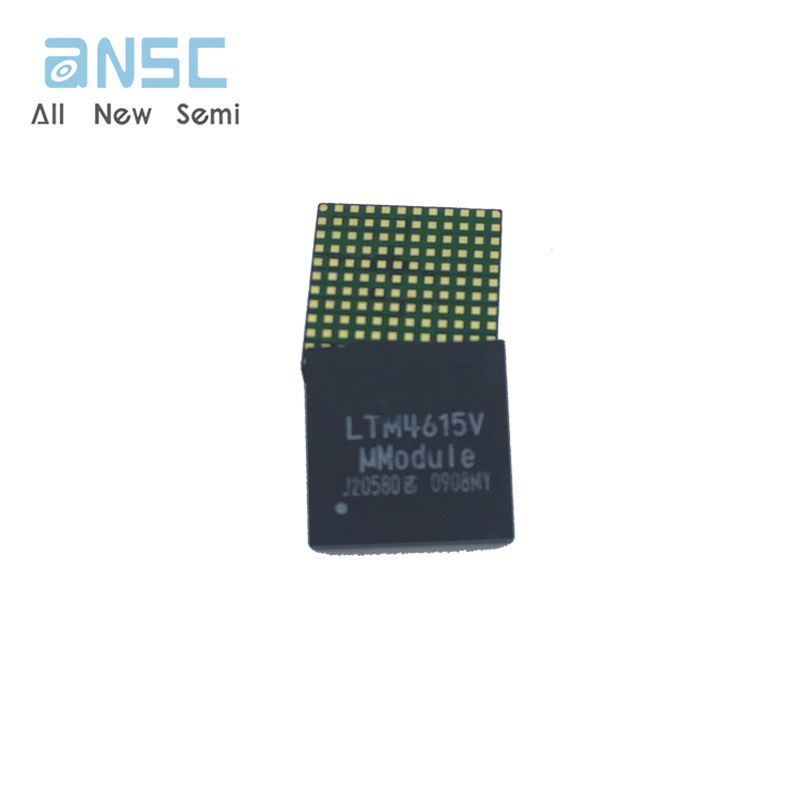

Product Photos
