Product Descriptions

IP5189T is a fully-integrated multi-function power management SOC. It integrates a boost converter, a Li battery charger management system and a battery state of charge indicate controller. It provides a turn-key solution for power bank and portable charger applications.

IP5189T’s high integration and rich features make the minimized component number in application. It can effectively downsize the application and lower the BOM cost.

IP5189T only needs a single inductor to realize step-down and step-up.

IP5189T’s synchronous step-up converter provides 2.1A output current. Its efficiency is up to 92 PERCENT@VBAT=3.7V,Iout=2.1A. It can switch to standby mode at empty load automatically, the standby current reducing to 100uA.

IP5189T’s synchronous switching charger provides 2.1A charging current. Its efficiency is up to 91 PERCENT@ VIN=5.0V, VBAT=3.7V, Ibat=2A. It regulates the charging current by IC temperature and input voltage.

IP5189T integrates voltage based fuel gauge indication of 1/2/3/4 LEDs and flashlight function.

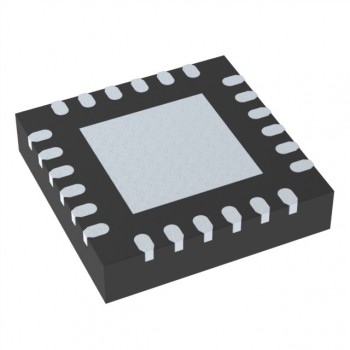

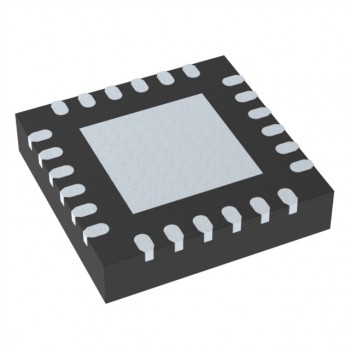

IP5189T is available in QFN24 (4*4mm).

Product Features

 Synchronous switching charger and synchronous boost converter

 2.1A synchronous switching charger, 2.1A synchronous boost converter

 Boost converter efficiency up to 92 percent

 Switching charger efficiency up to 91 percent

 Integrated power-path management, charging batteries and charging cellphones at the same time

 Charger

 Adaptive charging current control, excellent adapter compatibility

 Support 4.20V,4.35V and 4.4V batteries with different RVSET

 Support battery thermal protection (with NTC resistor)

 Programmable charging current with a resistor RICHG

 State of charge (SOC) indicator

 Integrated LED controller supports 4/3/2/1 LEDs as the SOC indicator

 Configurable charging/discharging curve with a resistor RVTHS, makes the SOC indicate LEDs more even

 Fully featured

 Integrated flashlight controller

 Integrated cellphone plug-in and plug-out detector

 Integrated a DCP modules for detect cellphone charging current

 Support output cable resistor compensation

 Low power

 Smart load detector, switching to standby mode automatically

 <100 µA standby current

 Ultra simplified BOM

 Integrated power FET, charging/boosting with a single inductor

 Multiple protections, high reliability

 Output over-current, over-voltage,short-circuit protection

 Input over-voltage, over-current, battery over-charge, over-drain, over-current protection

 Thermal Shutdown

 ESD 4KV , maximum 11V transit over-voltage sustainable

Product Applications

 Power bank, Portable Charger

 Mobile Phones , Handheld Devices
