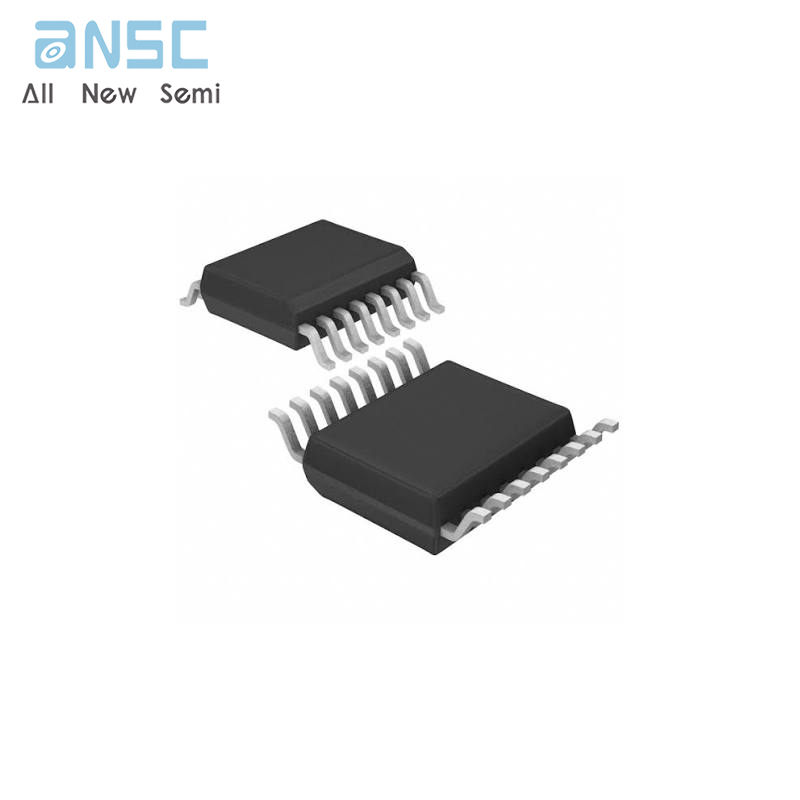

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce IDTQS3257QG8 Multiplexer/Demultiplexer 4 x 2:1 16-QSOP spot stock
Manufacturer Product Number
IDTQS3257QG8
Description
IDTQS3257QG8 Multiplexer/Demultiplexer 4 x 2:1 16-QSOP spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The QS3257 is a high-speed CMOS LVTTL-compatible Quad 2:1multiplexer/demultiplexer.The QS3257 is a function and pinout compatibleQuickSwitch version of the 74F257,74FCT257,and the 74ALS/AS/LS257Quad 2:1 multiplexers .The low ON resistance of the QS3257 allows inputsto be connected to outputs without adding propagation delay and withoutgenerating additional ground bounce noise
Mux/Demux devices provide an order of magnitude faster speed thanequivalent logic devices .
The QS3257 is characterized for operation at -40°C to +85°C .
Product Features
• Enhanced N channel FET with no inherent diode to Vcc
• 5Ω bidirectional switches connect inputs to outputs
• Pin compatible with the 74F257,74FCT257,and 74FCT257T
• Zero propagation delay, zero ground bounce
• Undershoot clamp diodes on all switch and control inputs
• TTL-compatible control inputs
• Available in QSOP and S1 packages
Product Applications
• Logic replacement
• Video, audio, graphics switching, muxing
• Hot-swapping, hot-docking
• Voltage translation (5V to 3.3V)
• Bus funneling
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-IDTQS3257QG8 |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Signal Switches, Multiplexers, Decoders | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Type | Multiplexer/Demultiplexer |
| Circuit | 4 x 2:1 |
| Independent Circuits | 1 |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 4.75V ~ 5.25V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 16-QSOP |
| Base Product Number | QS3257 |
Product Photos
For more product information, please download the PDF
