Hot selling One stop electronic component supply AT24C164-10SI-2.7 2-Wire Serial EEPROM Memory IC 16Kbit I²C 400kHz 900ns 8-SOIC

Product Features

• Low Voltage and Standard Voltage Operation

– 5.0 (VCC = 4.5V to 5.5V)

– 2.7 (VCC = 2.7V to 5.5V)

– 2.5 (VCC = 2.5V to 5.5V)

– 1.8 (VCC = 1.8V to 5.5V)

• Internally Organized 2048 x 8 (16K)

• 2-Wire Serial Interface

• Schmitt Trigger, Filtered Inputs for Noise Suppression

• Bidirectional Data Transfer Protocol

• 100 kHz (1.8V, 2.5V, 2.7V) and 400 kHz (5V) Compatibility

• Write Protect Pin for Hardware Data Protection

• Cascadable Feature Allows for Extended Densities

• 16-Byte Page Write Mode

• Partial Page Writes Are Allowed

• Self-Timed Write Cycle (10 ms max)

• High Reliability

– Endurance: 1 Million Write Cycles

– Data Retention: 100 Years

– ESD Protection: >3,000V

• Automotive Grade and Extended Temperature Devices Available

• 8-Pin JEDEC SOIC and 8-Pin PDIP Packages

Product Description

The AT24C164 provides 16,384 bits of serial electrically erasable and programmable read only memory (EEPROM) organized as 2048 words of 8 bits each. The device’s cascadable feature allows up to eight devices to share a common 2-wire bus. The

device is optimized for use in many industrial and commercial applications where low power and low voltage operation are essential. The AT24C164 is available in space saving 8-pin PDIP and 8-pin SOIC packages and is accessed via a 2-wire serial

interface. In addition, this device is available in 5.0V (4.5V to 5.5V), 2.7V (2.7V to 5.5V), 2.5V (2.5V to 5.5V) and 1.8V (1.8V to 5.5V) versions.

Specifications

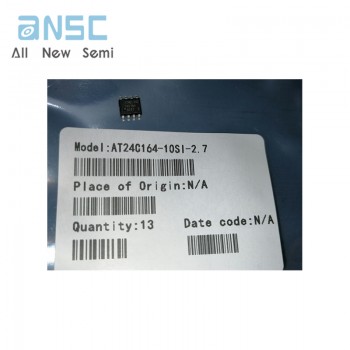

Actual product photos

Product Data Book：

For more product information, please download the PDF
