Hot-selling and scarce XC2S100E-6FTG256C Field Programmable Gate Array IC BGA spot stock

Product Descriptions

The Spartan®-IIE Field-Programmable Gate Array family  gives users high performance, abundant logic resources,  and a rich feature set, all at an exceptionally low price. The  seven-member family offers densities ranging from 50,000  to 600,000 system gates,  System performance is supported beyond 200 MHz.

Features include block RAM (to 288K bits), distributed RAM  (to 221,184 bits), 19 selectable I/O standards, and four  DLLs (Delay-Locked Loops). Fast, predictable interconnect  means that successive design iterations continue to meet  timing requirements.

The Spartan-IIE family is a superior alternative to  mask-programmed ASICs. The FPGA avoids the initial cost,  lengthy development cycles, and inherent risk of  conventional ASICs. Also, FPGA programmability permits  design upgrades in the field with no hardware replacement  necessary (impossible with ASICs).

Product Features

• Second generation ASIC replacement technology

- Densities as high as 15,552 logic cells with up to 600,000 system gates

- Streamlined features based on Virtex®-E FPGA architecture

- Unlimited in-system reprogrammability

- Very low cost

- Cost-effective 0.15 micron technology

• System level features

- SelectRAM™ hierarchical memory:

· 16 bits/LUT distributed RAM

· Configurable 4K-bit true dual-port block RAM

· Fast interfaces to external RAM

- Fully 3.3V PCI compliant to 64 bits at 66 MHz and CardBus compliant

- Low-power segmented routing architecture

- Dedicated carry logic for high-speed arithmetic

- Efficient multiplier support

- Cascade chain for wide-input functions

- Abundant registers/latches with enable, set, reset

- Four dedicated DLLs for advanced clock control

· Eliminate clock distribution delay

· Multiply, divide, or phase shift

- Four primary low-skew global clock distribution nets

- IEEE 1149.1 compatible boundary scan logic

Product Specification

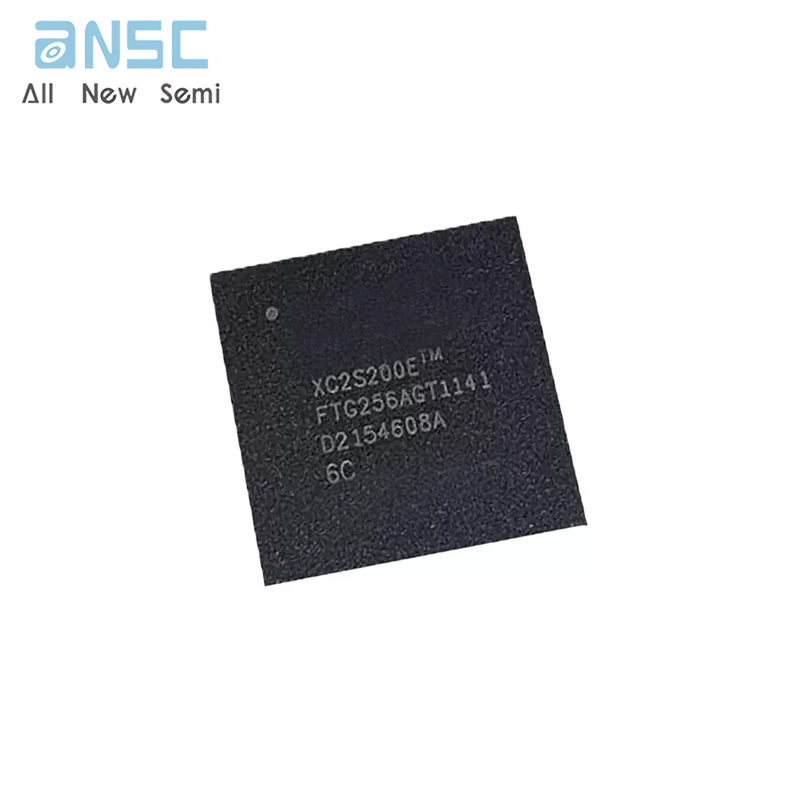

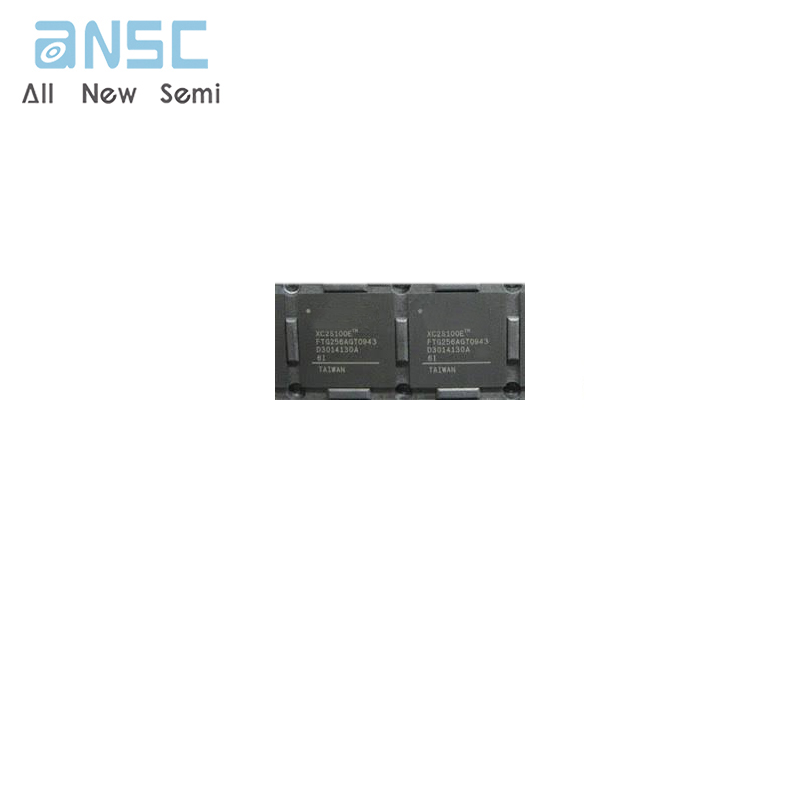

Product Photos

For more product information, please download the PDF
