Hot-selling and scarce S25FL032P0XMFI010 32-Mbit 3.0 V Flash Memory IC 8-SOIC spot stock

Product Descriptions

The S25FL032P is a 3 .0 V (2 .7 V to 3.6 V), single-power-supply Flash memory device. The device consists of 64 uniform 64-KB sectors with the two (top or bottom) 64-KB sectors further split up into thirty-two 4-KB sub sectors. The S25FL032P device is fully backward compatible with the S25FL032A device.

The device accepts data written to Serial Input (SI) and outputs data on Serial Output (SO). The devices are designed to be programmed in-system with the standard system 3.0-V VCC supply.

Product Features

Single power supply operation

– Full voltage range: 2.7 V to 3.6 V read and write operations

Memory architecture

– Uniform 64-KB sectors

–Top or bottom parameter block (two 64-KB sectors (top or bottom) broken down into 16 4-KB sub-sectors each)

–256-byte page size

– Backward compatible with the S25FL032A device

Program

– Page Program (up to 256 bytes) in 1.5 ms (typical)

– Program operations are on a page by page basis

–Accelerated programming mode via 9-V W#/ACC pin

– Quad Page Programming

Erase

– Bulk erase function

– Sector erase (SE) command (D8h) for 64-KB sectors

– Sub-sector erase (P4E) command (20h) for 4-KB sectors

– Sub-sector erase (P8E) command (40h) for 8-KB sectors

Cycling endurance

– 100,000 cycles per sector typical

Data retention

–20 years typical

Device ID

–JEDEC standard two-byte electronic signature

– RES command one-byte electronic signature for backward compatibility

One time programmable (OTP) area for permanent, secure identification; can be programmed and locked at the factory or by the customer

Product Specifications

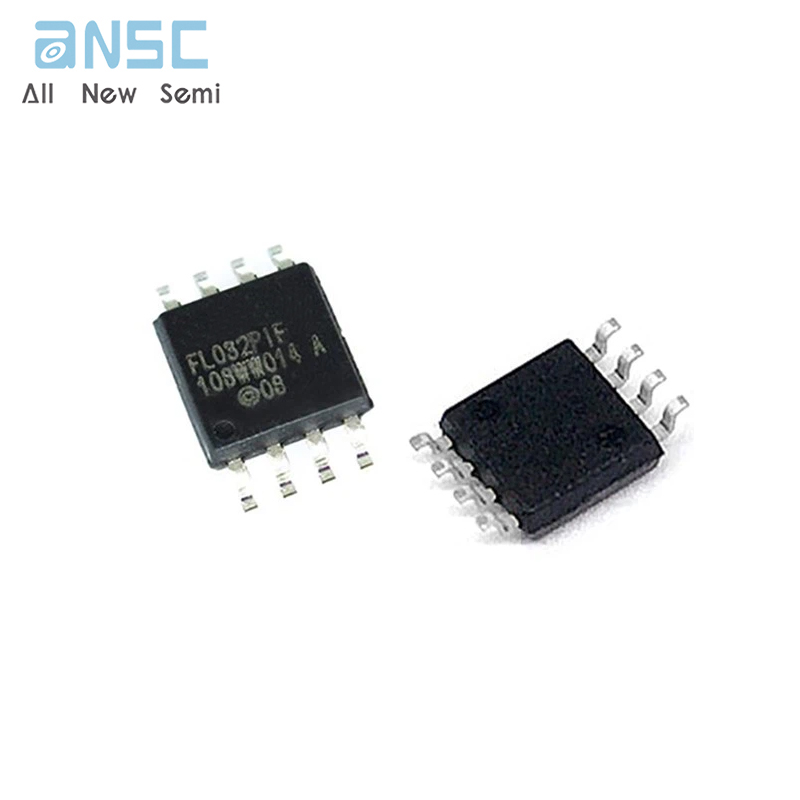

Product Photos

For more product information, please download the PDF

WhenCE is HIGH (deselected),the device assumes a standby mode at which the power dissipation can be reduced down to250 µW (typical) with CMOS input levels.
