Hot-selling and scarce ATMEGA8L-8AU 8-bit Atmel with 8KBytes InSystem Programmable Flash 32-TQFP spot stock

Product Features

• High-performance, Low-power Atmel®AVR® 8-bit Microcontroller

• Advanced RISC Architecture

– 130 Powerful Instructions – Most Single-clock Cycle Execution

– 32 × 8 General Purpose Working Registers

– Fully Static Operation

– Up to 16MIPS Throughput at 16MHz

– On-chip 2-cycle Multiplier

• High Endurance Non-volatile Memory segments

– 8Kbytes of In-System Self-programmable Flash program memory

– 512Bytes EEPROM

– 1Kbyte Internal SRAM

– Write/Erase Cycles: 10,000 Flash/100,000 EEPROM

– Data retention: 20 years at 85°C/100 years at 25°C(1)

– Optional Boot Code Section with Independent Lock Bits

In-System Programming by On-chip Boot Program

True Read-While-Write Operation

– Programming Lock for Software Security

• Peripheral Features

– Two 8-bit Timer/Counters with Separate Prescaler, one Compare Mode

– One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode

– Real Time Counter with Separate Oscillator

– Three PWM Channels

– 8-channel ADC in TQFP and QFN/MLF package Eight Channels 10-bit Accuracy

– 6-channel ADC in PDIP package Six Channels 10-bit Accuracy

– Byte-oriented Two-wire Serial Interface

– Programmable Serial USART

– Master/Slave SPI Serial Interface

– Programmable Watchdog Timer with Separate On-chip Oscillator

– On-chip Analog Comparator

• Special Microcontroller Features

– Power-on Reset and Programmable Brown-out Detection

– Internal Calibrated RC Oscillator

– External and Internal Interrupt Sources

– Five Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, and Standby

• I/O and Packages

– 23 Programmable I/O Lines

– 28-lead PDIP, 32-lead TQFP, and 32-pad QFN/MLF

• Operating Voltages

– 2.7V - 5.5V (ATmega8L)

– 4.5V - 5.5V (ATmega8)

• Speed Grades

– 0 - 8MHz (ATmega8L)

– 0 - 16MHz (ATmega8)

• Power Consumption at 4Mhz, 3V, 25C

– Active: 3.6mA

– Idle Mode: 1.0mA

– Power-down Mode: 0.5µA

Product Specification

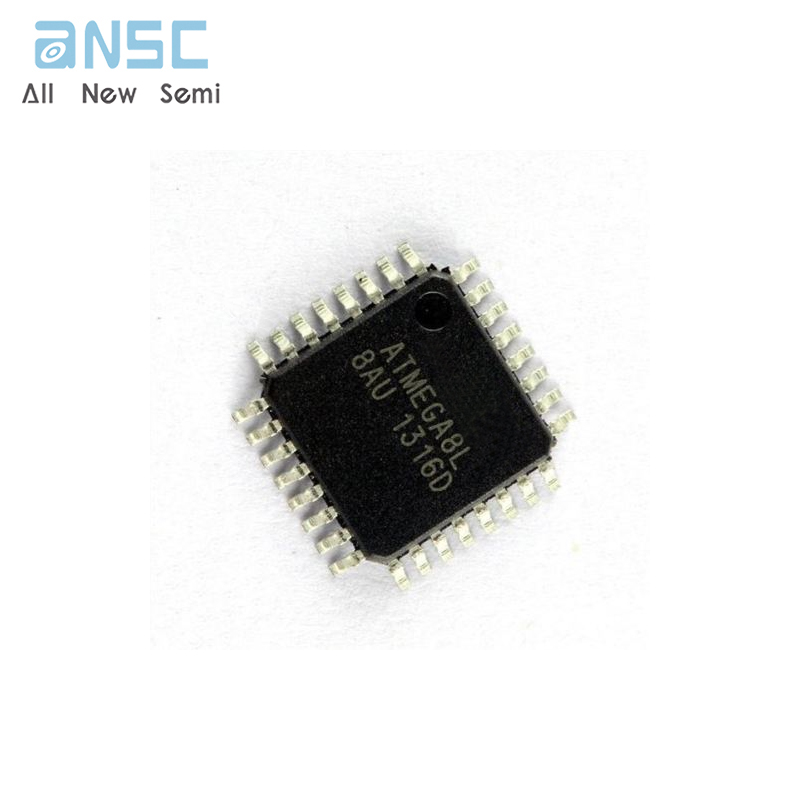

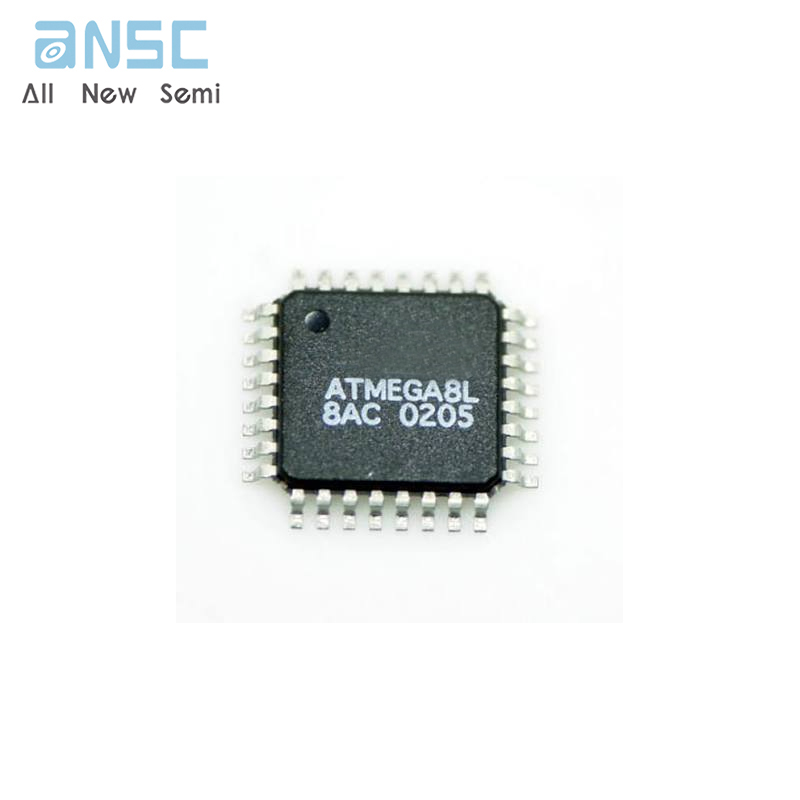

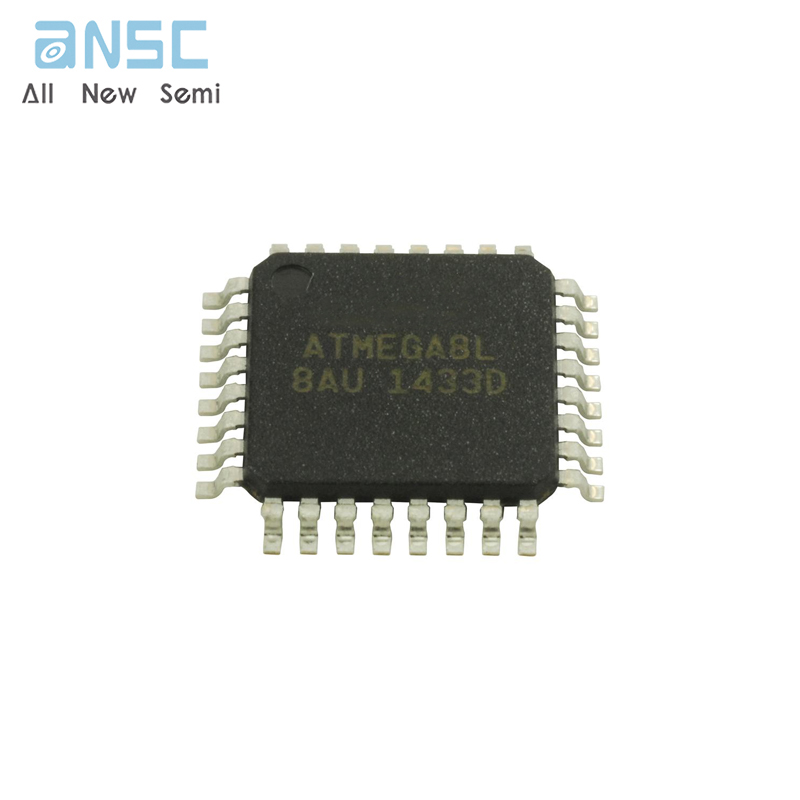

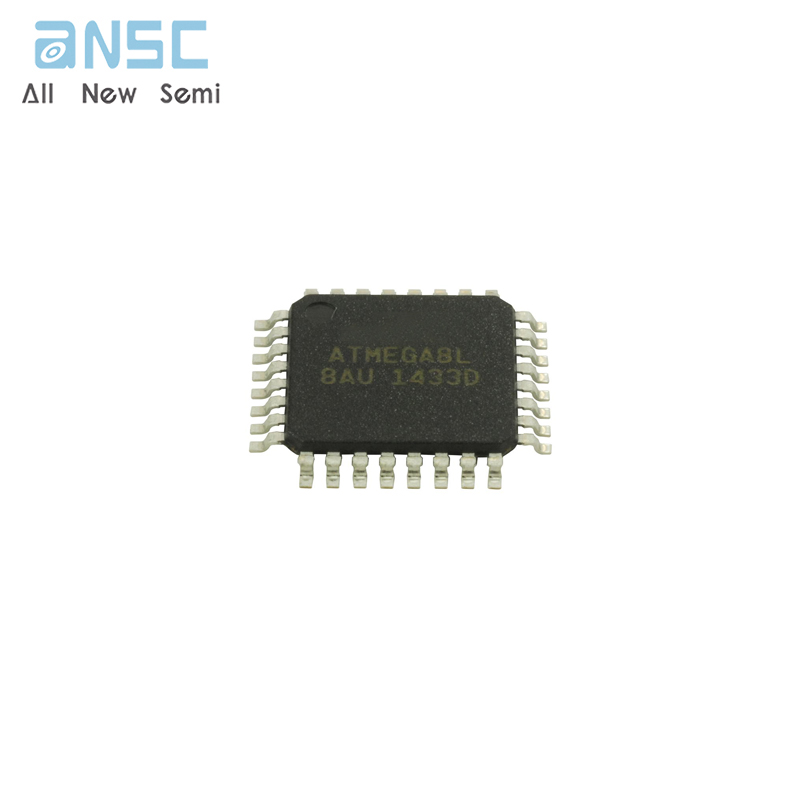

Product Photos

For more product information, please download the PDF
