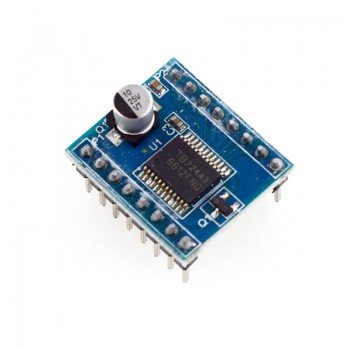

TB6612FNG motor drive board module dual wheel self balancing small car dual wheel balancing
Manufacturer
Manufacturer Product Number
TB6612FNG
Description
TB6612FNG motor drive board module dual wheel
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The TB6612FNG small volume motor drive board is equipped with two H-bridges, which can control up to two DC motors. Each channel outputs a continuous driving current of up to 1.2A (with a peak starting current of 2A/3.2A). The AIN BIN signal can be used for four modes to control the motor's forward/reverse/braking/stopping. The motor can rotate at any speed through PWM signal input, with a frequency of up to 100kHz for PWM signal control
Interface Description
The motor drive board has 16 pins
Power Supply (VCC): 5V
Motor drive voltage (VM): 5V~13.5V
GND: Grounding, in this module, three GND pins are connected to each other
AIN1, AIN2, BIN1, BIN2 to control forward and reverse rotation
A01 A02: Connect motor 1
B01 B02: Connect motor 2
PWMA PWMB: Signal input is used for PWM control of motor speed
NC: Hanging in the air
Product Size
