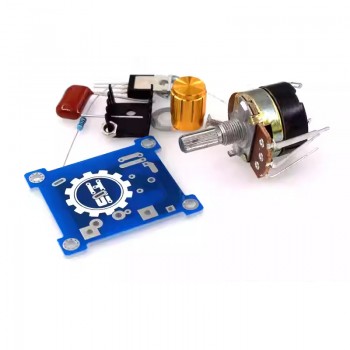

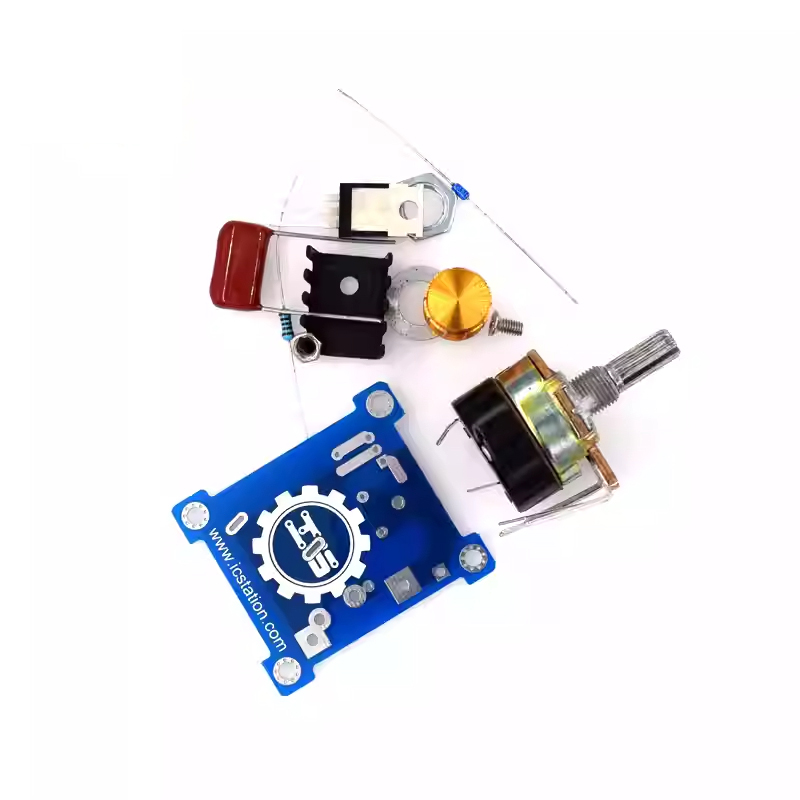

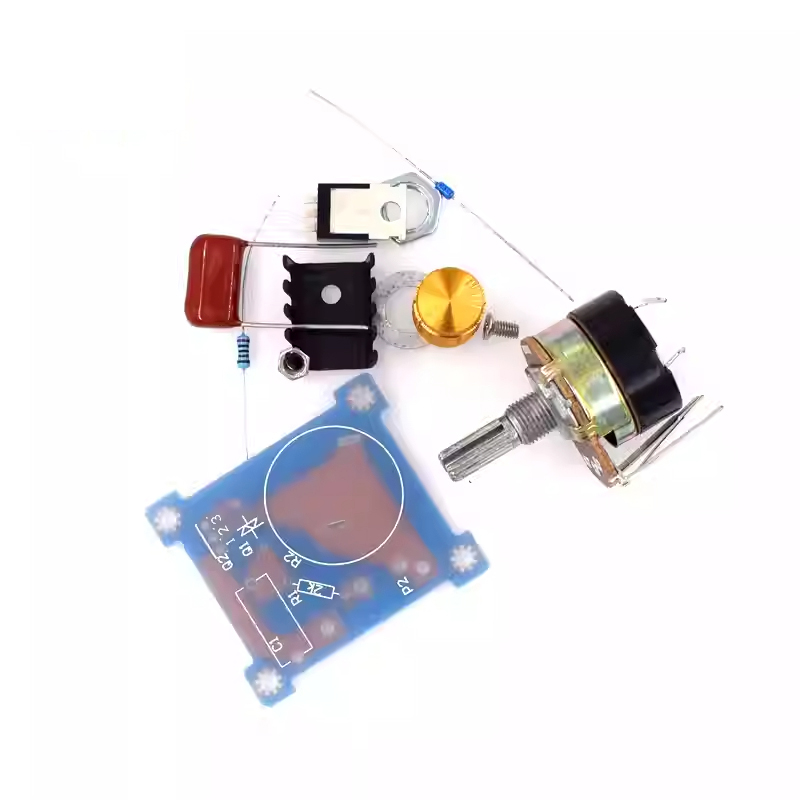

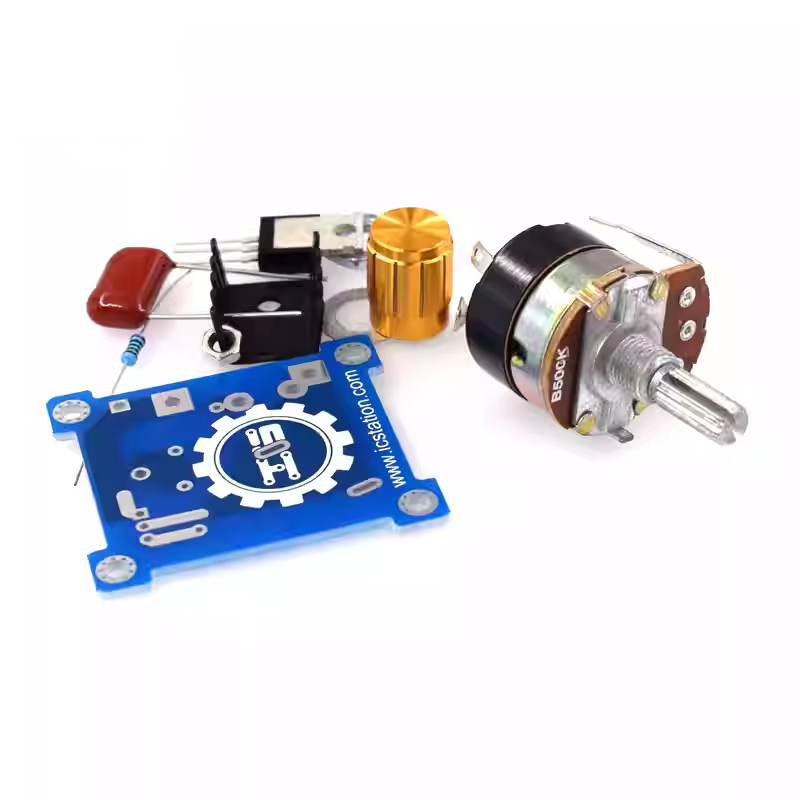

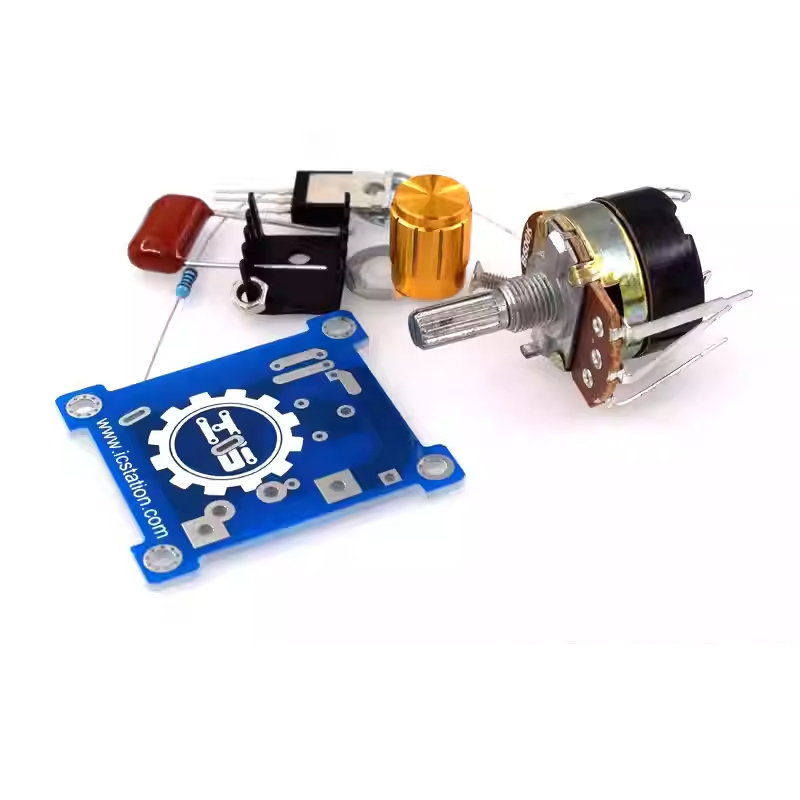

220V 500W dimming, voltage regulation, temperature regulation, speed control switch, infinitely variable speed control module

Product Parameter

Rated power: P=U1; 500W=220V*2.27A

Model: 500W dimming speed controller; Speed control switch

Rated power: 500W

Suitable for dimming and speed regulation of AC motors, lamps, etc. with a power output of over 100W and below 500W; Can be used for exhaust fan speed regulation, light adjustment

Motor speed

Product Note

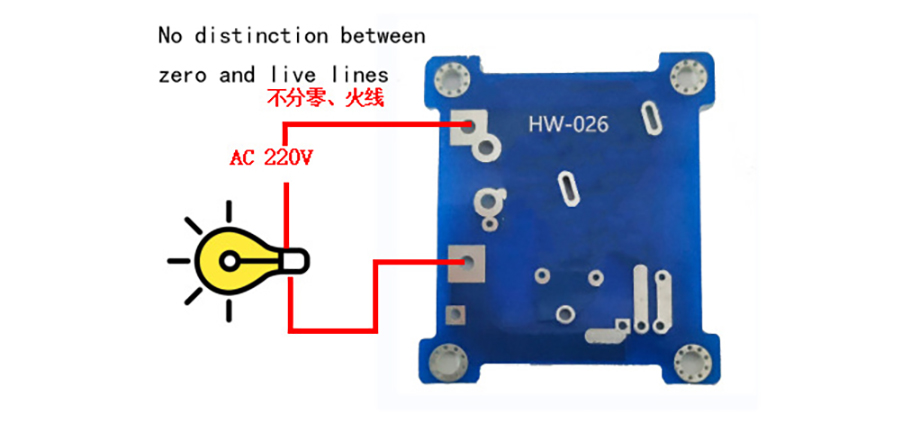

1. Pay attention to wiring according to the diagram and do not make mistakes;

2. This document only represents the editor's understanding and parameters of the product at the time of editing. Any changes in the future will not be notified separately;

3. There are many types of components in the loose parts, and if there are some small components missing from the package, we hope for your understanding;

4. Start welding the smaller components and then weld the larger ones. Weld the horizontal ones first and then the vertical ones;

5. Individual components such as resistors and capacitors are temporarily out of stock, and the seller will send components with nearby values to replace them. Due to different batches, the color and appearance of the components may not be the same as in the picture. We hope for your understanding.

Product Functions

The main purpose of this product production kit is for learning and use. Through continuous hands-on practice, it provides one's own knowledge and skills. Assembling involves certain risks and requires a certain level of electronic foundation, hands-on ability, and technical proficiency.

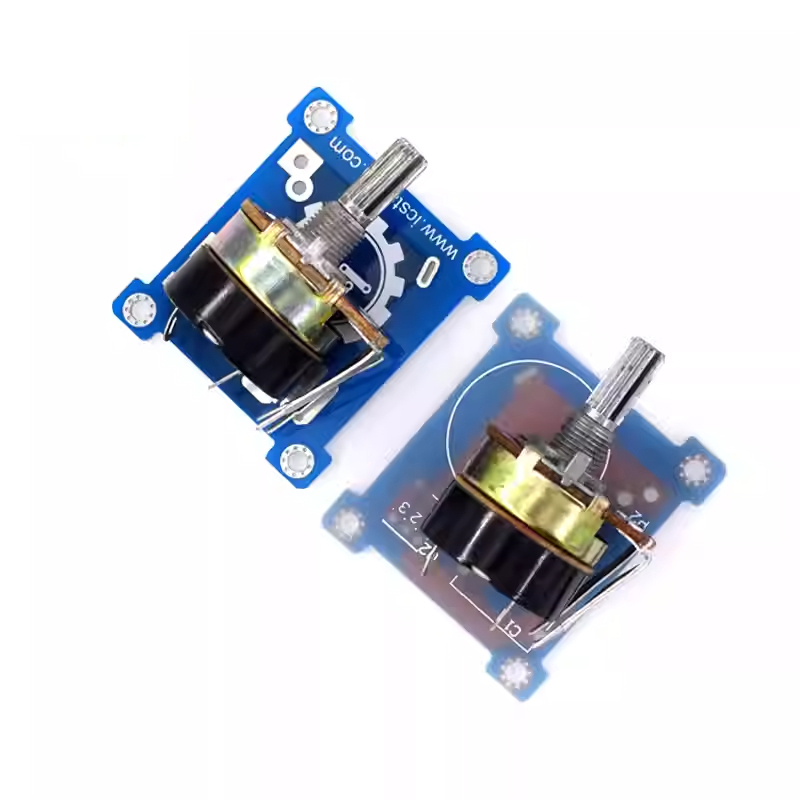

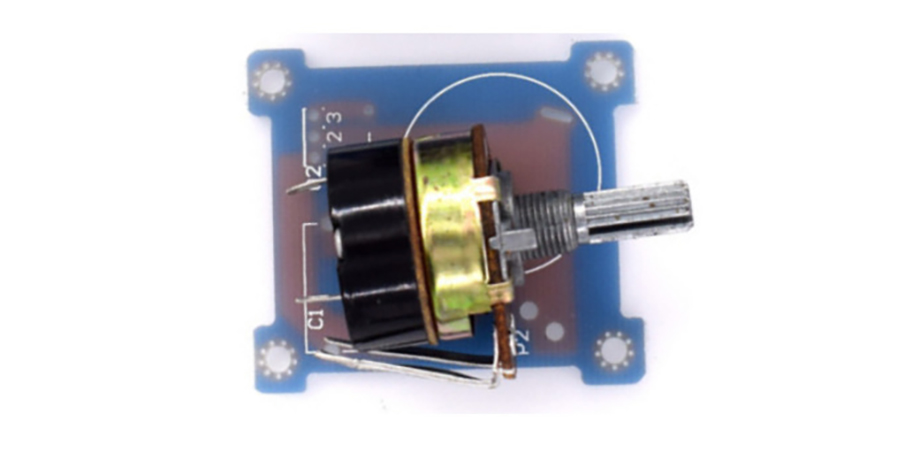

Finished product display：

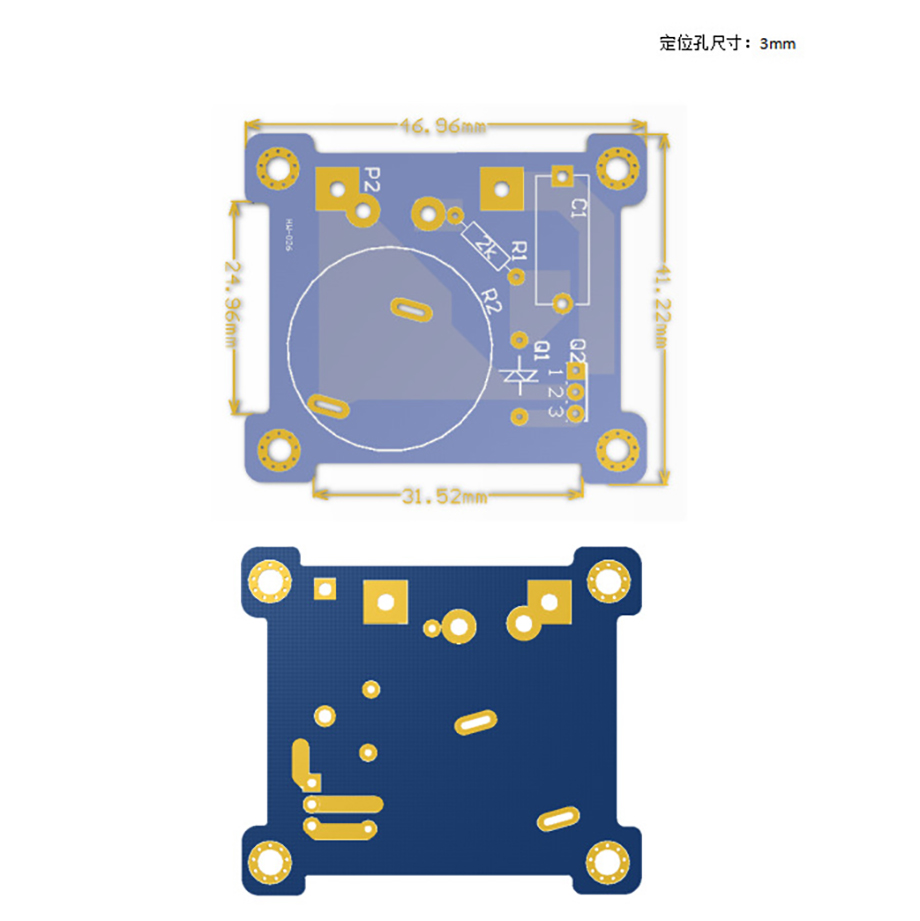

Product Size

Product Show
