Hot-selling and scarce PNX8511HW/B1 Analog companion chip QFP spot stock

Product Descriptions

The PNX8510; PNX8511 is an analog backend companion chip to digital ICs processing video and audio signals.

The primary difference between the PNX8510 and the PNX8511 is:

• PNX8510 includes the Macrovision™ pay-per-view copy protection system

• PNX8511 does not include Macrovision™

​

PNX8510/11 provides two video encoders through two standardized D1 interfaces. The encoders can be bypassed to get direct access to the video DACs for higher resolution displays. PNX8510/11 also contains a sophisticated sync raster engine which can be utilized to generate various synchronization patterns for interlaced and non-interlaced image formats. The sync raster engine together with an up-sampling filter and a sync insertion unit compose a complete HDTV-capable data path including tri-level sync generation.

Product Features

■  Six 10-bit video DACs running at up to 135 MHz 1LSB DNL

■  Four audio DACs arranged as two stereo pairs

■  Two built-in digital video encoders

■  PAL B/G, NTSC-M and SECAM encoding

■  Two 10-bit D1 inputs with embedded VBI data

■  Two I2 S-bus independent audio input ports

■   I2 C-bus programmable (slave interface)

■  Support for high resolution video out up to 81 MHz interface clock rate

■  Support for input modes 2xD1, RGB, 1x 2D1 muxed, 24/30-bit RGB, DD1

■  Programmable generation of embedded analog and external digital sync signals compliant to VESA and SMPTE 274 standards

■  VBI encoding for standard definition video out

■  Teletext insertion for PAL-WST, NTSC-WST, NABTS

■  VPS video programming service encoding

■  Closed caption encoding

■  CGMS copy generation management system according to CPR-1204

■   Internal color bar generator for standard definition video out

■  JTAG-controlled test signals on video and audio converters

■  Macrovision™ pay-per-view copy protection system, rev. 7.1 (SCART support with Macrovision™ copy protection on the RGB lines)

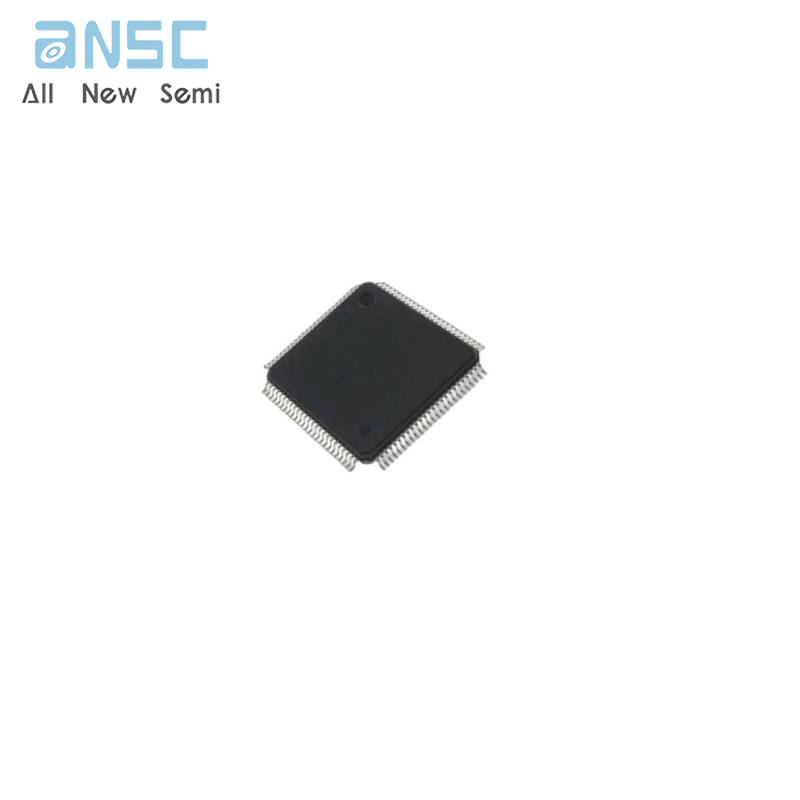

Product Photos

For more product information, please download the PDF
