Hot-selling and scarce SNJ54LS245W OCTAL BUS TRANSCEIVERS WITH 3-STATE OUTPUTS LCFP20 spot stock

Product Descriptions

These octal bus transceivers are designed for asynchronous two-way communication between data buses. The control-function implementation minimizes external timing requirements.

The devices allow data transmission from the A bus to the B bus or from the B bus to the A bus, depending    on    the    logic    level    at    the direction-control (DIR) input. The output-enable(OE)  input can disable the device so that the buses are effectively isolated.

Product Features

3-State Outputs Drive Bus Lines Directly

PNP Inputs Reduce dc Loading on Bus Lines

Hysteresis at Bus Inputs Improves Noise Margins

Typical Propagation Delay Times Port to Port, 8 ns

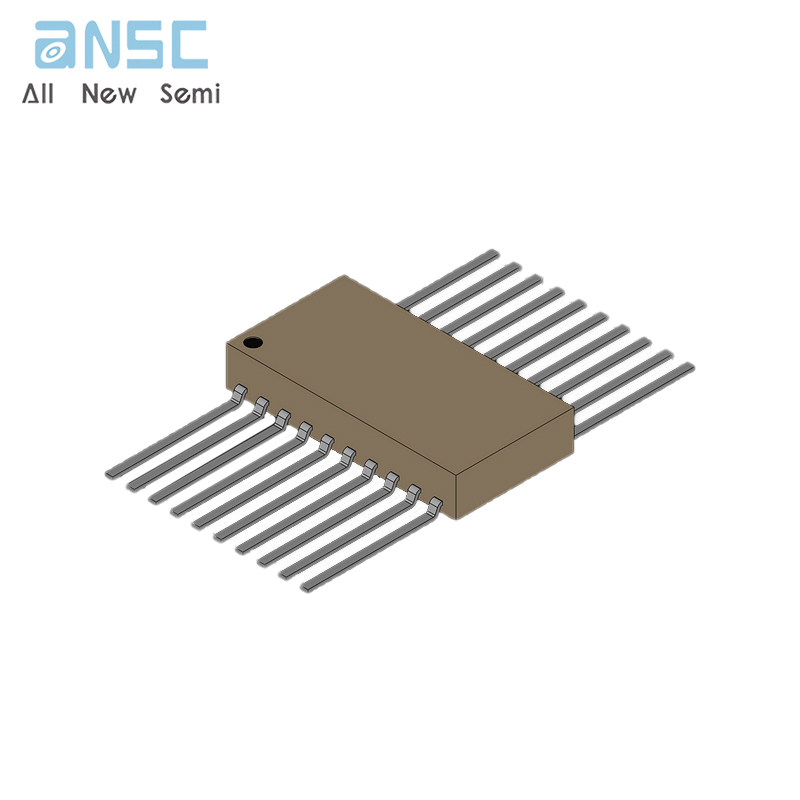

Product Photos

For more product information, please download the PDF
