Hot-selling and scarce HMC558LC3BTR GaAs MMIC FUNDAMENTAL MIXER, 5.5 - 14.0 GHz QFN spot stock
Manufacturer Product Number
HMC558LC3BTR
Description

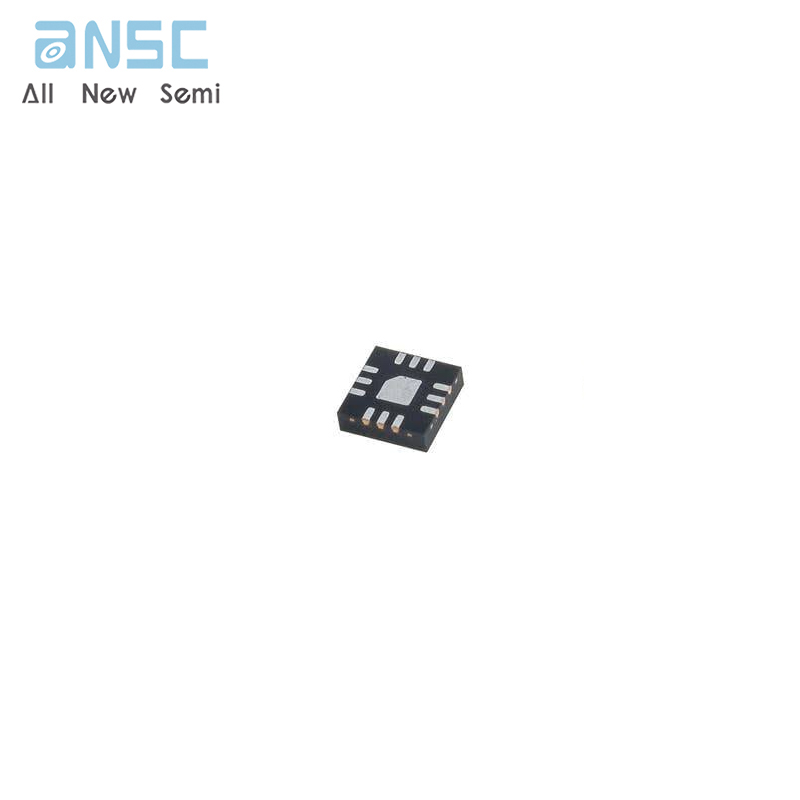

HMC558LC3BTR GaAs MMIC FUNDAMENTAL MIXER, 5.5 - 14.0 GHz QFN spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The HMC558LC3B is a general purpose double balanced mixer in a leadless RoHS compliant SMT package that can be used as an upconverter or downconverter between 5.5 and 14 GHz. This mixer is fabricated in a GaAs MESFET process, and requires no external components or matching circuitry. The HMC558LC3B provides excellent LO to RF and LO to IF isolation due to optimized balun structures and operates with LO drive levels as low as+9 dBm. The RoHS compliant HMC558LC3B eliminates the need for wire bonding, and is compatible with high volume surface mount manufacturing techniques.
Product Features
Passive Double Balanced Topology
High LO/RF Isolation: 45 dB
Low Conversion Loss: 7 dB
Wide IF Bandwidth: DC - 6 GHz
12 Lead Ceramic 3x3mm SMT Package: 9mm2
Product Applications
The HMC558LC3B is ideal for:
• Point-to-Point Radios
• Point-to-Multi-Point Radios
• Test Equipment & Sensors
• Military End-Use
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-HMC558LC3BTR |
| Category | RF and Wireless |
| RF Mixers | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| RF Type | General Purpose |
| Frequency | 5.5GHz ~ 14GHz |
| Number of Mixers | 1 |
| Noise Figure | 8.5dB |
| Secondary Attributes | Up/Down Converter |
| Mounting Type | Surface Mount |
| Package / Case | 12-VFCQFN Exposed Pad |
| Supplier Device Package | 12-CSMT (3x3) |
| Base Product Number | HMC558 |
