Hot-selling and scarce TC74VHC174FT HEX D-TYPE FLIP-FLOP WITH CLEAR TSSOP20 spot stock

Product Descriptions

The TC74VHC174 is an advanced high speed CMOS HEX D-TYPE FLIP FLOP fabricated with silicon gate C2MOS technology.

It achieves the high speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation.

Information signals applied to D inputs are transferred to the Q output on the positive going edge of the clock pulse.

When the CLR  input is held low, the Q output are in the low logic level independent of the other inputs.

An input protection circuit ensures that 0 to 5.5 V can be applied to the input pins without regard to the supply voltage. This device can be used to interface 5 to 3 V systems and two supply systems such as battery back up. This circuit prevents device destruction due to mismatched supply and input voltages.

Product Features

•High speed: fmax= 150 MHz (typ.) at VCC= 5 V

•Low power dissipation: ICC= 4 μA (max) at Ta = 25°C

•High noise immunity: VNIH= VNIL= 28% VCC (min)

•Power down protection is provided on all inputs.

•Balanced propagation delays: tpLH∼−tpHL

•Wide operating voltage range: VCC (opr)= 2 to 5.5 V

•Low noise: VOLP= 0.8 V (max)

•Pin and function compatible with 74ALS174

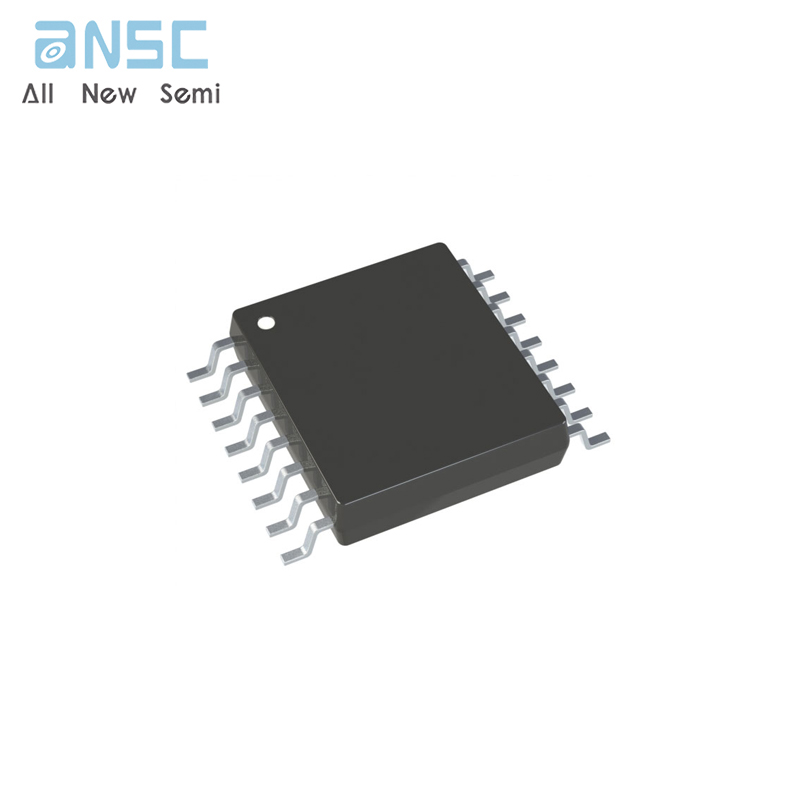

Product Photos

For more product information, please download the PDF
