Hot-selling and scarce AD8112JSTZ Audio/Video, 60 MHz, 16 × 8, Gain of +2 Crosspoint Switch LQFP100 spot stock

 Product Descriptions

The AD8112 is a low cost,fully buffered crosspoint switch matrixthat operates on ±12 V for audio applications and ±5 V forvideo applications . It offers a −3 dB signal bandwidth greaterthan 60 MHz and channel switch times of less than 60 ns with0.1% settling for use in both analog and digital audio . TheAD8112 operated at 20 kHz has a crosstalk performance of−83 dB and isolation of 90 dB . In addition, ground/power pinssurround all inputs and outputs to provide extra shielding foroperation in the most demanding audio routing applications .With a differential gain and differential phase better than 0.1%and 0.1°,respectively, and a 0.1 dB flatness output of up to 10 MHz,the AD8112 is suitable for many video applications ..

The AD8112 includes eight independent output buffers that canbe placed into a disabled state for paralleling crosspoint outputsso that off channel loading is minimized.The AD8112 has a gainof +2. It operates on voltage supplies of ±5 V or ±12 V whileconsuming only 34 mA or 31 mA of current, respectively. Thechannel switching is performed via a serial digital control (whichcan accommodate the daisy chaining of several devices) or viaa parallel control, allowing updating of an individual outputwithout reprogramming the entire array.

The AD8112 is packaged in a 100-lead LQFP and is availableover the commercial temperature range of 0°C to 70°C .

Product Features

Low cost, 16 × 8, high speed, nonblocking switch array

Pin-compatible 16 × 16 version available (AD8113)

Serial or parallel programming of switch array

Serial data out allows daisy chaining control of multiple

16 × 8 arrays to create larger switch arrays

Output disable allows connection of multiple devices

without loading the output bus

Complete solution

Buffered inputs

8 output amplifiers

Operates on ±5 V or ±12 V supplies

Low supply current of 54 mA

Excellent audio performance VS = ±12 V

±10 V output swing

0.002%THD at 20 kHz maximum 20 V p-p (RL = 600 Ω)

Excellent video performance VS = ±5 V

0.1 dB gain flatness of 10 MHz

0.1% differential gain error (RL = 1 kΩ)

0.1° differential phase error (RL = 1 kΩ)

Excellent ac performance

−3 dB bandwidth 60 MHz

Low all-hostile crosstalk of −83 dB at 20 kHz

Reset pin allows disabling of all outputs (connected to a

capacitor to ground provides power-on reset capability)

100-lead LQFP (14 mm × 14 mm)

Product Applications

CCTV surveillance/DVR

Analog/digital audio routers

Video routers (NTSC, PAL, S-Video, SECAM)

Multimedia systems

Video conferencing

Product Specification

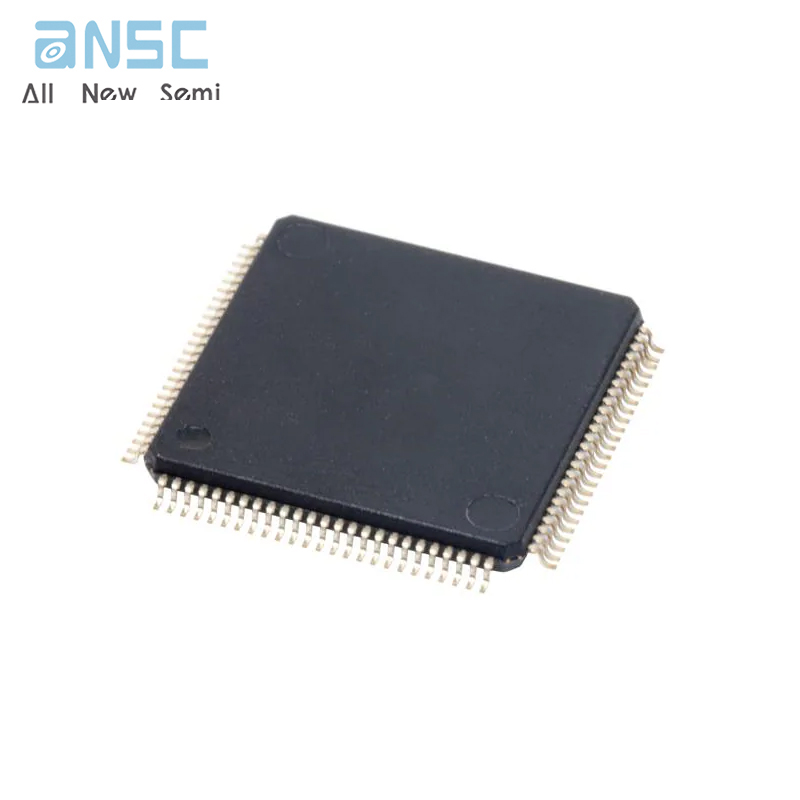

Product Photos

For more product information, please download the PDF
