Hot-selling and scarce AD73360LARZ Six-Input Channel Analog Front End SOP28 spot stock

 Product Descriptions

The AD73360 is a six-input channel analog front-end processorfor general purpose applications including industrial power metering or multichannel analog inputs . It features six 16-bitA/D conversion channels each of which provide 77 dB signal-tonoise ratio over a dc to 4 kHz signal bandwidth . Each channelalso features a programmable input gain amplifier (PGA) withgain settings in eight stages from 0 dB to 38 dB .

The AD73360 is particularly suitable for industrial power metering as each channel samples synchronously, ensuring that thereis no (phase) delay between the conversions . The AD73360 alsofeatures low group delay conversions on all channels .

An on-chip  reference voltage is included and is programmableto accommodate either 3 V or 5 V operation .

The sampling rate of the device is programmable with fourseparate settings offering 64 kHz, 32 kHz, 16 kHz and 8 kHzsampling rates (from a master clock of 16.384 MHz).

A serial port (SPORT) allows easy interfacing of single or cascaded devices to industry standard DSP engines . The SPORTtransfer rate is programmable to allow interfacing to both fastand slow DSP engines .

The AD73360 is available in 28-lead SOIC and 44-lead TQFPpackages .

Product Features

Six 16-Bit A/D Converters

Programmable Input Sample Rate

Simultaneous Sampling

77 dB SNR

64 kS/s Maximum Sample Rate

–83 dB Crosstalk

Low Group Delay (25 s Typ per ADC Channel)

Programmable Input Gain

Flexible Serial Port which Allows Multiple Devices to

Be Connected in Cascade

Single (+2.7 V to +5.5 V) Supply Operation

80 mW Max Power Consumption at +2.7 V

On-Chip Reference

28-Lead SOIC and 44-Lead TQFP Packages

Product Applications

General Purpose Analog Input

Industrial Power Metering

Motor Control

Simultaneous Sampling Applications

Product Specification

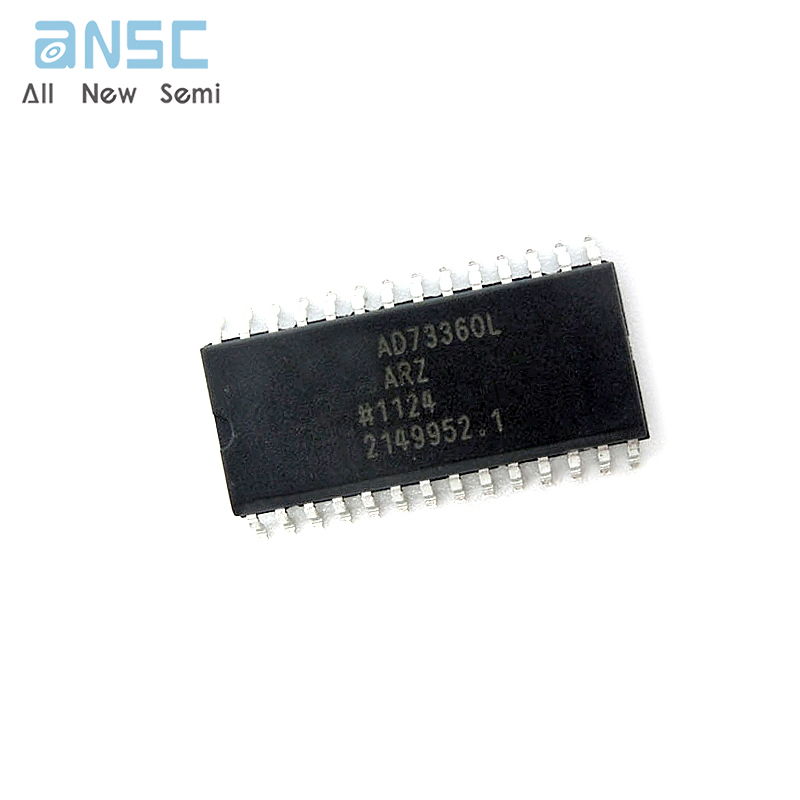

Product Photos

For more product information, please download the PDF
