Hot-selling and scarce ADP3205J Multiphase IMVP-IV Core Controller for Mobile CPUs QFN40 spot stock

Product Descriptions

The ADP3205 is a 1-, 2-, or 3-phase hysteretic peak current modedc-to-dc buck converter controller dedicated to powering a mobileprocessor’s core . The chip optimized low voltage design runs fromthe 3.3 V system supply .The chip contains a precision 6-bit DACwhose nominal output voltage is set by VID code .The ADP3205features high speed operation to allow a minimized inductor sizethat results in the fastest possible change of current to the output .To further minimize the number of output capacitors, the converter features active voltage positioning enhanced with ADOPToptimal compensation to ensure a superior load transient response .The output signals interface with ADP3415 MOSFET drivers,which that are optimized for high speed and high efficiency .TheADP3205 is capable of providing synchronous rectification controlto extend battery lifetime in light load conditions .

The ADP3205 is specified over the extended commercial temperaturerange of 0°C to 100°C and is available in a 40-lead LFCSP package .

Product Features

Pin Programmable 1-, 2-, or 3-Phase Operation

Excellent Static and Dynamic Current Sharing

Superior Load Transient Response when Used with

ADOPT™ Optimal Positioning Technology

Noise-Blanking for Speed and Stability

Synchronous Rectification Control for Optimized Light

Load Efficiency

Soft DAC Output Voltage Transition for VID Change

Cycle-by-Cycle Current Limiting

Latched or Hiccup Current Overload Protection

Masked Power Good during Output Voltage Transients

Soft Start-Up without Power-On In-Rush Current Surge

2-Level Overvoltage and Reverse-Voltage Protection

Product Applications

IMVP-IV CPU Core DC-to-DC Converters

Programmable Output Power Supplies

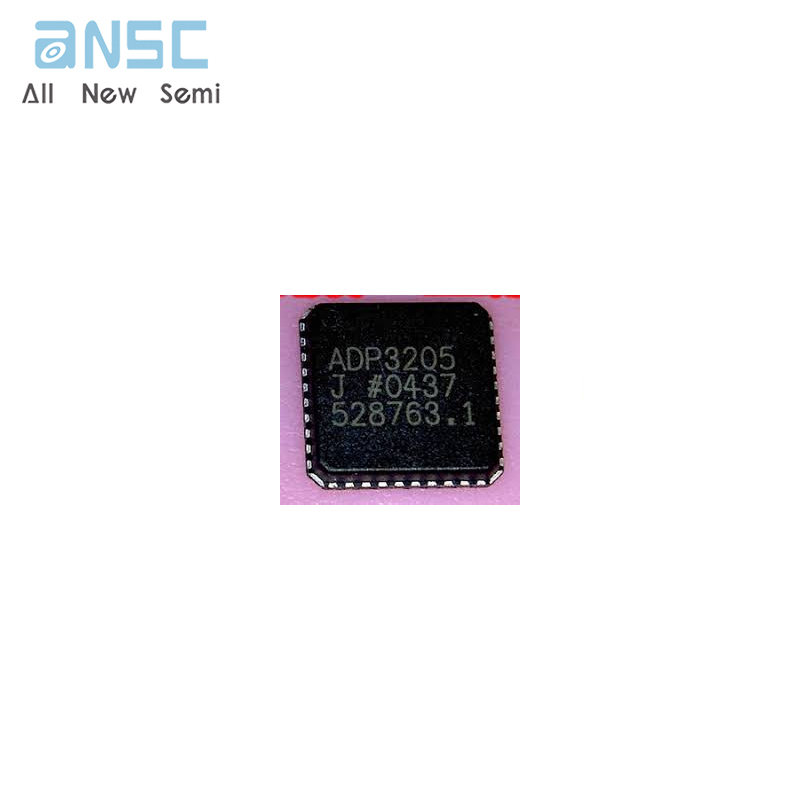

Product Photos

For more product information, please download the PDF
