Hot selling LP38691DTX-5.0 500mA Low Dropout CMOS Linear Regulators Stable with Ceramic Output Capacitors TO-252-3

Manufacturer Product Number
LP38691DTX-5.0
Description

LDO Regulator Pos 5V 0.5A 3-Pin(2+Tab) TO-252 T/R

Package Condition
T/R
Datasheet
LP38691DTX-5.0
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Applications

• Hard Disk Drives

• Notebook Computers

• Battery-Powered Devices

• Portable Instrumentation

Product Benefits and Features

• Wide Input Voltage Range (2.7 V to 10 V)

• All WSON Options are Available as AEC-Q100 Grade 1

• 2 PERCENT Output Accuracy (25°C)

• Low Dropout Voltage: 250 mV at 500 mA (Typical,5 V Out)

• Precision (Trimmed) Bandgap Reference

• Ensured Specifications for –40°C to 125°C

• 1-µA Off-State Quiescent Current

• Thermal Overload Protection

• Foldback Current Limiting

• Ground Pin Current: 55 µA (typical) at full load

• Enable Pin (LP38693)

Specifications

Attribute Attribute value
ANSM-Part# ANSM-LP38691DTX-5.0
Category Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Mfr -
Series -
Package Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Product Status Obsolete
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 10V
Voltage - Output (Min/Fixed) 5V
Voltage - Output (Max) -
Voltage Dropout (Max) 0.45V @ 500mA
Current - Output 500mA
Current - Quiescent (Iq) 55 µA
Current - Supply (Max) 100 µA
PSRR 55dB (120Hz)
Control Features -
Protection Features Over Temperature
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package TO-252-3
Base Product Number LP38691

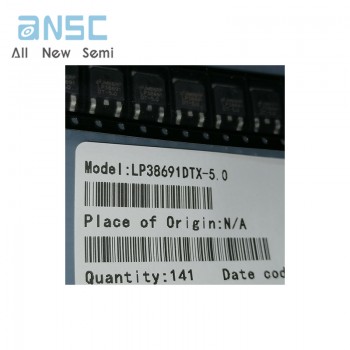

Actual product photos

LP38691DTX-5.0
