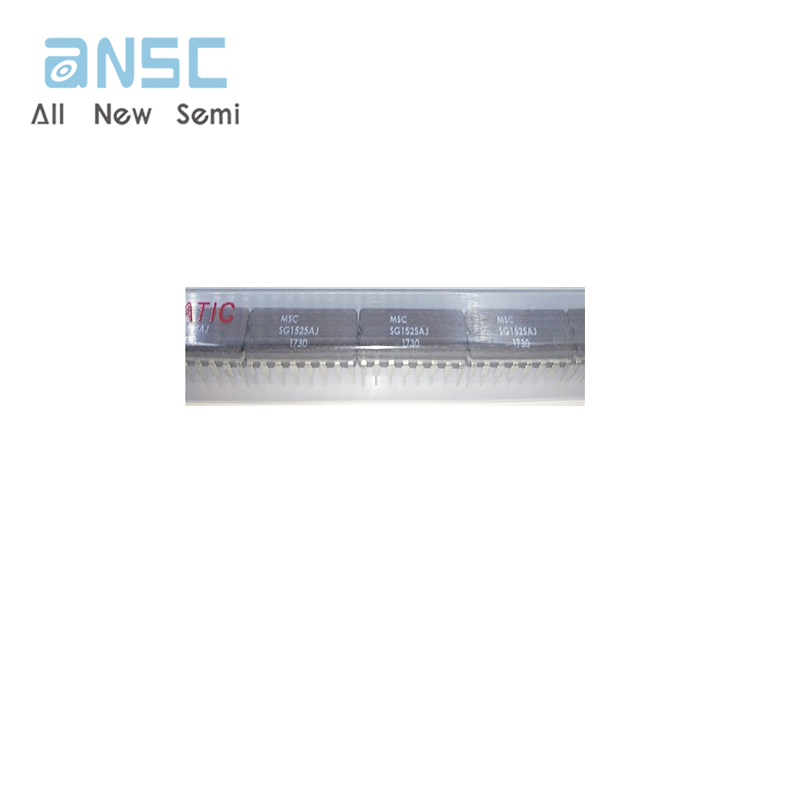

Hot sale Original SG1525AJ IC Push-Pull Regulator Positive Output Step-Up/Step-Down DC-DC Controller IC 16-CERDIP
Manufacturer Product Number
SG1525AJ
Description
SG1525AJ IC Push-Pull Regulator Positive Output Step-Up/Step-Down DC-DC Controller IC 16-CERDIP
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Product Description: The SG1525AJ is a dual-output, push-pull, DC-DC switching controller . This integrated circuit (IC) is designed to regulate the voltage supply from 8V to 35V, making it suitable for a wide range of applications. With its high efficiency and low quiescent current, the SG1525AJ is an excellent choice for power management solutions. Features: Dual-output, push-pull topology for high efficiency and low noise Operating temperature range of -55°C to 125°C Input voltage range of 8V to 35V Output current of 0.5A per output Synchronous rectifier for improved efficiency Pulse width modulation (PWM) control technique with voltage-mode control Enable, frequency control, and soft start control features Low quiescent current of 14mA Lead-free package with tin/lead (Sn/Pb) finish Applications: Power supplies for industrial and automotive applications Point-of-load (POL) regulators for high-current applications Power management solutions for consumer electronics Power conversion and inversion in renewable energy systems |
Product Description
| Type | Description |
| ANSC PART# | ANSC - SG1525AJ |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| DC DC Switching Controllers | |
| Manufacturer | Original |
| Series | - |
| Packaging | Bulk |
| Part Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Push-Pull |
| Number of Outputs | 2 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 35V |
| Frequency - Switching | 100Hz ~ 350kHz |
| Duty Cycle (Max) | 49% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Soft Start |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CERDIP |
| Base Product Number | SG1525 |
Actual image of the product

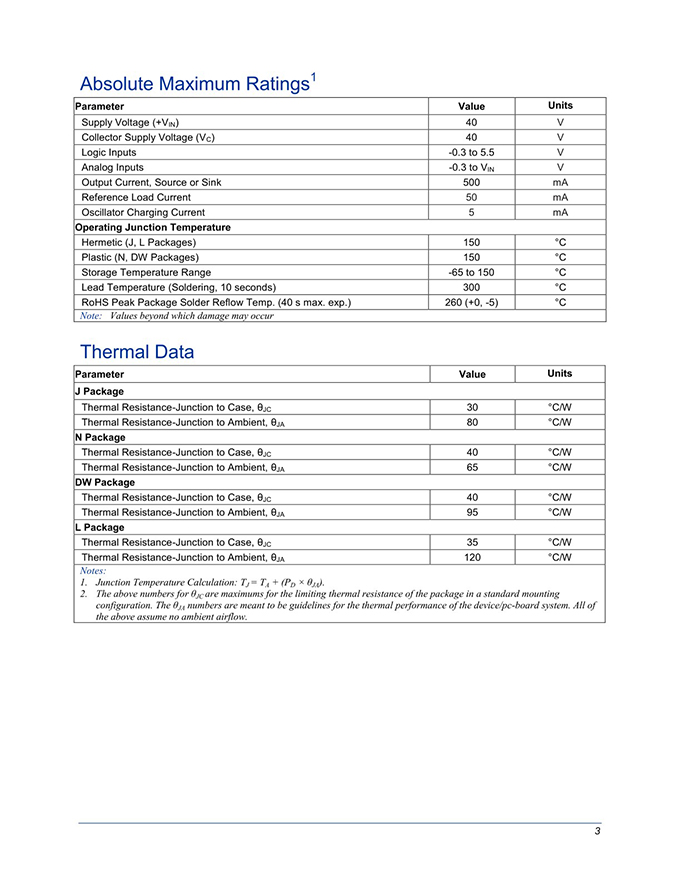

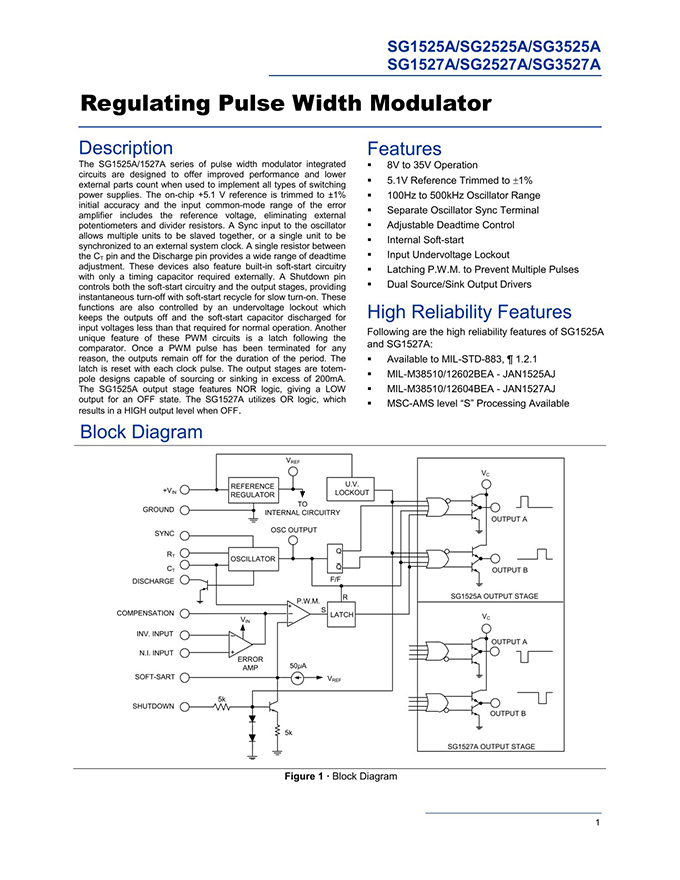

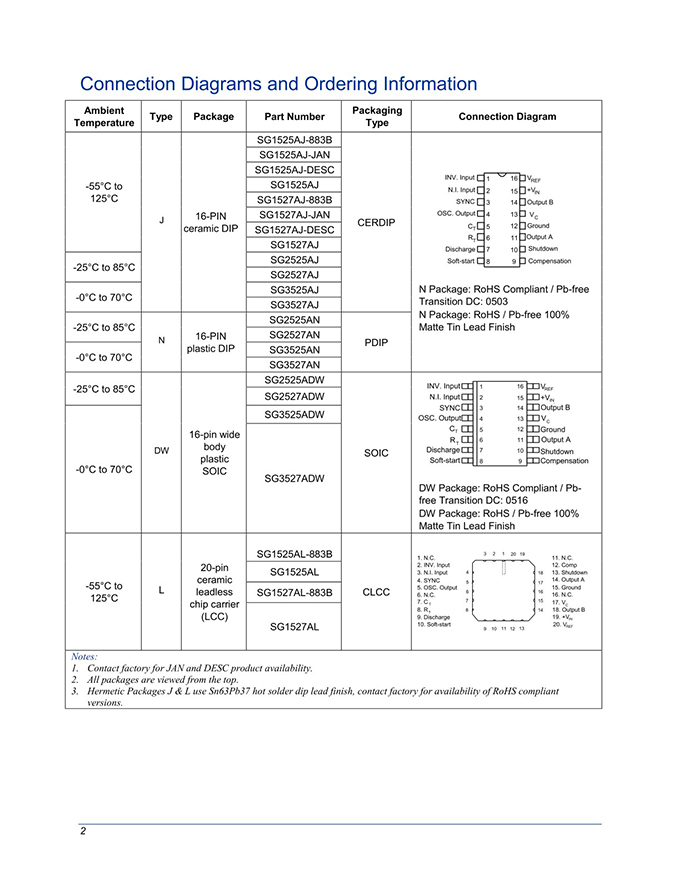

Product datasheet
