Hot sale Original LM317MDT IC REG LINEAR POS ADJ 500MA DPAK Linear Voltage Regulator IC Positive Adjustable 1 Output

Manufacturer Product Number
LM317MDT
Description

LM317MDT IC REG LINEAR POS ADJ 500MA DPAK Linear Voltage Regulator IC Positive Adjustable 1 Output 500mA DPAK

Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

Description
The LM317M is a 3-terminal adjustable positive voltage regulator capable of supplying in excess of 500mA over an output voltage range of 1.2V to 37V. This voltage regulator is exceptionally easy to use and requires only two external resistors to set the output voltage.
Features
• Output Current in Excess of 0.5A
• Output Adjustable Between 1.2V and 37V
• Internal Thermal Overload Protection
• Internal Short Circuit Current Limiting
• Output Transistor Safe Area Compensation
• Floating Operation for High Voltage Applications

Product Description

TYPE DESCRIPTION
ANSC PART# ANSC - LM317MDT
category Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Mfr Original
Series -
Packaging Tube
Part Status Obsolete
Output Configuration Positive
Output Type Adjustable
Number of Regulators 1
Voltage - Input (Max) 40V
Voltage - Output (Min/Fixed) 1.2V
Voltage - Output (Max) 37V
Voltage Dropout (Max) -
Current - Output 500mA
Current - Quiescent (Iq) 10 mA
PSRR 80dB ~ 65dB (120Hz)
Control Features -
Protection Features Over Current, Over Temperature, Short Circuit
Operating Temperature 0°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case TO-252-3, DPAK (2 Leads + Tab), SC-63
Supplier Device Package DPAK
Base Product Number LM317

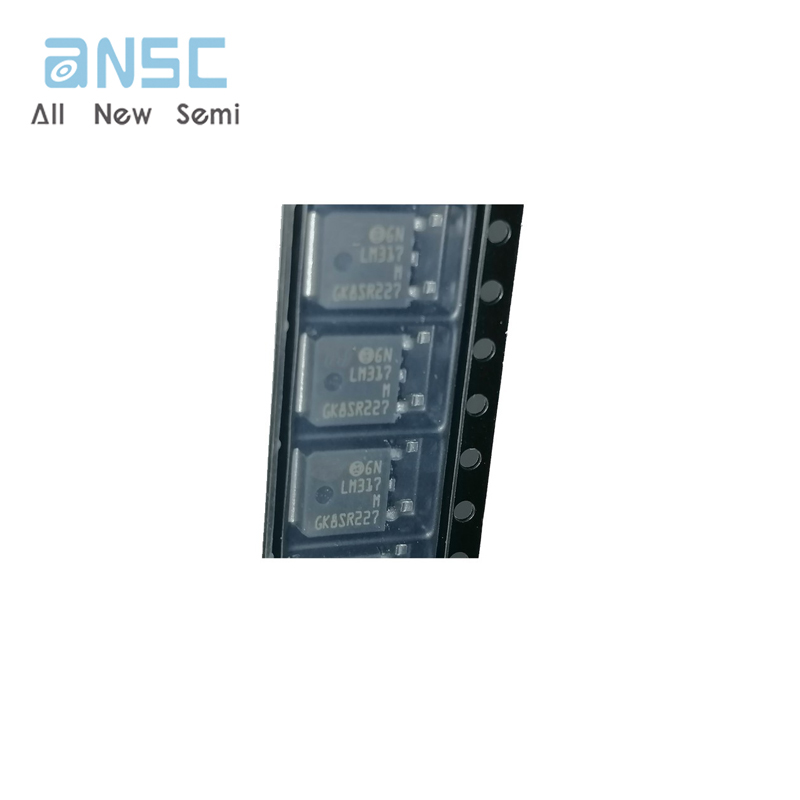

Actual image of the product

LM317MDT

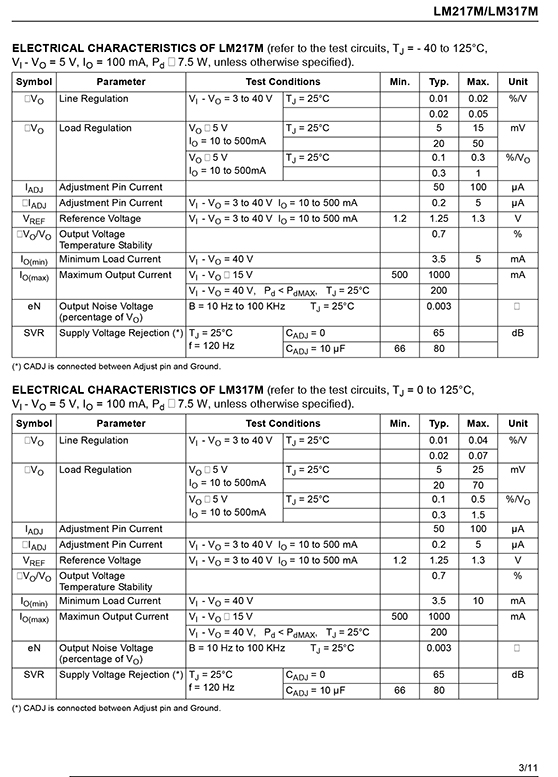

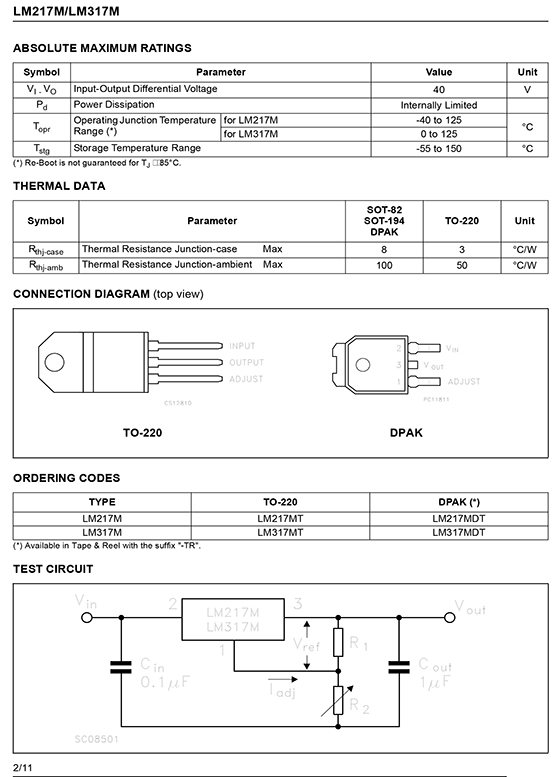

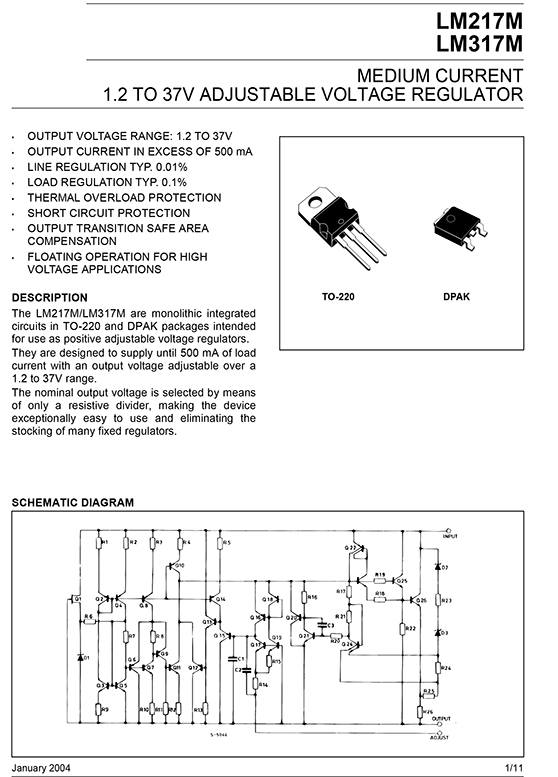

Product datasheet

For more information, please download
