Hot sale Original AD1580ARTZ-REEL PMIC IC VREF SHUNT 0.82% Shunt Voltage Reference IC Fixed 1.225V V ±0.82% 10 mA SOT-23-3

Manufacturer
ADI
Manufacturer Product Number
AD1580ARTZ-REEL
Description

Fixed 0.95mm PMIC IC -40°C~85°C TA Fixed 0.95mm PMIC 1 Channel Power Management (PMIC)

Package Condition
Tape & Reel (TR)

Product Overview

TO-236-3, SC-59, SOT-23-3 is used to simplify the process.This part is used as a voltage reference and has a Shunt control.A Tape & Reel (TR) external package encloses the voltage reference ic.Different functions are terminated with 3.The voltage reference should have ±0.82% tolerance.IC TWO TERMINAL VOLTAGE REFERENCE is coupled with the reference voltage.Test statistics determine the output voltage 1.23V.Having 1 outputs is sufficient.Users can enter input using the Fixed form.The voltage reference ic has 3 pins.During reflow soldering, the temperature shouldn't rise above 260.A voltage reference ic with 3 pins is settled.For PCB designs with high demands, Surface Mount is available.Working within the range of -40°C~85°C TA.AD1580 can be used to find other relevant parts.There are Surface Mount applications that can be used with the reference voltage.The voltage reference ic cannot provide output current greater than 10mA.Communications with high quality are limited to 1 channels.The cathode current of a voltage reference ic should be 50μA.1.225V voltage lower than 1.225V can be output by the voltage reference ic.It generates a fixed voltage of 1.225V.

Product Features

±0.82% Tolerance
TWO TERMINAL VOLTAGE REFERENCE Analog IC
Peak Reflow Temperature: 260
Channel Number: 1

Product Applications

There are a lot of Analog Devices Inc.
AD1580ARTZ-REEL Voltage Reference applications.

· PCMCIA cards

· Automotive

· 3 V/5 V, 8-bit to 12-bit data converters

· Precision data acquisition systems

· High resolution converters

· Industrial process control systems

· Precision instruments

· Notebook Computers

· Cell Phones

· Industrial Process Control



Product Description

Type Description
ANSC PART# ANSC - AD1580ARTZ-REEL
Category Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Reference
Manufacturer Analog Devices Inc.
Series -
Packaging Tape & Reel (TR)
Part Status Obsolete
Reference Type Shunt
Output Type Fixed
Voltage - Output (Min/Fixed) 1.225V
Current - Output 10 mA
Tolerance ±0.82%
Temperature Coefficient 100ppm/°C
Noise - 0.1Hz to 10Hz 5µVp-p
Noise - 10Hz to 10kHz 20µVrms
Voltage - Input -
Current - Supply -
Current - Cathode 50 µA
Operating Temperature  -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23-3
Base Product Number AD1580

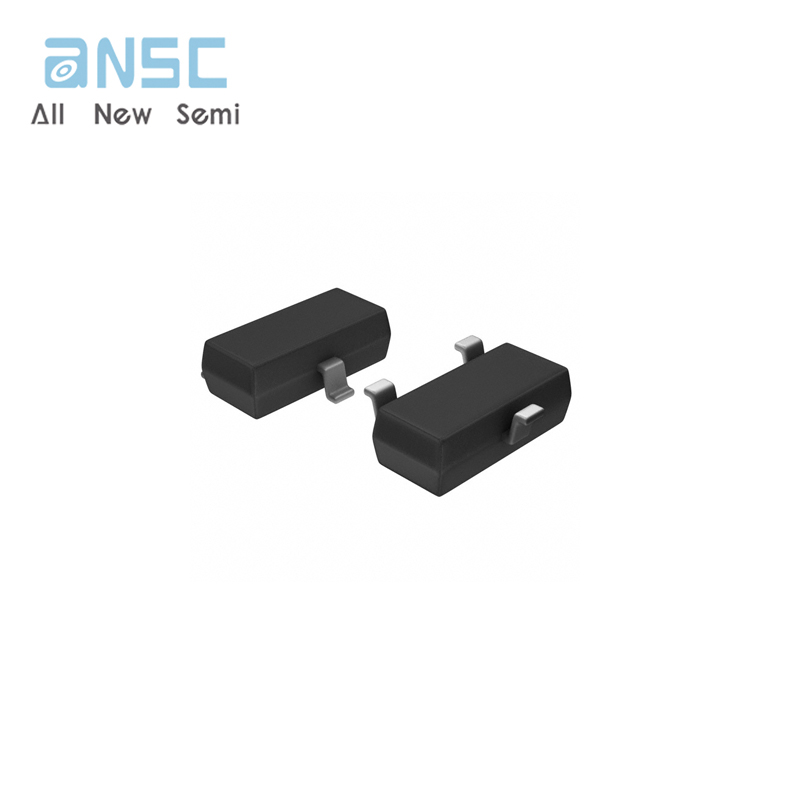

Actual image of the product

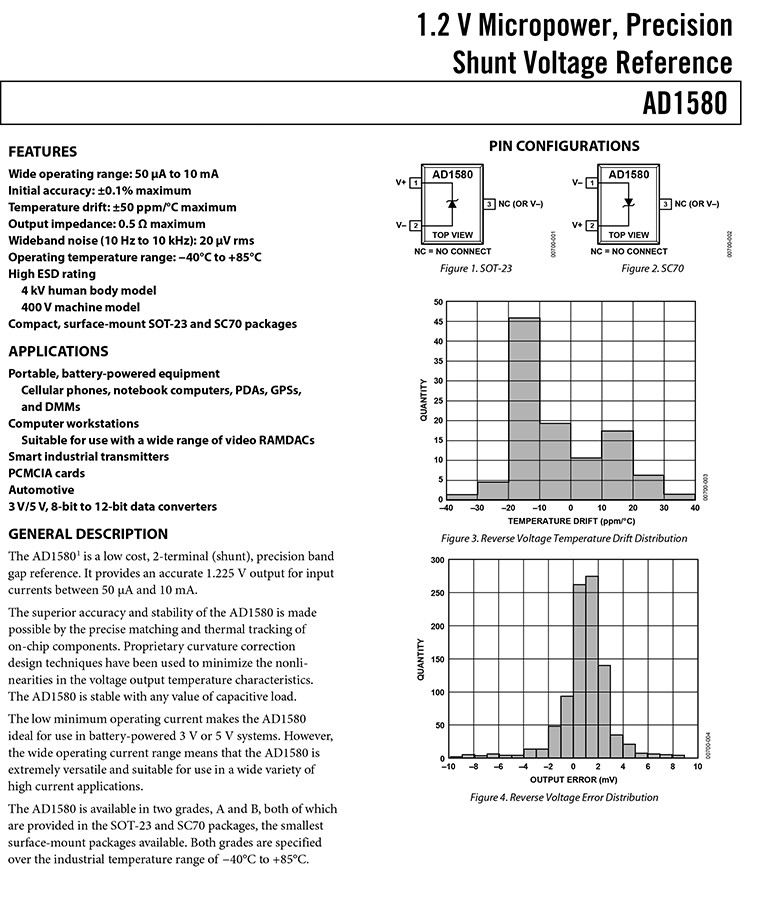

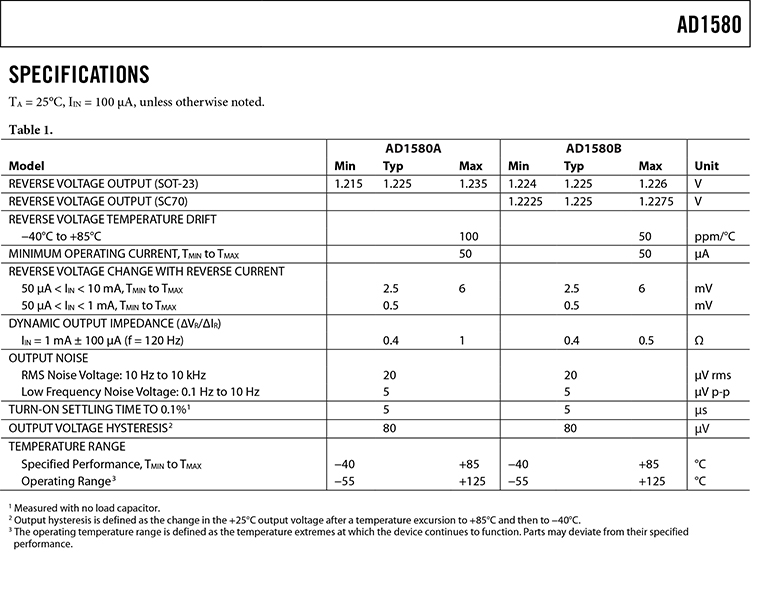

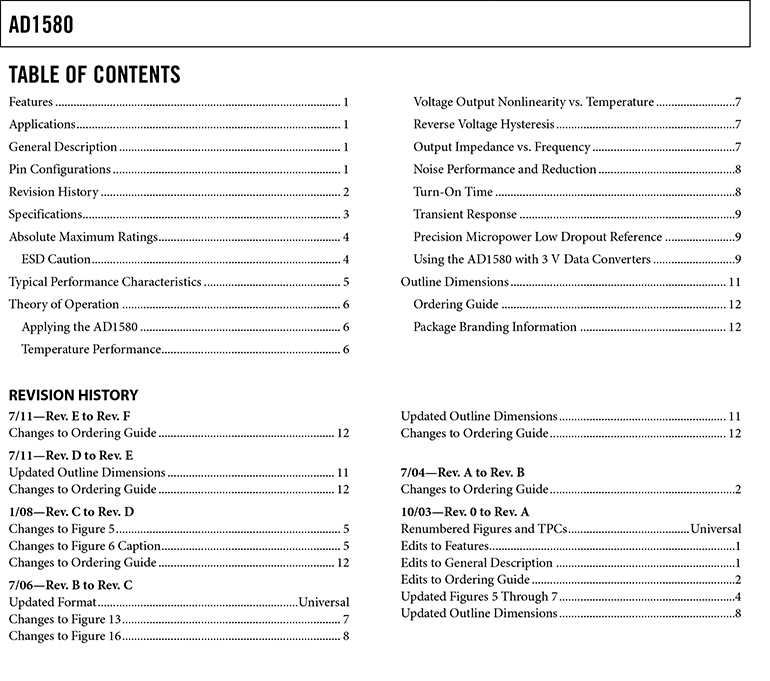

Product datasheet

For more information, please download
