Hot-selling and scarce MP2109DQ-LF-Z Dual 1.2MHz, 800mA Synchronous Step-Down Converter QFN10 spot stock

Product Descriptions

The MP2109 contains two independent 1.2MHz constant frequency, current mode, PWMstep-down  converters.  Each  converter integrates a main switch and a synchronous rectifier for high efficiency without an external Schottky diode. The MP2109 is ideal for powering portable equipment that runs from a single cell Lithium-Ion (Li+) battery. Each converter can supply 800mA of load current from a 2.5V to 6V input voltage.The output voltage can be regulated as low as 0.6V.The MP2109 can also run at 100%duty cycle for low dropout applications.

Product Features

• Up to 95%Efficiency

• 1.2MHz Constant Switching Frequency

• 800mA Load Current on Each Channel

• 2.5V to 6V Input Voltage Range

• Output Voltage as Low as 0.6V

• 100%Duty Cycle in Dropout

• Current Mode Control

• Short Circuit Protection

• Thermal Fault Protection

• <0 .1µA Shutdown Current

• Internally Compensated

• Space Saving 10-Pin QFN Package

Product Applications

• Cellular and Smart Phones

• Microprocessors and DSP Core Supplies

• PDAs

• MP3 Players

• Digital Still and Video Cameras

• Portable Instruments

Product Specification

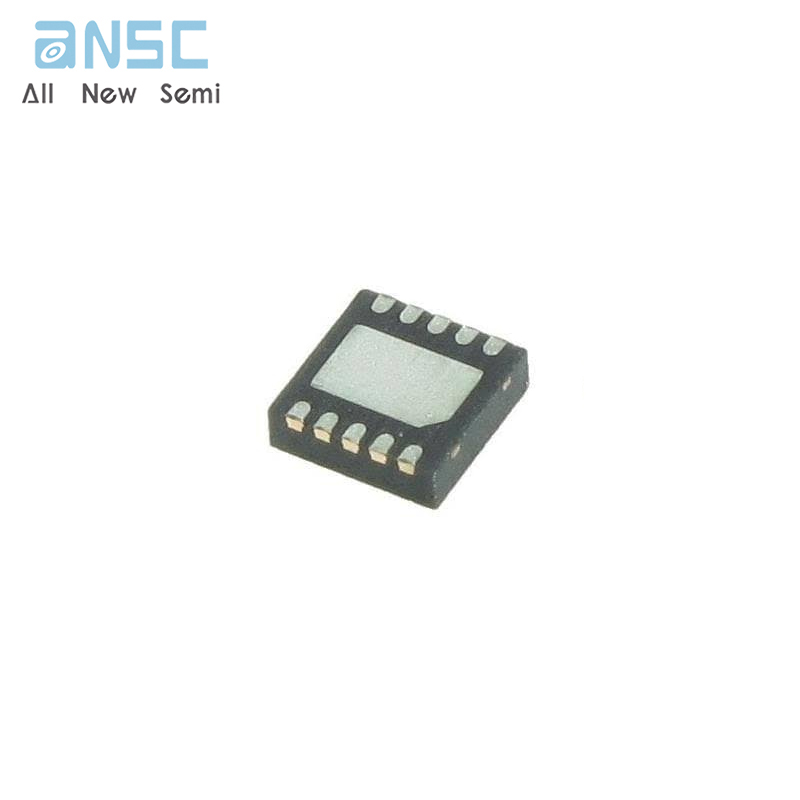

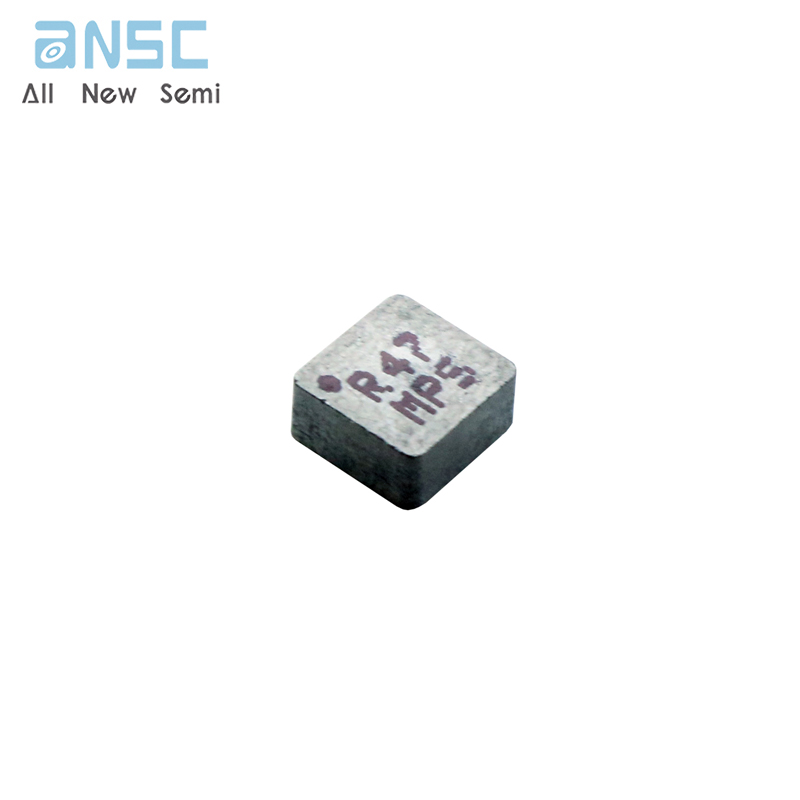

Product Photos

For more product information, please download the PDF
