Hot-selling and scarce AS431ANTR-G1 ADJUSTABLE PRECISION SHUNT REGULATORS IC SOT23-3 spot stock

Product Descriptions

The  AS431  is  a  three-terminal  adjustable  shunt  regulator  withguaranteed thermal stability over a full operation range .  It featuressharp  turn-on  characteristics,  low  temperature  coefficient  and  lowoutput impedance, which make it ideal substitute for Zener diode inapplications  such  as  switching  power  supply,  charger  and  otheradjustable regulators .

The output voltage of AS431 can be set to any value between VREF(2 .5V) and the corresponding maximum cathode voltage (36V).

The AS431 precision reference is offered in two voltage tolerance:0.5% and 1.0%.

This IC is available in 4 packages: TO92 (Ammo Packing), SOT23,SOT25 and SOT89.

Product Features

   Programmable Precise Output Voltage from 2.5V to 36V

   High Stability under Capacitive Load

   Low Temperature Deviation: 4.5mV Typical

   Low    Equivalent    Full-range    Temperature    Coefficient   with 20PPM/°C Typical

   Sink Current Capacity from 1mA to 100mA

   Low Output Noise

   Wide Operating Range of -40 to +125°C

   Lead-Free Packages: SOT23, SOT25, TO92 (Ammo Packing), SOT89

Product Applications

   Charger

   Voltage Adapter

   Switching Power Supply

   Graphic Card

   Precision Voltage Reference

Product Specification

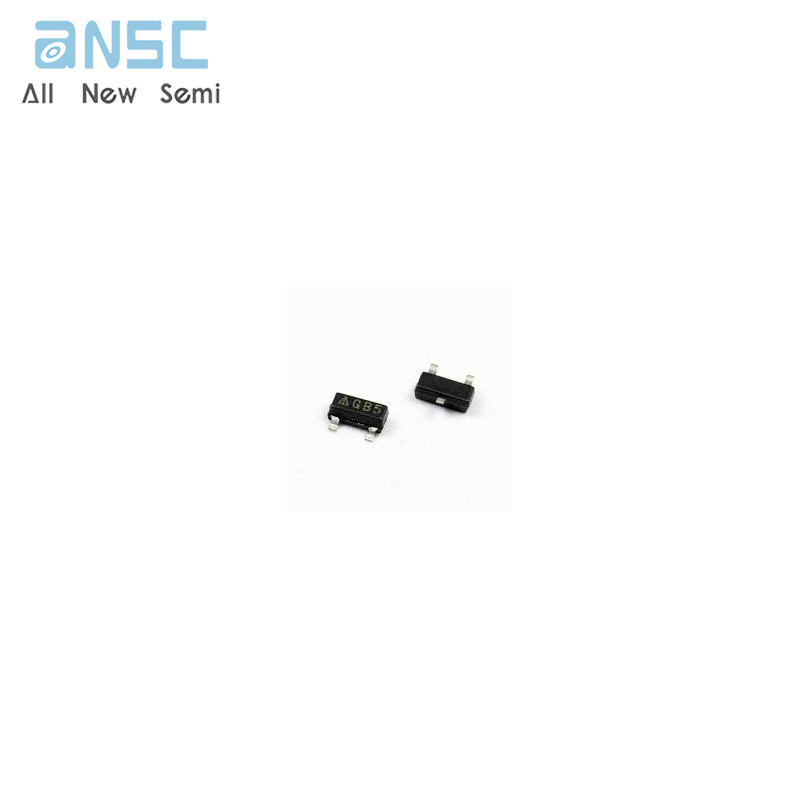

Product Photos

        For more product information, please download the PDF
