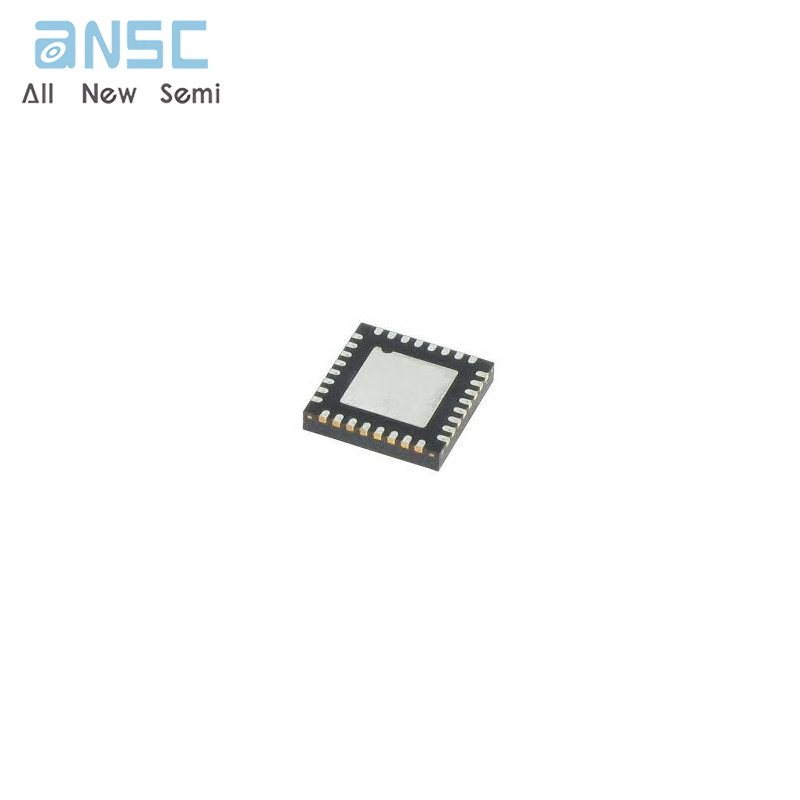

Hot-selling and scarce ZSPM1363BA1R1 True Digital PWM Datasheet Controller QFN spot stock

Product Descriptions

The ZSPM1363  is  a configurable true-digital dualphase PWM controller for high-current, non-isolatedDC/DC supplies . It operates as a synchronous stepdown converter in a single-rail and dual-phase configuration .

The ZSPM1363 integrates a digital control loop, optimized for maximum flexibility and stability, as well asload step and steady-state performance . In addition,a rich set of protection and monitoring functions isprovided . On-chip, non-volatile memory (NVM) andan I²C interface facilitate configuration .

The PC-based IDT Pink Power Designer™ graphicaluser  interface  (GUI)  provides  a  user-friendly  andeasy-to-use  interface  to  the  device  for  communication  and  configuration .   It  can  guide  the  userthroug h the design of the digital compensator andoffers  intuitive configuration  methods for additionalfeatures, including protection and sequencing .

Product Features

• Programmable digital control loop

• Dual-phase , single-rail solution

• Power modes (phase addition/drop)

• Optional PMBus™ address selection without external resistors

• VIN feed-forward

• Advanced, digital control techniques

 Tru-sample Technology™

 State-Law Control™ (SLC)

 Sub-cycle Response™ (SCR)

• Improved transient response and noise immunity

• Discontinuous conduction mode (DCM) and phase dropping at light loads

• Protection features

 Over-current protection

 Over-voltage protection (VIN , VOUT)

 Under-voltage protection (VIN , VOUT)

 Overloaded startup

 Restart and delay

• Fuse-based NVM for improved reliability

• Re-programmable one-time programmable (OTP) memory feature

• VOUT sequencing from external source

• Pin-strapping options : RTUNE and RVSET

• Current balancing between both phases

• Tri-state PWM outputs

• Additional driver support options

• Constant on-time controller (COT) in DCM

Product Specification

Product Photos

For more product information, please download the PDF
