Hot-selling and scarce MIC5209-5.0YM-TR 500 mA Low-Noise LDO Regulator SOP-8 spot stock

Product Descriptions

The MIC5209 is an efficient linear voltage regulatorwith very low dropout voltage, typically 10 mV at lightloads and less than 500 mV at full load,with better than1% output voltage accuracy.

Designed  especially  for  hand-held,  battery-powereddevices, the MIC5209 features low ground current tohelp prolong battery life . An enable/shutdown pin onthe SOIC-8 and DDPAK versions can further improvebattery life with near-zero shutdown current

Key   features   include   reversed-battery   protection,current       limiting,      overtemperature      shutdown,ultra-low-noise    capability    (SOIC-8    and    DDPAKversions),   and   is   available   in   thermally   efficientpackaging . The MIC5209 is available in adjustable orfixed output voltages .

Product Features

•  Output Voltage Range: 1.8V to 15V

•  Meets Intel® Slot 1 and Slot 2 Requirements

•  Guaranteed 500 mA Output Over the Full Operating Temperature Range

•  Low 500 mV Maximum Dropout Voltage at Full Load

•  Extremely Tight Load and Line Regulation

•  Thermally Efficient Surface-Mount Package

•  Low Temperature Coefficient

•  Current and Thermal Limiting

•  Reversed-Battery Protection

•  No-Load Stability

•  1% Output Accuracy

•  Ultra-Low-Noise Capability in SOIC-8 and DDPAK

•  Ultra-Small 3 mm × 3 mm VDFN Package

Product Applications

•  Pentium II Slot 1 and Slot 2 Support Circuits

•  Laptop, Notebook, and Palmtop Computers

•  Cellular Telephones

•  Consumer and Personal Electronics

•  SMPS Post-Regulator and DC/DC Modules

•  High-Efficiency Linear Power Supplies

Product Specification

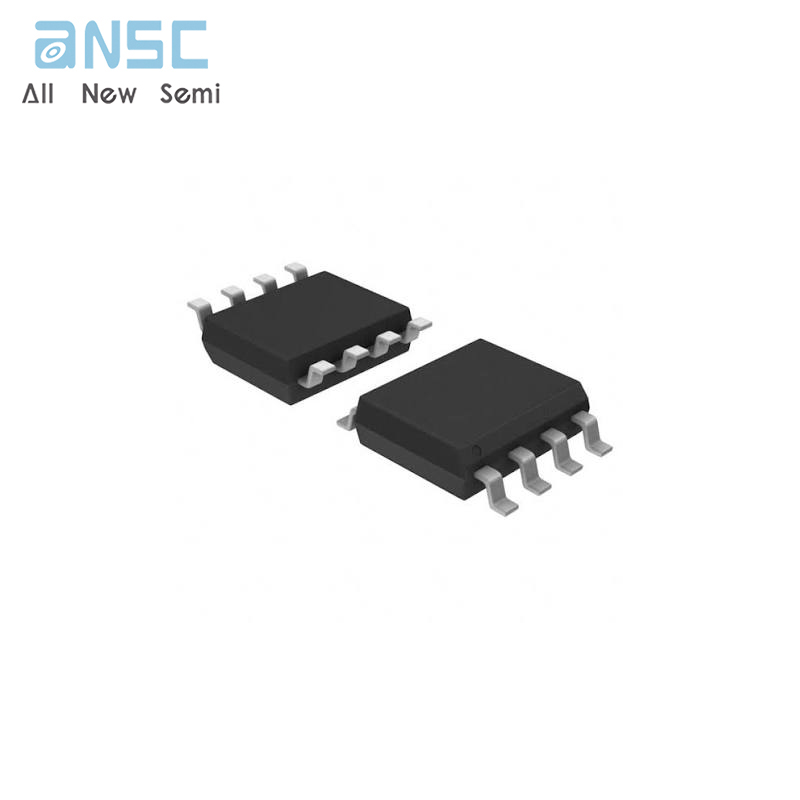

Product Photos

For more product information, please download the PDF
