Hot sale Original IXBT42N300HV Transistors IGBT 3000V 104A TO-268HV IGBT 3000 V 104 A 500 W Surface Mount
Manufacturer Product Number
IXBT42N300HV
Description
IXBT42N300HV Transistors IGBT 3000V 104A TO-268HV IGBT 3000 V 104 A 500 W Surface Mount TO-268HV (IXBT)
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
Features
• High Voltage Package
• High Blocking Voltage
• High Peak Current Capability
• Low Saturation Voltage
• FBSOA
• SCSOA
Advantages
• Low Gate Drive Requirement
• High Power Density
Applications
• Laser Generators
• Capacitor Discharge Circuits
• AC Switches
• Protection Circuits
Product Description
|
Type |
Description |
|---|---|
|
ANSC PART# |
ANSC - IXBT42N300HV |
|
Category |
Discrete Semiconductor Products Transistors IGBTs Single IGBTs |
|
Manufacturer |
/ |
|
Series |
BIMOSFET™ |
|
Packaging |
Tube |
|
Part Status |
Active |
|
IGBT Type |
- |
|
Voltage - Collector Emitter Breakdown (Max) |
3000 V |
|
Current - Collector (Ic) (Max) |
104 A |
|
Current - Collector Pulsed (Icm) |
400 A |
|
Vce(on) (Max) @ Vge, Ic |
3V @ 15V, 42A |
|
Power - Max |
500 W |
|
Switching Energy |
- |
|
Input Type |
Standard |
|
Gate Charge |
200 nC |
|
Td (on/off) @ 25°C |
72ns/445ns |
|
Test Condition |
1500V, 42A, 20Ohm, 15V |
|
Reverse Recovery Time (trr) |
1.7 µs |
|
Operating Temperature |
-55°C ~ 150°C (TJ) |
|
Mounting Type |
Surface Mount |
|
Package / Case |
TO-268-3, D3PAK (2 Leads + Tab), TO-268AA |
|
Supplier Device Package |
TO-268HV (IXBT) |
|
Base Product Number |
IXBT42 |

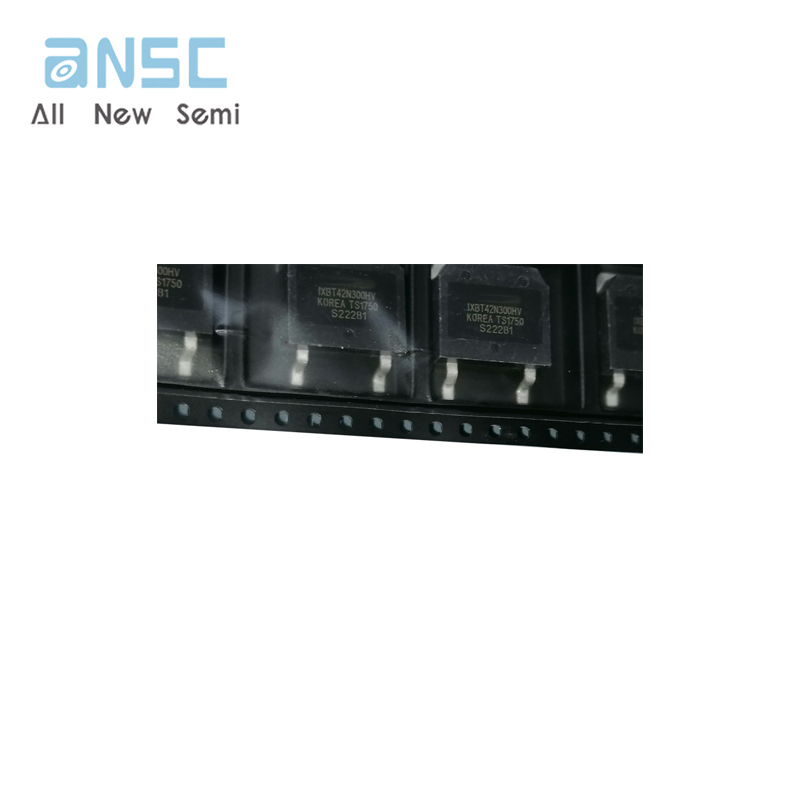

Actual image of the product

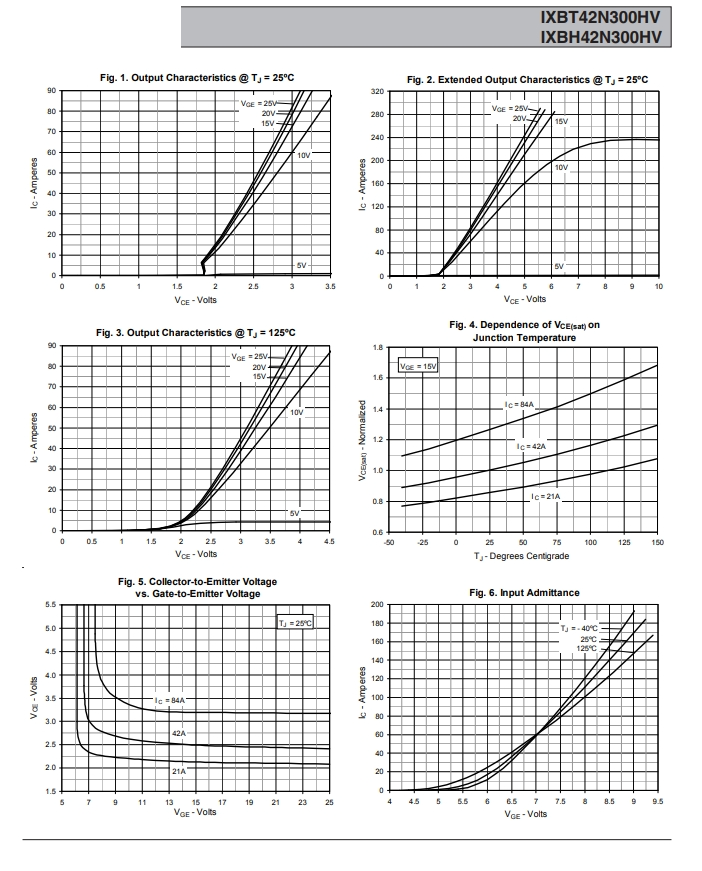

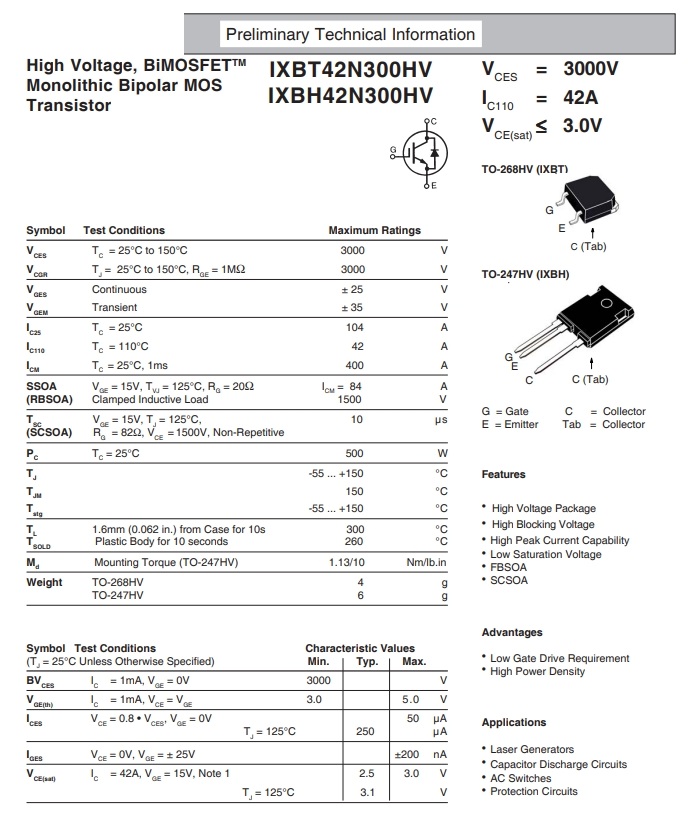

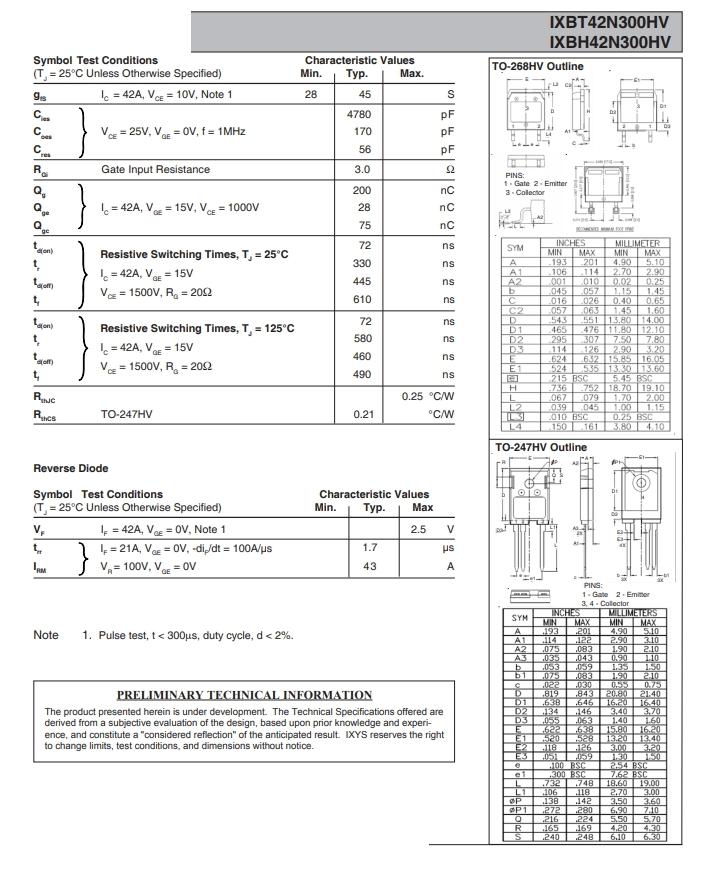

Product datasheet
For more information, please download
