BOM distribution service electronic components Switching Power Transistor(6A NPN) 2SC4236
Manufacturer Product Number
2SC4236
Description
2SC4236 Power Bipolar Transistor, 6A I(C), 800V V(BR)CEO, 1-Element
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
| Type | Description |
| ANSC PART# | ANSC-2SC4236 |
| Ihs Manufacturer | Original |
| Part Package Code | TO-3P |
| Package Description | FLANGE MOUNT, R-PSFM-T3 |
| Pin Count | 3 |
| Case Connection | COLLECTOR |
| Collector Current-Max (IC) | 6 A |
| Collector-Emitter Voltage-Max | 800 V |
| Configuration | SINGLE |
| DC Current Gain-Min (hFE) | 8 |
| Moisture Sensitivity Level | 2 |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| Operating Temperature-Max | 150 °C |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT |
| Peak Reflow Temperature (Cel) | 240 |
| Polarity/Channel Type | NPN |
| Power Dissipation Ambient-Max | 100 W |
| Power Dissipation-Max (Abs) | 100 W |
| Qualification Status | Not Qualified |
| Surface Mount | NO |
| Terminal Finish | TIN LEAD |
| Terminal Form | THROUGH-HOLE |
| Terminal Position | SINGLE |
| Transistor Application | SWITCHING |
| Transistor Element Material | SILICON |
| Transition Frequency-Nom (fT) | 8 MHz |
| Turn-off Time-Max (toff) | 3800 ns |
| Turn-on Time-Max (ton) | 500 ns |
| VCEsat-Max | 1 V |

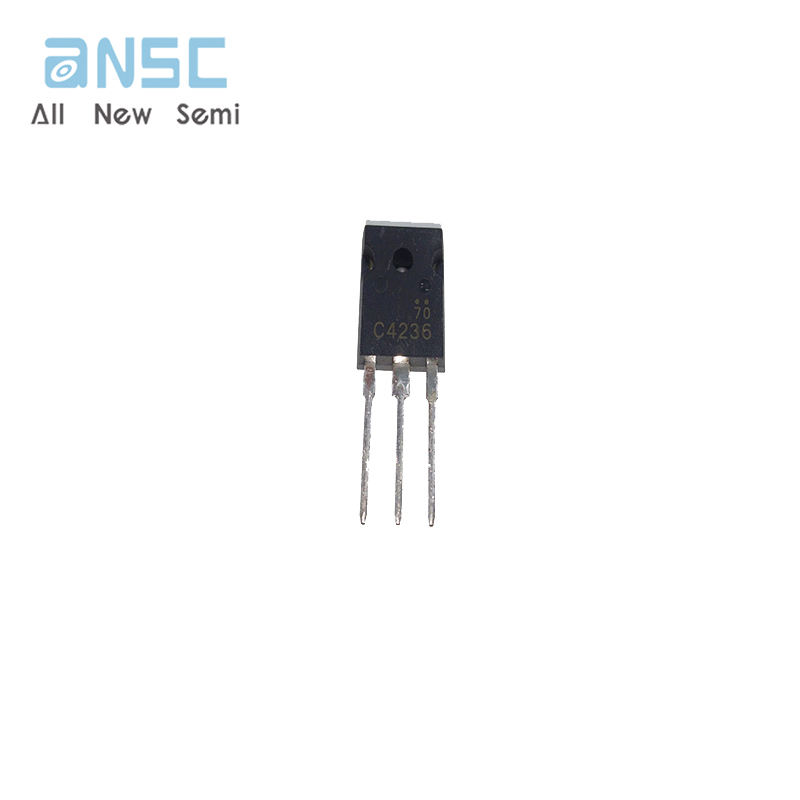

Product Photos

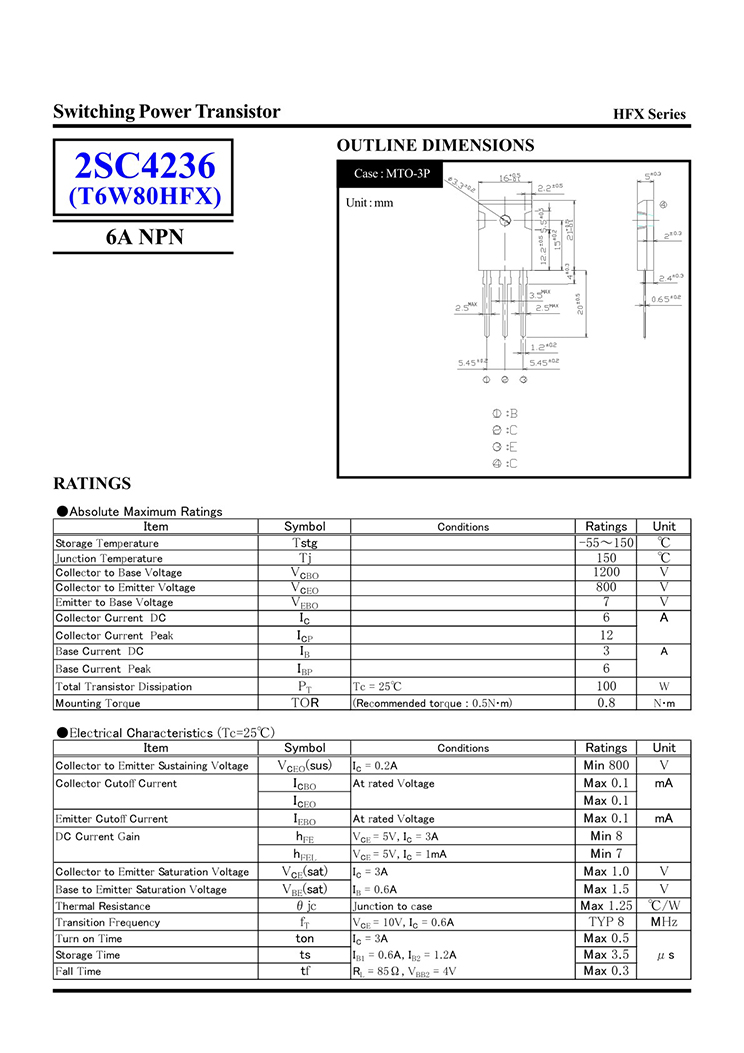

Product datasheet
For more information, please download
