You can contact me for the best price Original TLP187 Optocoupler - Transistor Output, DARLINGTON OUTPUT OPTOCOUPLER
Manufacturer Product Number
TLP187
Description
TLP187 Photocouplers Infrared LED & Photo Transistor
Package Condition
Original
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

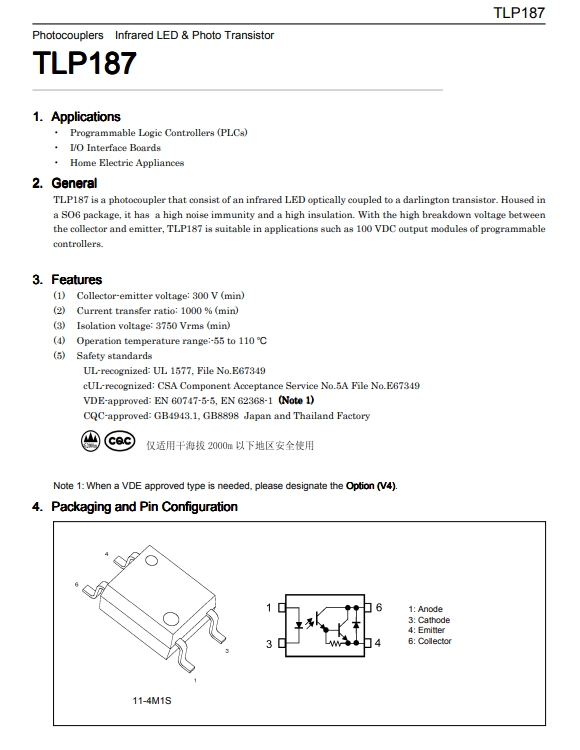

Applications
• Programmable Logic Controllers (PLCs)
• I/O Interface Boards
• Home Electric Appliances
Features
(1) Collector-emitter voltage: 300 V (min)
(2) Current transfer ratio: 1000 % (min)
(3) Isolation voltage: 3750 Vrms (min)
(4) Operation temperature range:-55 to 110
(5) Safety standards
UL-recognized: UL 1577, File No.E67349
cUL-recognized: CSA Component Acceptance Service No.5A File No.E67349
VDE-approved: EN 60747-5-5, EN 62368-1 (Note 1)
CQC-approved: GB4943.1, GB8898 Japan and Thailand Factory
Product Description
| Type# | Description |
| Part# | TLP187 |
| Package Description | SO-6, 4 PIN |
| Samacsys Manufacturer | / |
| Additional Feature | UL RECOGNIZED |
| Coll-Emtr Bkdn Voltage-Min | 300 V |
| Configuration | SINGLE WITH BUILT-IN DIODE AND RESISTOR |
| Current Transfer Ratio-Min | 1000% |
| Current Transfer Ratio-Nom | 4000% |
| Dark Current-Max | 200 nA |
| Forward Current-Max | 0.05 A |
| Forward Voltage-Max | 1.4 V |
| Isolation Voltage-Max | 3750 V |
| Mounting Feature | SURFACE MOUNT |
| Number of Elements | 1 |
| On-State Current-Max | 0.15 A |
| Operating Temperature-Max | 110 °C |
| Operating Temperature-Min | -55 °C |
| Optoelectronic Device Type | DARLINGTON OUTPUT OPTOCOUPLER |
| Power Dissipation-Max | 0.15 W |
| Surface Mount | YES |
Actual image of the product

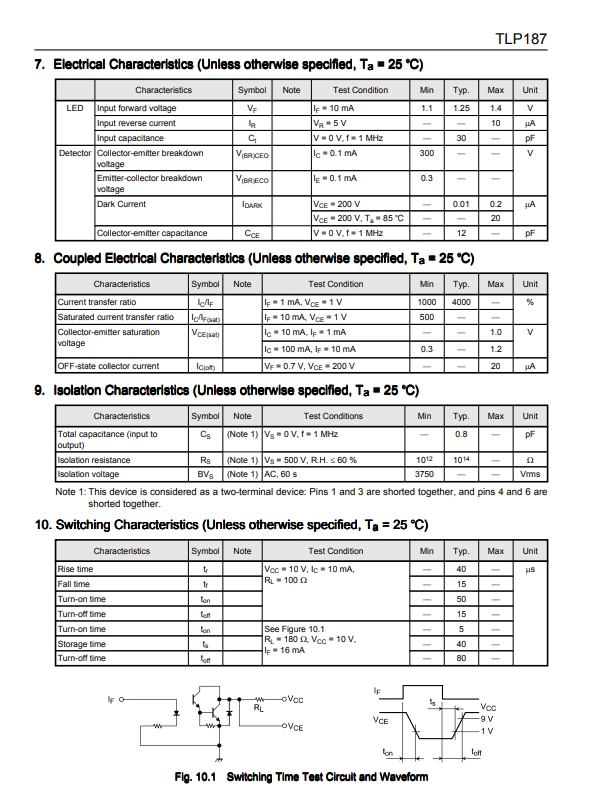

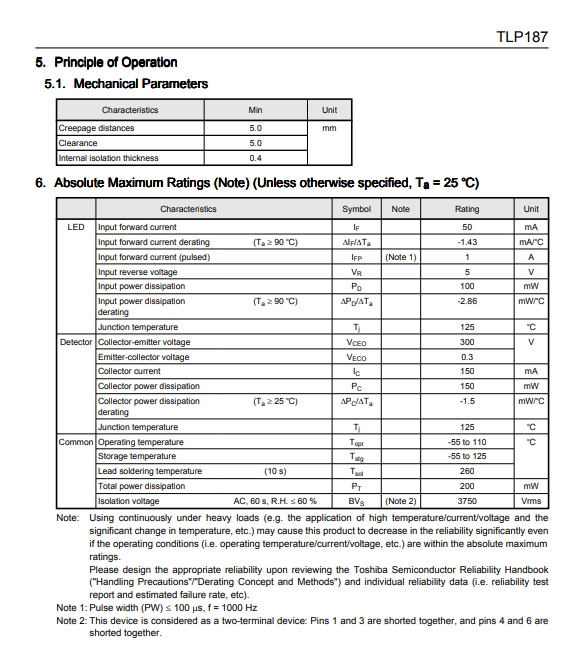

Product datasheet
For more information, please download
