Product Details
Description
The STP80NF70 is a N-channel Power MOSFET realized with unique STripFET™ process. It has specifically been designed to minimize input capacitance and gate charge.
The device is therefore suitable in advanced high-efficiency switching applications.
Features
■ Exceptional dv/dt capability
■ 100% avalanche tested
Application
■ Switching applications
Product Description
|
Type |
Description |
|---|---|
|
Category |
Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs |
|
Mfr |
- |
|
Series |
STripFET™ II |
|
Packaging |
Tube |
|
Part Status |
Not For New Designs |
|
FET Type |
N-Channel |
|
Technology |
MOSFET (Metal Oxide) |
|
Drain to Source Voltage (Vdss) |
68 V |
|
Current - Continuous Drain (Id) @ 25°C |
98A (Tc) |
|
Drive Voltage (Max Rds On, Min Rds On) |
10V |
|
Rds On (Max) @ Id, Vgs |
9.8mOhm @ 40A, 10V |
|
Vgs(th) (Max) @ Id |
4V @ 250µA |
|
Gate Charge (Qg) (Max) @ Vgs |
75 nC @ 10 V |
|
Vgs (Max) |
±20V |
|
Input Capacitance (Ciss) (Max) @ Vds |
2550 pF @ 25 V |
|
FET Feature |
- |
|
Power Dissipation (Max) |
190W (Tc) |
|
Operating Temperature |
-55°C ~ 175°C (TJ) |
|
Grade |
- |
|
Qualification |
- |
|
Mounting Type |
Through Hole |
|
Supplier Device Package |
TO-220 |
|
Package / Case |
TO-220-3 |
|
Base Product Number |
STP80 |

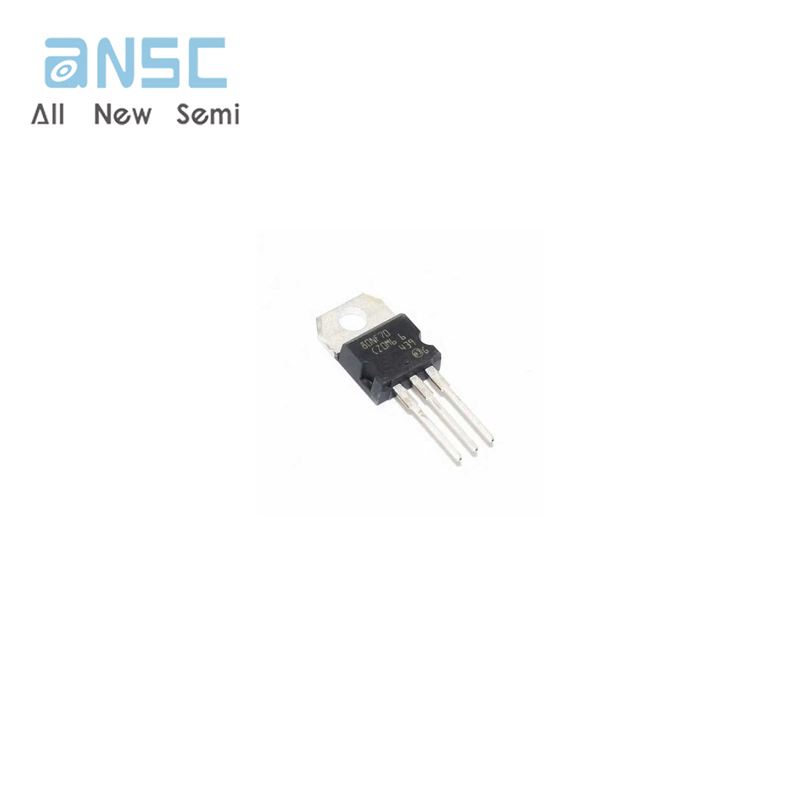

Actual image of the product
Product datasheet
