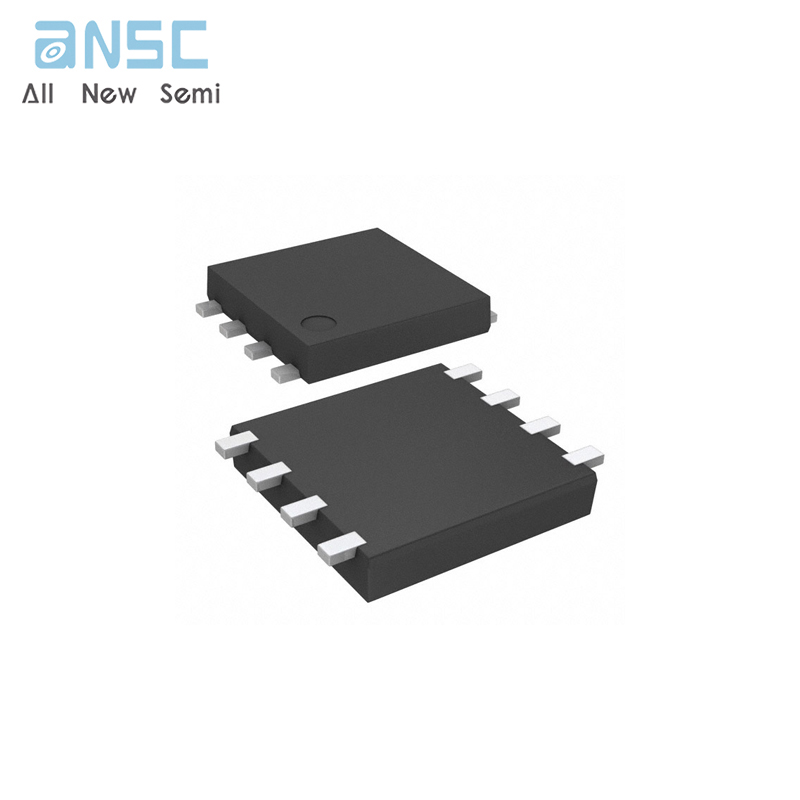

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce ECH8660-TL-H 30V 4.5A 59mΩ –30V –4.5A 59mΩ Complementary Dual ECH8 spot stock
Manufacturer Product Number
ECH8660-TL-H
Description
ECH8660-TL-H 30V 4.5A 59mΩ –30V –4.5A 59mΩ Complementary Dual ECH8 spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
The ECH8660 incorporates an N-channel MOSFET and a P-channel MOSFET that feature low ON-resistance and high-speed switching, thereby enablimg high-density mounting
4V drive
Halogen free compliance
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-ECH8660-TL-H |
| Category | Discrete Semiconductor |
| Products | |
| Transistors | |
| FETs, MOSFETs | |
| FET, MOSFET Arrays | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Technology | MOSFET (Metal Oxide) |
| Configuration | N and P-Channel |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25℃ | 4.5A |
| Rds On (Max) @ Id, Vgs | 59mOhm @ 2A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 4.4nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 240pF @ 10V |
| Power - Max | 1.5W |
| Operating Temperature | 150℃ (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, Flat Leads |
| Supplier Device Package | 8-ECH |
| Base Product Number | ECH8660 |
Product Photos
For more product information, please download the PDF
