Hot-selling and scarce CLF6045NIT-3R3N-D Inductors for Power Circuits Wound Ferrite SMD spot stock
Manufacturer Product Number
CLF6045NIT-3R3N-D
Description
CLF6045NIT-3R3N-D Inductors for Power Circuits Wound Ferrite SMD spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
Magnetic shield type wound inductor for power circuits .
It can be used at a wide temperature range .–55 to +150°C (including self-temperature rise)
1 to 470µH,wide E-6 series lineup allows for various usages .
Operating temperature range: –55 to +150°C (including self-temperature rise)
Compliant with AEC-Q200
Product Applications
Automotive-related equipment (ECM, airbags, headlights, electronic power steering, meters,ABS, other)
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-CLF6045NIT-3R3N-D |
| Category | Inductors, Coils, Chokes |
| Fixed Inductors | |
| Mfr | - |
| Series | CLF-NI-D |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 3.3 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 3.5 A |
| Current - Saturation (Isat) | 3.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 25mOhm Max |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.248" L x 0.236" W (6.30mm x 6.00mm) |
| Height - Seated (Max) | 0.189" (4.80mm) |

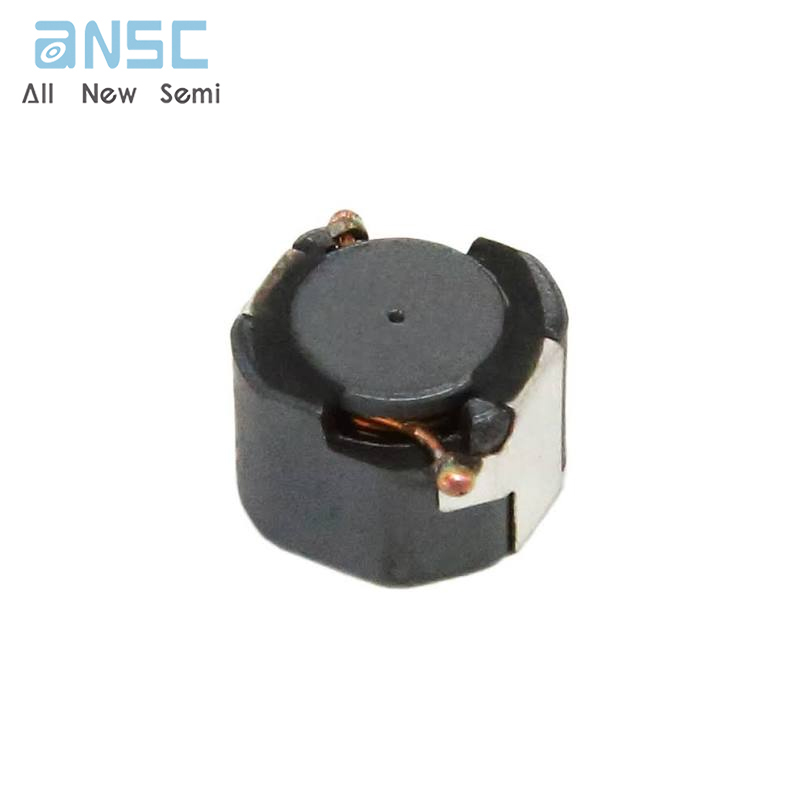

Product Photos
For more product information, please download the PDF
