Hot-selling and scarce CD74ACT00M QUADRUPLE 2-INPUT POSITIVE-NAND GATES SOP14 spot stock
Manufacturer Product Number
CD74ACT00M
Description
CD74ACT00M QUADRUPLE 2-INPUT POSITIVE-NAND GATES SOP14 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The ‘ACT00 devices contain four independent 2-input NAND gates. Each gate performs the Boolean function of Y = A B or Y = A + B in positive logic.
Product Features
Inputs Are TTL-Voltage Compatible
Speed of Bipolar F, AS, and S, With Significantly Reduced Power Consumption
Balanced Propagation Delays
±24-mA Output Drive Current
– Fanout to 15 F Devices
SCR-Latchup-Resistant CMOS Process and Circuit Design
Exceeds 2-kV ESD Protection Per MIL-STD-883, Method 3015
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-CD74ACT00M |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | - |
| Series | 74ACT |
| Packaging | Tube |
| Part Status | Obsolete |
| Logic Type | NAND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 4 uA |
| Current - Output High, Low | 24mA, 24mA |
| Input Logic Level - Low | 0.8V |
| Input Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 13.2ns @ 5V, 50pF |
| Operating Temperature | -55℃ ~ 125℃ |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOIC |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Base Product Number | 74ACT00 |

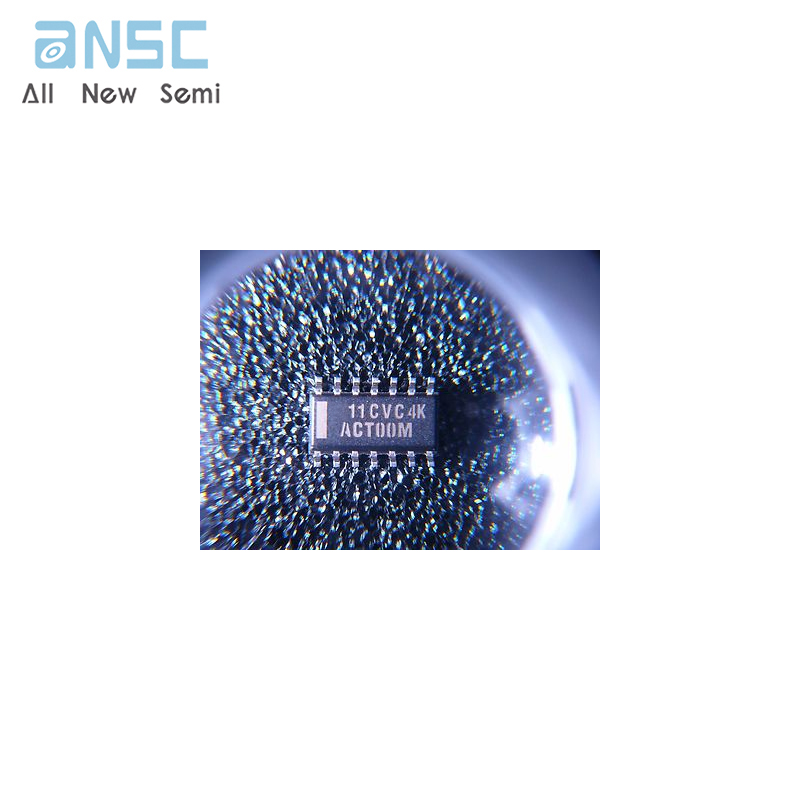

Product Photos
For more product information, please download the PDF
Other Products In The same category:
CD74ACT00M QUADRUPLE 2-INPUT POSITIVE-NAND GATES SOP14 spot stock
10In stock:
Can ship immediately
