Hot-selling and scarce M24C64-WMN6TP 64-Kbit serial I²C bus EEPROMs SOP8 spot stock

Product Descriptions

The M24C64 is a 64-Kbit I2 C-compatible EEPROM (electrically erasable programmable memory) organized as8K × 8 bits.

​Over an ambient temperature range of -40 °C / +85 °C, the M24C64-W can operate with a supply voltage from 2.5 V to 5.5 V, the M24C64-R can operate with a supply voltage from 1.8 V to 5.5 V, and the M24C64-F and M24C64-DF can operate with a supply voltage from 1.7 V to 5.5 V ( the M24C64-F can also operate down to 1.6 V, under some restricting conditions).

The M24C64-D offers an additional page, named the identification page (32 byte). The identification page can be used to store sensitive application parameters which can be (later) permanently locked in read-only mode.

Product Features

•        Compatible with following I2 C bus modes:

–        1 MHz

–        400 kHz

–        100 kHz

•        Memory array:

–        64 Kbit (8 Kbyte) of EEPROM

–        Page size: 32 byte

–        Additional Write lockable page (M24C64-D order codes)

•        Single supply voltage:

–        1.7 V to 5.5 V over –40 °C / +85 °C

–        1.6 V to 5.5 V over 0 °C / +85 °C

•        Write:

–        Byte write within 5 ms

–        Page write within 5 ms

•        Random and sequential read modes

•        Write protect of the whole memory array

•        Enhanced ESD/latch-Up protection

•        More than 4 million write cycles

•        More than 200-years data retention

Product Specification

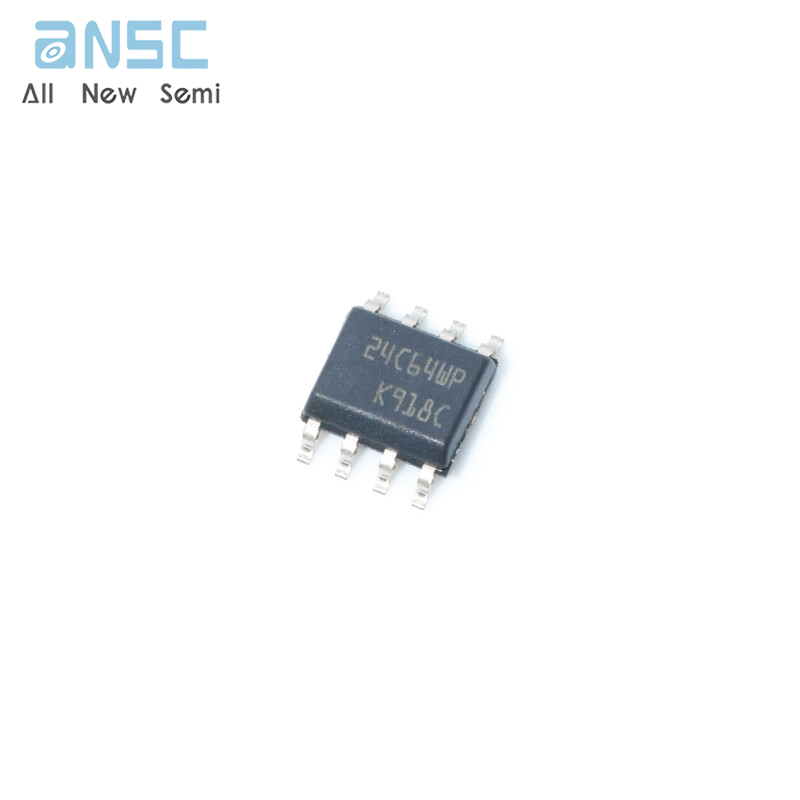

Product Photos

For more product information, please download the PDF
