FM module Radio module RDA5807M RRD102V2.0 Stereo radio module

Product Description

RDA5807M Stereo Radio Module

"RRD-102V2.0" stereo radio module (FMStereo radio Module) is a high-sensitivity, low-power, small-volume FM stereo radio module. Adopting RDA5807M (or RDA5802NM), this circuit has few peripheral components and extremely low noise coefficient. It has the advantages of small size, low power consumption, low cost, simple application, and wide range of use. It is a single-chip FM stereo radio module that is easy to use and has a very high cost-effectiveness.

Product Features

A. It adopts the universal 102BC module package, which can be directly replaced by users without changing the circuit design.

B. High sensitivity, low noise, strong anti-interference ability, few external components, small size (11*11.2MMMax), and extremely simple to use.

C. 76-108MHz global FM band compatible (including Japan 76-91MHz and Europe and the United States 87.5-108.5MHz).

D. I2C serial data bus interface communication, supporting external reference clock input mode.

E. Fully integrated COMS process single-chip integrated circuit, with extremely low power consumption.

F. Built-in high-precision A/D (analog-to-digital converter) and digital frequency synthesizer.

G. Built-in LDO adjustment, low power consumption, ultra-wide voltage range (2.7-3.6VDC).

H. Built-in noise elimination, soft mute, bass enhancement circuit design.

I. High-power 32Q load audio output, direct headphone connection, no external audio driver amplification required.

J. Easy to use, low cost, and high cost performance.

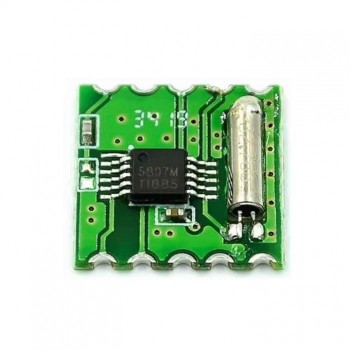

 Actual image of the product
