Hot-selling and scarce MP1567DK-Z 1.2A, 6V, 800KHz Synchronous Rectified Step-Down Converter MSOP10

Product Descriptions

The MP1567 is a 1.2A, 800KHz DC to DC converter designed for low voltage applications requiring high efficiency. Capable of providing output voltages as low as 0.9V from a 3.3V supply voltage, the MP1567 eliminates the need for a 5V rail, providing over 90 PERCENT efficiency via synchronous rectification and eliminating heat issues in confined spaces. Soft-start operation protects internal circuitry from hard turn on issues. Switching at 800KHz reduces the size of external components and thereby reduces board space.

The MP1567 includes cycle-by-cycle current limiting and under voltage lockout. Internal power switches combined with the tiny 10-pin MSOP or QFN packages provide a solution requiring a minimum of space.

Product Features

• 1.2A Output Current

• Synchronous Rectified

• Internal 180mΩ and 220mΩ Power Switches

• VIN Range of 2.6V to 6V

• Over 90 PERCENT Efficiency

• Zero Current Shutdown Mode

• Under Voltage Lockout Protection

• Soft-Start Operation

• Thermal Shutdown

• Internal Current Limit (Source & Sink)

• Tiny 10-Pin MSOP Package

Product Applications

• SOHO Routers, PCMCIA Cards, Mini PCI

• Handheld Computers, PDAs

• Cell Phones

• Digital Video Cameras

• Small LCD Displays

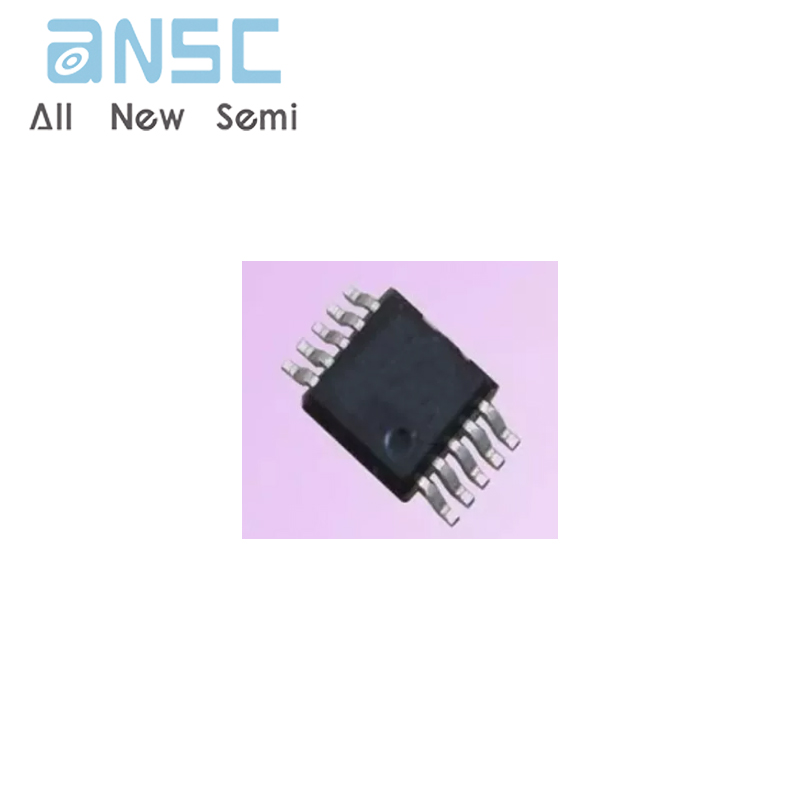

Product Photos

For more product information, please download the PDF
